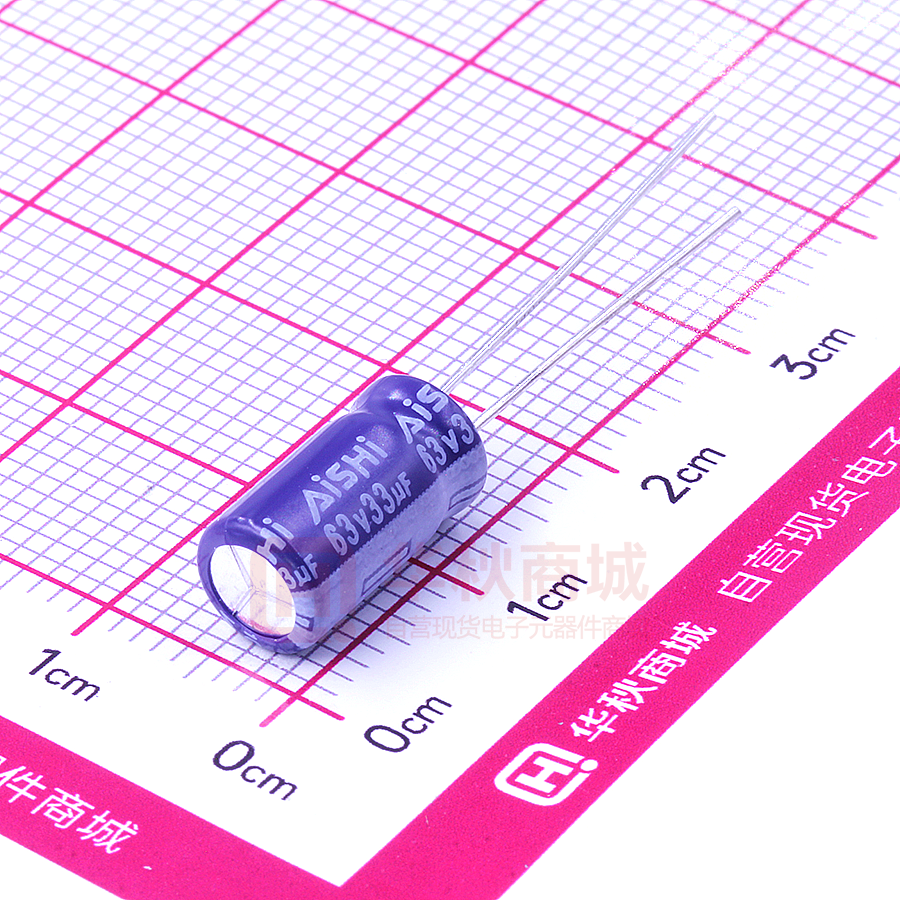

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
RS series
High performance, high reliability
Low impedance, high ripple current, long life
RS 105 C
1808
Endurance:+105°C 4,000~10,000 hours
RoHS Compliant
SPECIFICATIONS
Items
Characteristics
Category Temperature Range
-40~+105°C
Rated Voltage Range
6.3~120 V dc
Capacitance Tolerance
±20%(M)
Leakage Current
I≤0.01CV or 3μA, whichever is greater.
Where, I:Max.leakage current (μA),C:Nominal capacitance (μF),V: Rated voltage (V)
(at 20°C,120Hz)
Rated Voltage(V dc )
Dissipation Factor (tanδ)
6.3
10
16
25
35
0.22 0.19 0.16 0.14 0.12
tanδ (max.)
(at 20°C after 2 minutes)
50
63
80
100
120
0.10
0.09
0.08
0.08
0.12
When nominal capacitance exceeds 1,000μF, add 0.02 to the value above for each 1,000μF increase. (at 20°C,120Hz)
Low Temperature
Characteristics
(Max. Impedance Ratio)
6.3
10
Z(-25°C)/Z(+20°C)
4
3
Z(-40°C)/Z(+20°C)
8
6
Rated Voltage(V dc )
16
25
35
50
4
63
80
100
120
2
3
3
6
(at 120Hz)
The specifications listed below shall be met when the capacitors are restored to 20°C after DC voltage plus rated ripple
current is applied for a specified period of time at 105 °C.
Load life (hours)
Dia.(mm)
16~120V
6.3~10V
Capacitance Change
≤±20% of the initial value (6.3,10V:≤±30%)
ØD≤6.3
4,000
5,000
D.F. (tanδ)
≤200% of the initial specified value
ØD=8&10
6,000
7,000
Leakage Current
≤The initial specified value
ØD≥12.5
8,000
10,000
Endurance
The following specifications shall be satisfied when the capacitors are restored to 20°C after leaving them under no load
at 105°C for 1,000 hours.
Shelf Life
Capacitance Change
≤±20% of the initial value (6.3,10V:≤±30%)
D.F. (tanδ)
≤200% of the initial specified value
Leakage Current
≤200% of the initial specified value
DIMENSIONS[mm]
Sleeve(Violet)
Ød
ØD'
F±0.5
L'
4min.
15min.
( Ø 5~ Ø 18)
ØD
5
6.3
Ød
F
ØD'
L'
0.5
0.5
2.0
2.5
8
0.5
0.6
3.5
10
12.5
16
18
0.6
0.6
0.8
0.8
5.0
5.0
7.5
7.5
Ø D+0.5max.
L+2max.
PART NUMBERING SYSTEM
E
RS 1H
M 220 D12 O- -
T
Sleeve Code: “C” for PVC, “T” for PET
Terminal code
Size code
Capacitance code
Capacitance tolerance code
Voltage code
Series code
Category code
RATED RIPPLE CURRENT MULTIPLIERS
Frequency correction factor for ripple current
Freq.(Hz)
Cap.(μF)
120
1k
10k
100k
Cap.
