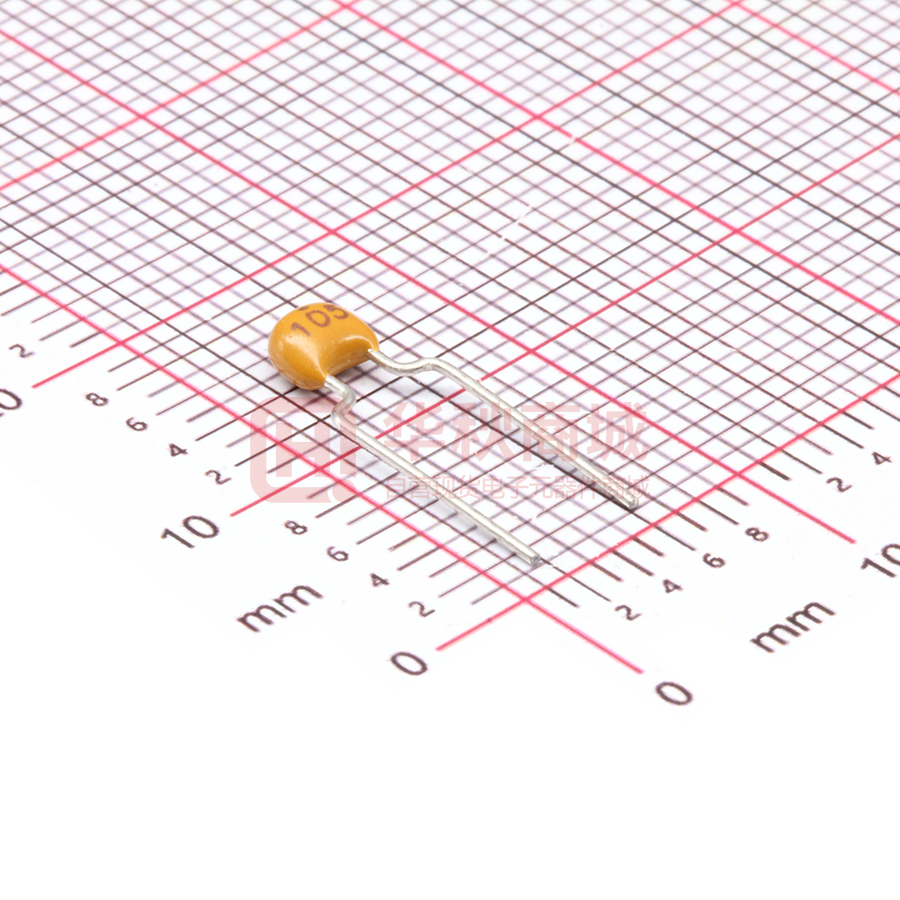

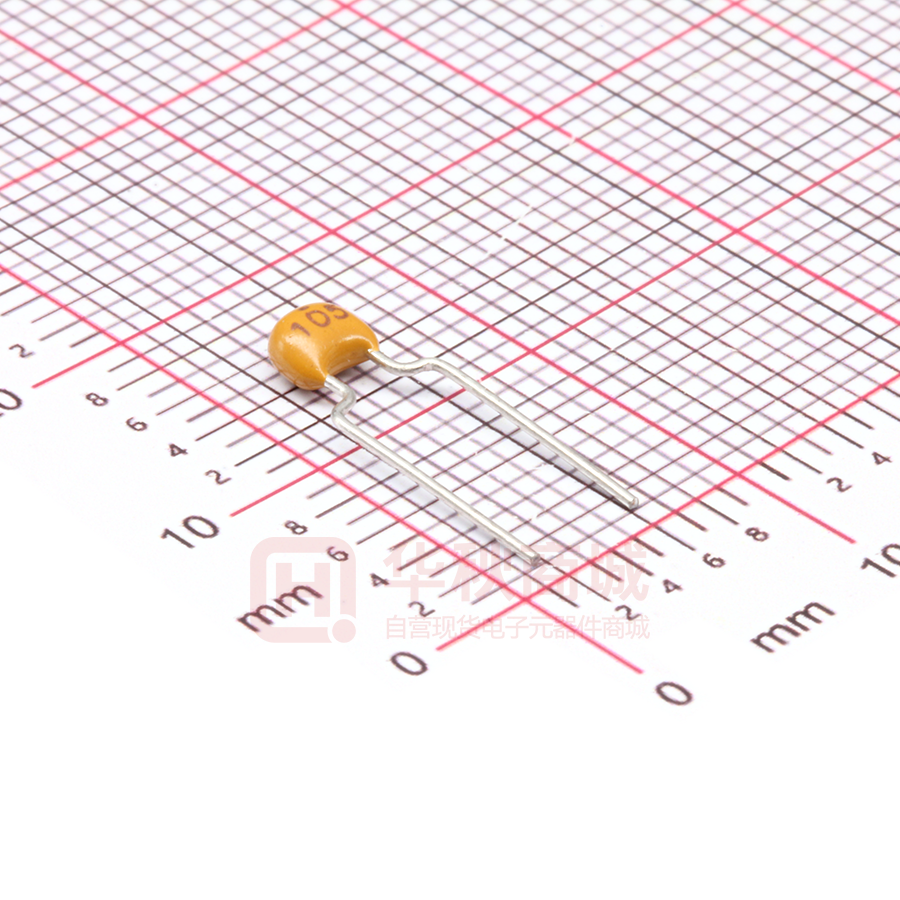

Leaded MLCC for General Purpose
Leaded MLCC for General Purpose Data Sheet
Feature
■Small size and large capacitance
■Low ESR characteristics for high frequency
■Meet LF (Lead Free) and HF (Halogen Free)
■Epoxy resin coating
Applications
■General electronic equipment
Revision: 2019-07-30
1
Email: info@songtian.cn
Website: http://www.songtian-ste.com
Leaded MLCC for General Purpose
Part Number Code
05
B
Dimensions
05:0805
06:1206
10:1210
12:1812
25:2225
103
K
Capacitance
4R7:4.7pF
220:22pF
471:470pF
472:4700pF
104:0.1uF
105:1.0uF
Temperature
Characteristic
N: NP0
C: COG
B: X7R
Y: Y5V
500
B
C1
Pitch
F1:2.54mm
F2:4.75mm
F3:5.08mm
F4:7.5mm
F5:3.5mm
Rated Voltage
160:16V
250:25V
101:100V
251:250V
Capacitance
Tolerance
C: ±0.25pF
D: ±0.5pF
F: ±1.0pF
G: ±2%
J: ±5%
K: ±10%
M: ±20%
F3
Packaging
B: Bulk
T: Tape & Reel packaging
P: Ammo Packaging
A5
R
Environmental Standard
R: RoHS
F:RoHS+Halogen-Free
Lead Lenght
A5: 3.5mm
N0:16.5±0.5mm
(C1/C2 For Taping)
Q0: 20.0±0.5mm(B1 For Taping)
Lead Style
B1: Straight Long
C1: Outside Crimp
C2: Inside Crimp
Revision: 2019-07-30
2
Email: info@songtian.cn
Website: http://www.songtian-ste.com
Leaded MLCC for General Purpose
Specifications
Reference Standard
GB/T 5966
Operating Temperature Range
-55~125℃
Class 1:
C≤1000pF,1MHZ±10%,1.0V
C>1000pF,1KHZ±10%,1.0V
CR≥50PF,DF≤0.15%
CR0.1uF )
DF≤15% ( CR≥1uF)
25V、50V、100V、250V
Capacitance(C) and
Dissipation Factor(tg δ)
Rated Voltage
Withstand Voltage
Insulation Resistance
Temperature Characteristic
Class1 300% Withstand Voltage
Class2 250% Withstand Voltage
The charge/discharge current is less than 50mA
Rated Voltage,60±5sec
Class1:C≤10nF,IR≥10000MΩ
C>10nF,IR≥100MΩ.uF
Class2:C≤25nF,IR≥4000MΩ
C>25nF,IR≥100MΩ.uF
COG(NP0)、X7R、Y5V
Dimension、Voltage and Capacitance
Revision: 2019-07-30
3
Email: info@songtian.cn
Website: http://www.songtian-ste.com
Leaded MLCC for General Purpose
Dimensions (Unit: mm)
Dimension
F
±0.5
H
±1
L
max
W
max
T
max
Фd
±0.05
0805
2.54
5.08
5.08
10
5.0/
10.0
5
4.2
3.8
3.8
0.45
0.50
1206
3.50
5.08
3.8
0.45
0.50
1210/1209
1812
2225
3.50
5.08
4.57
5.50
Revision: 2019-07-30
10
10
10
10
5.5
5.5
8.5
10.5
4.5
5.5
6.5
9.5
0.45
0.50
3.8
0.45
0.50
3.8
0.45
0.50
4.2
4
Rated
voltage
Available Capacitance Range
N
B
Y
COG(NPO)
X7R
Y5V
25V
50V
100V
0R5-272
0R5-222
05R-102
101-105
101-105
101-104
102-125
102-105
---
25V
0R5-562
101-225
102-125
50V
0R5-472
101-105
102-105
100V
0R5-332
101-154
---
25V
100-103
471-105
472-155
50V
100-103
471-105
472-205
100V
5R0-103
101-105
---
25V
100-153
471-335
103-335
50V
100-103
471-225
103-225
100V
5R0-103
101-105
---
25V
100-473
102-475
103-475
50V
100-273
102-335
103-335
100V
5R0-273
101-105
---
Email: info@songtian.cn
Website: http://www.songtian-ste.com
Leaded MLCC for General Purpose
Taping And Dimensions (mm)
Note: P1=3.85mm for F=5.08mm; P1=5.1mm for F=2.54mm
Code
P
P0
Dim
12.7
12.7
TOL
士 1.0
士 0.2
Revision: 2019-07-30
P1
3.85
5.1
士
0.7
P2
Φd
△h
W
W0
6.35
0.5
0
18.5
士
1.3
士
0.1
士
1.0
士
1.0
8
10
士
1.0
5
W1
W2
H
H0
I
ΦD0
t
9
1.5
32.25
15-20
1.42
4.0
0.7
士
0.5
士
1.5
Max
士 0.5
Max
士 0.2
Max
Email: info@songtian.cn
Website: http://www.songtian-ste.com
