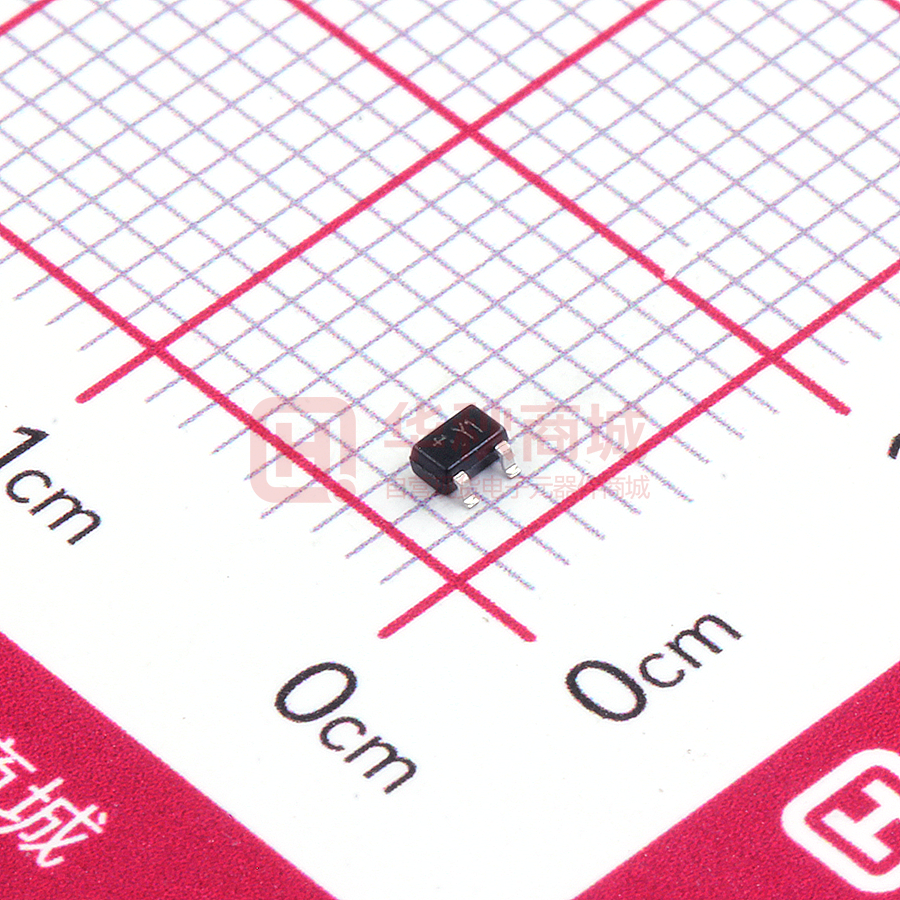

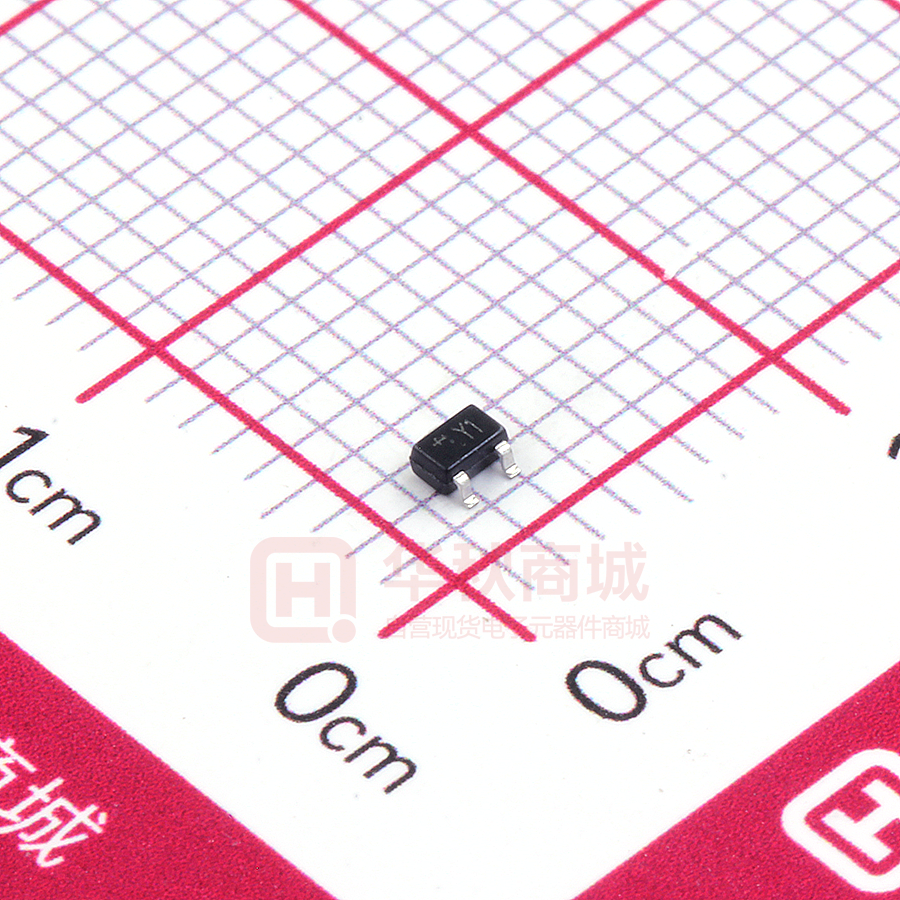

MMBT8050CW(1.5A)

MMBT8050W (1.5A) NPN Silicon Epitaxial Planar Transistor for switching and amplifier applications Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Unit Collector Base Voltage VCBO 40 V Collector Emitter Voltage VCEO 25 V Emitter Base Voltage VEBO 5 V 1.5 A 200 mW Peak Collector Current ICM Total Power Dissipation Ptot Junction Temperature Tj Storage Temperature Range Characteristics at Ta = 25 OC Parameter M E DC Current Gain at VCE = 1 V, IC = 100 mA MMBT8050CW MMBT8050DW at VCE = 1 V, IC = 800 mA Collector Base Voltage at IC = 100 µA Collector Emitter Voltage at IC = 100 µA Emitter Base Voltage at IE = 100 µA Collector Base Cutoff Current at VCB = 40 V Collector Emitter Cutoff Current at VCE = 20 V Emitter Base Cutoff Current at VEB = 5 V Collector Emitter Saturation Voltage at IC = 800 mA, IB = 80 mA Base Emitter Saturation Voltage at IC = 800 mA, IB = 80 mA Transition Frequency at VCE = 10 V, IC = 50 mA, f = 30 MHz S O - 55 to + 150 O E T TStg H C 150 Symbol Min. hFE hFE hFE 100 160 40 VCBO C C Max. Unit 250 400 - - 40 - V VCEO 25 - V VEBO 5 - V ICBO - 100 nA ICEO - 100 nA IEBO - 100 nA VCE(sat) - 0.5 V VBE(sat) - 1.2 V fT 100 - MHz SEMTECH ELECTRONICS LTD. Subsidiary of Sino-Tech International (BVI) Limited ® Dated : 11/08/2006 MMBT8050W (1.5A) DC Current Gain 0.5 0.4 I B =3.0mA I B =2.5mA 0.3 I B =2.0mA 0.2 I B =1.5mA I B =1.0mA 0.1 I B =0.5mA 0 0.4 0.8 1.2 1.6 2.0 h FE , DC CURRENT GAIN Ic(mA), COLLECTOR CURRENT Static Characteristic 1000 100 10 1 0.1 VCE(V), COLLECTOR-EMITTR VOLTAGE Base -Emittr Saturation Voltage Collector-Emitter Saturation Voltage 10000 I C=10I B VBE(sat) 1000 100 M E VCE(sat) 10 0.1 1 10 100 1000 I C(mA), COLLECTOR CURRENT S fT(MHz), CURRENT GAIN BANDWIDTH PRODUCT Current Gain Bandwidth Product 1000 100 10 1 H C 10 100 1000 I C(mA), COLLECTOR CURRENT Base-Emitter On Voltage Ic(mA), COLLECTOR CURRENT VBE(sat) , VCE(sat)(mV), SATURATION VOLTAGE VCE=1V 100 E T 10 1 0.1 0 VCE=1V 0.2 0.4 0.6 0.8 1.0 1.2 VBE (V), BASE-EMITTER VOLTAGE VCE=10V 1 1 10 100 400 I C(mA), COLLECTOR CURRENT SEMTECH ELECTRONICS LTD. Subsidiary of Sino-Tech International (BVI) Limited ® Dated : 11/08/2006
