ASDM4406S
30V N-Channel MOSFET
Features
Product Summary
● High Efficiency
● Low Dense Cell Design
● Advanced trench process technology
● improved dv/dt capability
● Reliable and Rugged
V DS
30
V
R DS(on),Typ@ VGS =10 V
8.1
8.1
mΩ
ID
13
A
Application
● Networking, Load Swtich
● LED lighting
top view

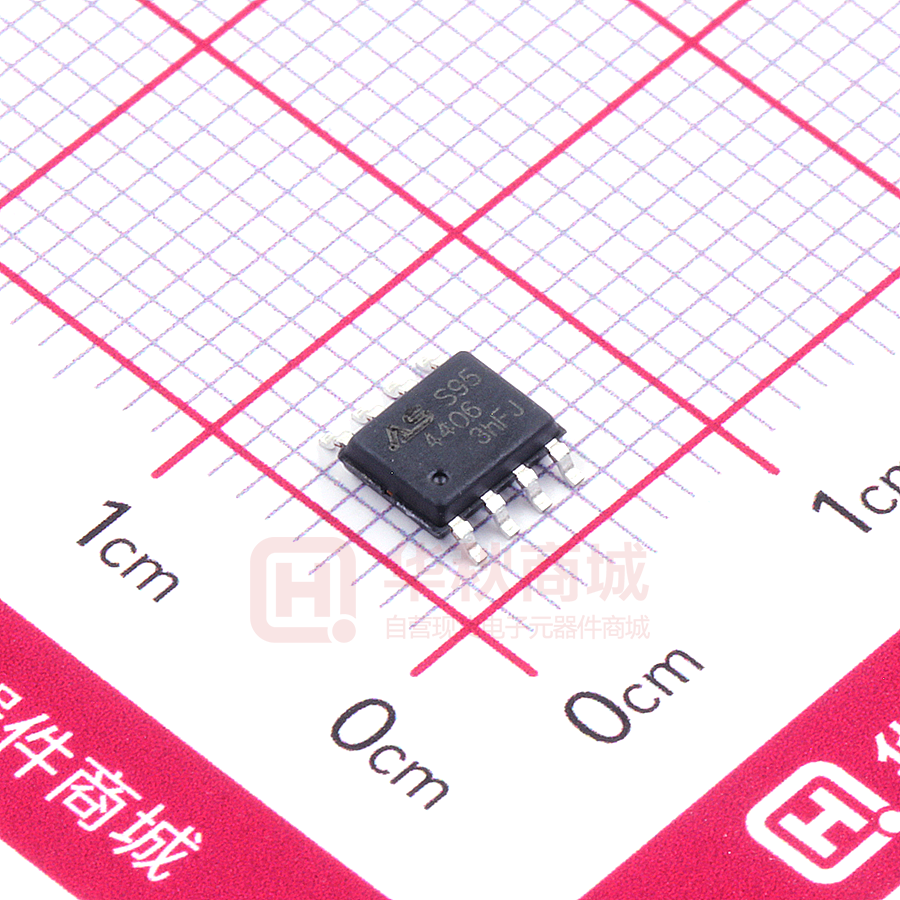

SOP-8
Absolute Maximum Ratings at Tj=25℃ (unless otherwise specified)
Parameter
Drain-Source Voltage
Symbol
VDS
Gate-Source Voltage
VGS
TA=25°C
Continuous Drain
Current
Pulsed Drain Current
Avalanche Current
C
C
C
Avalanche energy L=0.1mH
TA=25°C
B
TA=70°C
Power Dissipation
Thermal Characteristics
Parameter
Maximum Junction-to-Ambient A
Maximum Junction-to-Ambient A D
Maximum Junction-to-Lead
NOV 2018 Version3.0
Steady-State
Steady-State
1/8
V
A
IDM
52
IAS
13
A
EAS
24
3.1
mJ
W
2
-55 to 150
TJ, TSTG
Symbol
t ≤ 10s
±20
10.4
PD
Junction and Storage Temperature Range
Units
V
13
ID
TA=70°C
Maximum
30
RθJA
RθJL
Typ
31
59
16
°C
Max
40
75
24
www.ascendsemi.com
Units
°C/W
°C/W
°C/W
0755-86970486
ASDM4406S
30V N-Channel MOSFET
Electrical Characteristics (TJ=25°C unless otherwise noted)
Symbol
Parameter
STATIC PARAMETERS
Drain-Source Breakdown Voltage
BVDSS
Conditions
Min
Typ
Max
Units
ID=250µA, VGS=0V
30
--
--
V
VDS=30V, VGS=0V
--
--
1
TJ=85°C
--
--
30
µA
IDSS
Zero Gate Voltage Drain Current
IGSS
Gate-Body leakage current
VDS=0V, VGS=±20V
--
--
±100
nA
VGS(th)
Gate Threshold Voltage
VDS=VGS ID=250µA
1.0
1.4
2.0
V
ID(ON)
On state drain current
VGS=10V, VDS=5V
100
--
--
A
VGS=10V, ID=12A
TJ =125°C
---
11.5
15
mΩ
VGS=4.5V, ID=10A
--
8.1
12
12.6
14
mΩ
--
S
RDS(ON)
Static Drain-Source On-Resistance
gFS
Forward Transconductance
VDS=5V, ID=12A
--
45
VSD
Diode Forward Voltage
IS=1A,VGS=0V
--
0.75
IS
Maximum Body-Diode Continuous Current
--
--
1
13
V
A
610
760
910
pF
88
125
160
pF
40
70
100
pF
0.8
1.6
2.4
Ω
11
14
17
nC
5
6.6
8
nC
1.9
2.4
2.9
nC
1.8
3
4.2
nC
1.9
2.4
2.9
nC
1.8
3
4.2
nC
4.4
--
ns
--
9
--
ns
--
17
--
ns
--
6
--
ns
ns
nC
DYNAMIC PARAMETERS
Ciss
Input Capacitance
VGS=0V, VDS=15V, f=1MHz
Coss
Output Capacitance
Crss
Reverse Transfer Capacitance
Rg
Gate resistance
VGS=0V, VDS=0V, f=1MHz
SWITCHING PARAMETERS
Qg(10V) Total Gate Charge
Qg(4.5V) Total Gate Charge
Qgs
Gate Source Charge
Qgd
Gate Drain Charge
Qgs
Gate Source Charge
Qgd
Gate Drain Charge
tD(on)
VGS=10V, VDS=15V, ID=12A
VGS=4.5V, VDS=15V, ID=12A
--
Turn-On DelayTime
tr
Turn-On Rise Time
tD(off)
Turn-Off DelayTime
tf
Turn-Off Fall Time
trr
Body Diode Reverse Recovery Time
IF=12A, dI/dt=500A/µs
5.6
7
8
Qrr
Body Diode Reverse Recovery Charge IF=12A, dI/dt=500A/µs
6.4
8
9.6
VGS=10V, VDS=15V, RL=1.25Ω,
RGEN=3Ω
A. The value of RθJA is measured with the device mounted on 1in2 FR-4 board with 2oz. Copper, in a still air environment with TA =25°C. The
value in any given application depends on the user's specific board design.
B. The power dissipation PD is based on TJ(MAX)=150°C, using ≤ 10s junction-to-ambient thermal resistance.
C. Repetitive rating, pulse width limited by junction temperature TJ(MAX)=150°C. Ratings are based on low frequency and duty cycles to keep
initialTJ=25°C.
D. The RθJA is the sum of the thermal impedence from junction to lead RθJL and lead to ambient.
E. The static characteristics in Figures 1 to 6 are obtained using
