GS302SA

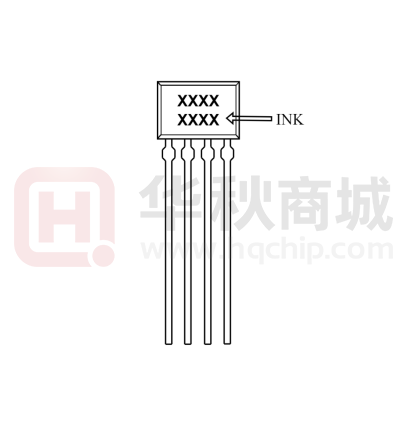

Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC- GS302SA Programmable Linear Hall-Effect IC 可编程线性霍尔 IC GS302SA ⚫ 可编程线性砷化镓与硅基混合霍尔 IC GaAs + Si Hybrid Programmable Linear Hall-Effect IC ⚫ 3V~5.5V 供电电压范围 Single power supply：VCC 3V ~ 5.5V ⚫ 可编程固定输出或比例输出模式，兼具参考电压输出 Fixed or Ratiometric Output ⚫ -40~125℃使用环境 Wide ambient Temperature Range : Ta -40℃ ~ 125℃ ⚫ 快速响应兼具宽带宽 Quick response for magnetic field with wide bandwidth ⚫ 提供可编程单线通信接口 Programmable via One Wire Interface at VOUT Pin ⚫ 可通过编程改变灵敏度方向 Sensitivity direction can be changed programmatically Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC- 引脚定义 Pinning Define 应用场景 Application scenario Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC- 外形尺寸图 Dimensional Drawing (Unit MM) 主视图 Main view 右视图 Right view 底视图 Bottom view 备注 Note: 未标识的尺寸公差为±0.05mm，角度的公差为±1° Unmarked tolerances are controlled according to ±0.05mm while the Angle tolerance is ±1°. Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC- 最大绝对参值 Absolute Maximum Rating Table 1．GS302SA Working conditions 特性 符号 条件 最小值 标准值 最大值 单位 Characteristics Symbol Condition Min Typ Max Unit VCC Ta = 25℃ -0.3 6.5 V Iout Ta = 25℃ -45 45 mA Vout Ta = 25℃ 0.1 VCC-0.1 V Ts -40 150 ℃ Ta -40 125 ℃ 输入电压 Supply Voltage 输出电流 Output Current 输出电压 Output Voltage 存储温度 Storage Temp. 工作温度 Operation Temp. Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC- 工作参数 Operation Conditions Table 2. Electric and magnetic characteristics Ta=-40 to 125℃ 特性 Characteristics 符号 Symbol 条件 Condition 最小值 Min 标准值 Typ 最大值 Max 单位 Unit VCC Ta = 25℃ 3 3.3V/5V 5.5 V ICC In Programming @ Ta = 25℃ In normal operation @Ta=25℃ - 6/8 33 11 mA mA Sens Ta = 25℃ 0.1 100 mV/GS C=20pF@ BW=600kHz，Ta = 25℃ C=20pF@ BW=500kHz，Ta = 25℃ C=20pF@ BW=250kHz，Ta = 25℃ C=20pF@ BW=50kHz，Ta = 25℃ - 2.5 - μs - 1 1.5 2 4.5 - 250 500 KHz - 20p 10n F 供电电压 Supply Voltage 电流 Current Consumption 可编程灵敏度范围 Sensitivity Range 响应时间 Response Time Tr 信号带宽 Signal bandwidth 负载电容 Load Capacitance ①② Bw CL 参考电压 Reference Voltage @Ta=25℃ Vref 零点输出 Quiescent Voltage V0 差分零点输出 Quiescent Voltage of Differential ③ Output at Ta 25℃ 灵敏度温漂 Sensitivity drift through temperature V0-Vref SensTC S ③ SS ③ 2.470 2.530 2.490 2.510 V VCC=5V@25℃ 2.495 2.500±0.002 2.505 VCC=3.3V@25℃ 1.645 1.650±0.002 1.655 VCC=5V@-40~125℃ -0.01 ±0.005 0.01 V VCC=3.3V@-40~125℃ -0.005 ±0.002 0.005 V -40℃~125℃ -1.5 ±0.5 1.5 % VCC-0.1 V Vout-SatH 输出饱和电压 Output Saturation Voltage 灵敏度比率误差 Error of sensitivity 零点比率误差 Error of Quiescent Voltage 线性误差 Linearity Error Ta = 25℃ Vout-SatL V 0.1 RatERRSens VCC in range 4.85~5.15V @-40~125℃ -0.5 0.5 % RatERRV0 VCC in range 4.85~5.15V @-40~125℃ -0.5 0.5 % LinERR VCC=5V@-40~125℃ -0.5 ±0.1 0.5 % VCC=5V@-40~125℃ -0.03 ±0.02 0.03 VCC=3.3V@-40~125℃ -0.02 ±0.015 0.02 VCC=5V@-40~125℃ -0.03 ±0.02 0.03 VCC=3.3V@-40~125℃ -0.02 ±0.015 0.02 VCC=5V@-40~125℃ -0.02 ±0.01 0.02 VCC=3.3V@-40~125℃ -0.01 ±0.007 0.01 VCC=5V@-40~125℃ VCC=3.3V@-40~125℃ -0.01 -0.007 ±0.005 ±0.005 0.01 0.007 固定输出模式 Fixed Output Mode ： ④ 参考电压温漂 Reference Voltage drift through temperature 零点温漂 Quiescent Voltage drift through temperature 差分零点温漂 Quiescent Voltage of Differential Output drift through temperature △Vref △V0 △（V0-Vref） V V V ⑤ 比例输出模式 Ratiometric Output Mode : 参考电压温漂 Reference Voltage △Vref Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. V Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC特性 Characteristics drift through temperature 零点温漂 Quiescent Voltage drift through temperature 差分零点温漂 Quiescent Voltage of Differential Output drift through temperature 符号 Symbol △V0 △（V0-Vref） 条件 Condition 最小值 Min 标准值 Typ 最大值 Max VCC=5V@-40~125℃ -0.01 ±0.005 0.01 VCC=3.3V@-40~125℃ -0.007 ±0.005 0.007 VCC=5V@-40~125℃ -0.02 ±0.005 0.02 VCC=3.3V@-40~125℃ -0.01 ±0.005 0.01 Note: ① 当灵敏度超出 20mV/GS 后，响应时间会超出 2us When the sensitivity exceeds 20mV/GS, the response time is greater than 2us ② 响应时间可通过编程控制 Response time can be controlled programmatically ③ S 与 SS 代表芯片的不同档位 S and SS represent different gears of the chip ④ 固定输出模式：输出电压不随供电电压波动 Fixed output mode：The output voltage does not fluctuate with the supply voltage ⑤ 比例输出模式： 输出电压随供电电压波动 Ratiometric mode：Output voltage fluctuates with the supply voltage ⑥ 差分输出： 差分零点输出 = V0 − Vref 差分灵敏度 = VOUT(B) − Vref B Differential Output：Quiescent Voltage output is equal to V0 subtract Vref while Magnetized Output is equal to Vout（B） subtract Vref ⑦ 零点和灵敏度可分别设置为是否随电压变化 Static voltage and sensitivity can be set to vary with or without voltage, respectively Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. 单位 Unit V V Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC- 特性定义 Characteristics Definitions 1. Sens 【mV/GS】灵敏度 Sensitivity 灵敏度定义为磁感应输出与磁感应强度的比值，即加磁输出减去零点输出后的数值与磁感应强度的比 值 Sensitivity is defined as the slope of the approximate straight line calculated by the least square method, using data of OUT voltage (Vout) when the magnetic flux density (B) is swept within the range of input magnetic flux density (Bin). Sens = VOUT(B) − V(0) B 2. SensTC 【%】灵敏度温漂 Sensitivity drift through temperature 灵敏度温漂定义为温度导致的灵敏度变化值与校准温度（常温 25℃）下的灵敏度的比值 Sensitivity temperature drift is defined as the ratio of the value of the sensitivity change due to temperature to the sensitivity at the calibrated temperature（25℃）. SensTC = 3. △ Sens Sens(T) − Sens(25℃) ∗ 100 = ∗ 100 Sens(25℃) Sens(25℃) LinERR【%】线性误差 Linearity Error 线性误差定义为最大垂直偏差（MFD）与最大量程（F.S.）的比值 最大垂直偏差（MFD）指得是实际输出与拟合输出曲线的在同一磁感应强度下的最大误差即 Vout（B 实际）-Vout（B 拟合）。定义公式如下所示： Linearity error is defined as the ratio of the maximum perpendicular deviation (MFD) to the full scale (F.S.), where MFD is the maximum difference between the OUT voltage (Vout) and the approximate straight line calculated in the sensitivity definition. Definition formula is shown in below: LinERR = 100 ∗ MFD MFD = 100 ∗ F. S. VH − VL Figure 1. Output characteristics of GS302SA 4. 灵敏度比率误差 RatERRSens [%]以及零点比率误差 RatERRV0 [%]（仅对比例输出模式有效） Ratiometric output error of sensitivity RatERRSens [%] and rationmetric output error of Quiescent voltage RatERRV0 [%]（Only valid for proportional output mode）. GS302SA 器件具有比例输出。这意味着静态电压输出（V0）和磁灵敏度（Sens）与电源电压（VCC） 成正比。换句话说，当电源电压增加或减少一定百分比时，每个特性也增加或减少相同的百分比。误 差是测量到的相对于 5v 的电源电压变化与测量到的每个特性变化之间的差值。 The GS302SA device features ratiometric output. This means that the Quiescent Voltage Output, V0, magnetic Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect ICsensitivity, Sens are proportional to the Supply Voltage, VCC. In other words, when the supply voltage increases or decreases by a certain percentage, each characteristic also increases or decreases by the same percentage. Error is the difference between the measured change in the supply voltage relative to 5 V, and the measured change in each characteristic. Rat ERR Sens = [1 − Rat ERR V0 = [1 − 5. Vout(VCC) 5𝑉 ∗ ] ∗ 100 Vout(5V) VCC V0 (VCC) 5V ∗ ] ∗ 100 V0 (5V) VCC Tr [μs] 上升响应时间 Rise response time 响应时间定义为在磁感应强度脉冲输入下，从输入磁场的 90%到输出电压的 90%的时间延迟。 Rise response time is defined as the time delay from the 90% of input magnetic field (B) to the 90% of the OUT voltage (Vout) under the pulse input of magnetic flux density. 100% 90% Tr Rise response time Tr Figure 2. Definition of response time 6. Vout-SatH 、 Vout-SatL 饱和输出电压 Saturation Output Voltage 输出可以随着磁场强度的变化在最大值 VSAT(HIGH)和最小值 VSAT(LOW)之间摆动。 The output can oscillate between the maximum Vout-SatH and minimum Vout-SatL as the magnetic field strength changes. 7. SymERR 【%】灵敏度对称性误差 Symmetry Sensitivity Error 器件在任意两个大小相等、极性相反磁场下的灵敏度是大小相等的。 The magnetic sensitivity of device is constant for any two applied magnetic fields of equal magnitude and opposite polarities. SymERR (%) is measured and defined as: SymERR = (1 − SensBPOS ) ∗ 100% SensBNEG Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC- 输出特性 Output Characteristics 1. 零点温漂和参考电压温漂 Static voltage temperature drift and reference voltage temperature drift 2.1 固定输出模式 Fixed Output Mode （Sens=10mV/GS、B=200GS、V0=2.5V） 2.1.1△V0 零点温漂 Quiescent Voltage drift through temperature 零点温漂随温度变化 Quiescent Voltage Output Drift Through Temperature Range versus Ambient Temperature 40 30 30 零点温漂/mV △ V0/mV 20 10 Relative to V0 at TA = 25°C SPEC 0 -10 -20 -30 -30 -40 -50 -25 0 25 50 75 100 125 150 温度/℃ Ta/℃ 2.1.2 △Vref 参考电压温漂 Reference Voltage drift through temperature 参考电压温漂随温度变化 Reference Voltage Output Drift Through Temperature Range versus Ambient Temperature 40 30 30 参考电压温漂/mV △ Vref /mV 20 10 Relative to Vref at TA = 25°C SPEC 0 -10 -20 -30 -30 -40 -50 -25 0 25 50 75 100 125 150 温度/℃ Ta/℃ 2.1.3 开启/关闭电压 Power On /Off V0 VOUT(B) 开启、关闭电压 Power On / Off 4.5V 4.6 4.5 2.5V 4.1 0 1 2 3 4 4.0 5 4 3 2 1 0 Supply Voltage /V 输入电压/V Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC2.2 比例输出模式 Ratiometric Output Mode（Sens=10mV/GS、B=200GS、V0=1/2VCC） 2.2.1△V0 零点温漂 Quiescent Voltage drift through temperature 零点温漂随温度变化 Quiescent Voltage Output Drift Through Temperature Range versus Ambient Temperature 20 10 零点温漂/mV △ V0/mV 10 Relative to V0 at TA = 25°C SPEC 0 -10 -10 -20 -50 -25 0 25 50 75 100 125 150 温度/℃ Ta/℃ 2.2.2 △Vref 参考电压温漂 Reference Voltage drift through temperature 参考电压温漂随温度变化 Refererce Voltage Output Drift Through Temperature Range versus Ambient Temperature 20 10 参考电压温漂/mV △ Vref /mV 10 Relative to Vref at TA = 25°C SPEC 0 -10 -10 -20 -50 -25 0 25 50 75 100 125 150 温度/℃ Ta/℃ 2.2.3 开启/关闭电压 Power On /Off V0 VOUT(B) 开启、关闭电压 Power On / Off 4.5V 2.4 2.2 2.5V 0 1 2 3 4 5 4 3 2 1 0 Supply Voltage /V 输入电压/V Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC2. △（V0-Vref）差分零点温漂 Quiescent Voltage of Differential Output drift through temperature （Sens=10mV/GS、B=200GS） 差分零点温漂随温度变化 Quiescent Voltage of Differential Output Drift Through Temperature Range versus Ambient Temperature 30 20 差分零点温漂/mV △ （V0-Vref）/mV 20 10 SPEC 0 Relative to V0-Vref at TA = 25°C -10 -20 -20 -30 -50 -25 0 25 50 75 100 125 150 温度/℃ Ta/℃ 3. SensTC 灵敏度温漂 Sensitivity drift through temperature（Sens=10mV/GS、B=200GS） 灵敏度温漂随温度变化 Sensitivity Drift Through Temperature Range versus Ambient Temperature 2 1.5 灵敏度温漂/% SensTC/% 1 SPEC 0 -1 -1.5 -2 -50 -25 0 25 50 75 100 125 150 温度/℃ Ta/℃ 4. 输出电压-磁感应强度 Sensitivity as a function of magnetic flux density B. B Output Voltage VDD V0 N 0 Magnetic Flux Density S Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC5. Tr 响应时间 Response Time（Sens=10mV/GS、B=50GS、CL=1nF） Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC- 功能框图 Function Block Diagram 应用电路 Application Circuits Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -GS302SA Programmable Linear Hall-Effect IC- 修订履历 Revision History 版本 日期 修订内容 Version Date Description 1.0 2.0 2022.09.12 September 12,2022 2023.1.17 January 17, 2023 初版发型 Initial release 增加中文翻译、完善不同输出模式的对应性能、增加部分输出特性图 Add Chinese translation, improve the corresponding performance of different output modes and add part of the output characteristic diagram Copy Right Reserved JZWI-DS-038 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion.
