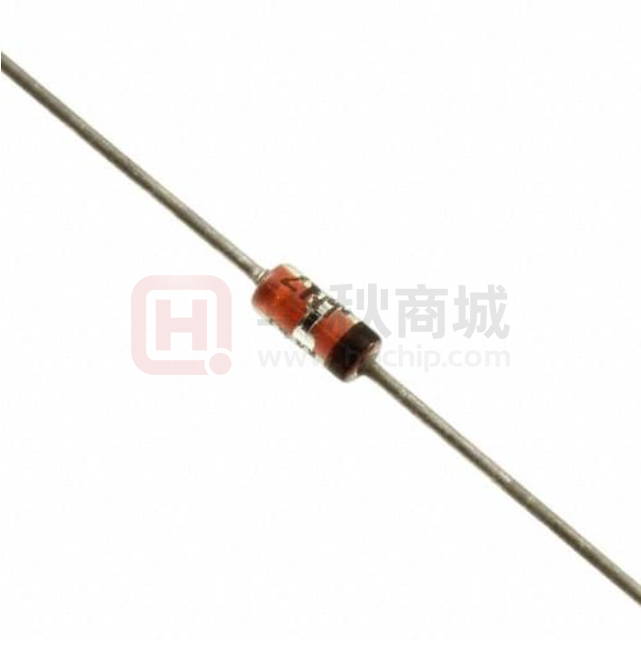

BZX55C20

BZX55C SERIES 500mW Hermetically Sealed Glass Zener Voltage Regulators DO-35 Features — — — — — — — — — Zener Voltage range 2.0 to 75 volts DO-35 package (JEDEC) Through-hole device type mounting Hermetically sealed glass Compression bonded construction All external surfaces are corrosion resistant and leads are readily solderable RoHS compliant Solder hot dip Tin(Sn) lead finish Cathode indicated by polarity band Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 OC ambient temperature unless otherwise specified. Maximum Ratings Type Number Symbol Value Units Power Dissipation Pd 500 mW Maximum Forward Voltage @ IF = 100mA VF 1.0 V O Storage Temperature Range TSTG -65 to + 200 C O Operating Junction Temperature TJ + 200 C These ratings are limiting values above which the serviceability of the diode may be impaired. ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com BZX55C SERIES 500mW Hermetically Sealed Glass Zener Voltage Regulators ELECTRICAL CHARACTERISTICS (TA=25 C O Device Type BZX55C2V0 BZX55C2V2 VZ at IZT unless otherwise noted) (Volts) Min Max 1.88 2.11 IZT mA 5.0 ZZT @ IZT Ohms Max 100 IZK mA 1.0 ZZK @ IZK Ohms Max 600 IR @ V R uA Max 100 VR V 1.0 2.08 2.33 5.0 100 1.0 600 100 1.0 BZX55C2V4 2.28 2.56 5.0 85 1.0 600 50 1.0 BZX55C2V7 2.51 2.89 5.0 85 1.0 600 10 1.0 BZX55C3V0 2.8 3.2 5.0 85 1.0 600 4.0 1.0 BZX55C3V3 3.1 3.5 5.0 85 1.0 600 2.0 1.0 BZX55C3V6 3.4 3.8 5.0 85 1.0 600 2.0 1.0 BZX55C3V9 3.7 4.1 5.0 85 1.0 600 2.0 1.0 BZX55C4V3 4.0 4.6 5.0 75 1.0 600 1.0 1.0 BZX55C4V7 4.4 5.0 5.0 60 1.0 600 0.5 1.0 BZX55C5V1 4.8 5.4 5.0 35 1.0 550 0.1 1.0 BXZ55C5V6 5.2 6.0 5.0 25 1.0 450 0.1 1.0 BZX55C6V2 5.8 6.6 5.0 10 1.0 200 0.1 2.0 BZX55C6V8 6.4 7.2 5.0 8 1.0 150 0.1 3.0 BZX55C7V5 7.0 7.9 5.0 7 1.0 50 0.1 5.0 BZX55C8V2 7.7 8.7 5.0 7 1.0 50 0.1 6.2 BZX55C9V1 8.5 9.6 5.0 10 1.0 50 0.1 6.8 BZX55C10 9.4 10.6 5.0 15 1.0 70 0.1 7.5 BZX55C11 10.4 11.6 5.0 20 1.0 70 0.1 8.2 BZX55C12 11.4 12.7 5.0 20 1.0 90 0.1 9.1 BZX55C13 12.4 14.1 5.0 26 1.0 110 0.1 10 BZX55C15 13.8 15.6 5.0 30 1.0 110 0.1 11 BZX55C16 15.3 17.1 5.0 40 1.0 170 0.1 12 BZX55C18 16.8 19.1 5.0 50 1.0 170 0.1 14 BZX55C20 18.8 21.2 5.0 55 1.0 220 0.1 15 BZX55C22 20.8 23.3 5.0 55 1.0 220 0.1 17 BZX55C24 22.8 25.6 5.0 80 1.0 220 0.1 18 BZX55C27 25.1 28.9 5.0 80 1.0 220 0.1 20 BZX55C30 28 32 5.0 80 1.0 220 0.1 22 BZX55C33 31 35 5.0 80 1.0 220 0.1 24 BZX55C36 34 38 5.0 80 1.0 220 0.1 27 BZX55C39 37 41 2.5 90 0.5 500 0.1 28 BZX55C43 40 46 2.5 90 0.5 600 0.1 32 BZX55C47 44 50 2.5 110 0.5 700 0.1 35 BZX55C51 48 54 2.5 125 0.5 700 0.1 38 BZX55C56 52 60 2.5 135 0.5 1000 0.1 42 BZX55C62 58 66 2.5 150 0.5 1000 0.1 47 BZX55C68 64 72 2.5 160 0.5 1000 0.1 51 BZX55C75 70 80 2.5 170 0.5 1000 0.1 56 Notes: 1. Tolerance and voltage designation: the type numbers listed have zener voltage as shown. 2. Specials available include: nominal zener voltages between the voltages shown and tighter voltage, for detailed information on price, availability and delivery. 3. Zener voltage (VZ) measurement: the zener voltage is measured under pulse conditions such that TJ is more than 2oC above TA. 4. Zener impedance (ZZ) derivation: zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an RMS value equal to 10% of the dc zener current (IZT) is superimposed to IZT. PACKAGE SPQ/PCS CARTON SPQ/PCS CARTON SIZE/CM CARTON GW/KG CARTON NW/KG DO-35 5000/AMMO 100000 41X28.5X38 14.57 13.07 ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com
