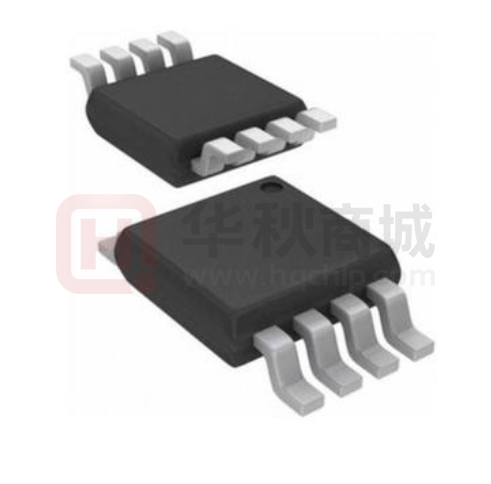

LM358A-VR

LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Features Description  Supply Voltage: 3V to 36V The LM321A/358A/324A series amplifiers are newest high  Low Supply Current: 100μA per channel supply voltage amplifiers with low offset, low power and stable  Input Common-Mode Voltage Range Includes Ground  Can Work as Comparator  Rail to Rail Output  Bandwidth: 0.9 MHz current per amplifier. The input common-mode voltage range  Slew Rate: 0.5V/μs extends to V–, and the outputs swing rail-to-rail. The  Excellent EMI Suppress Performance: 71dB at 1GHz LM321A/358A/324A  Offset Voltage: ±3mV Maximum replacements for many commercially available op-amps to  Offset Voltage Temperature Drift: 7 μV/°C reduce power and improve input/output range and performance.  –40°C to 125°C Operation Temperature Range The combination of features makes the LM321A/358A/324A frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 0.9MHz bandwidth, 0.5V/μs slew rate and maximum 3mV offset while drawing only 100μA of quiescent family can be used as plug-in ideal choices for power module, industrial control, motor control Applications  Power Module  Sensor Interface  Motor Control  Audio and audio application. Pin Configuration +In LM321A LM358A LM324A 5-Pin SOT23 8-Pin SOIC/TSSOP/MSOP/DFN 14-Pin SOIC/TSSOP -T Suffixes -S, -TS, -V, -F Suffixes -S and -T Suffixes 1 -VS 2 -In 3 5 4 +VS Out Out A 1 ﹣In A 2 ﹢In A 3 ﹣Vs 4 ﹢Vs Out A 1 14 Out D 7 Out B ﹣In A 2 13 ﹣In D 6 ﹣In B 5 ﹢In B 8 A B A ﹢In A 3 12 ﹢In D ﹢Vs 4 11 ﹣Vs ﹢In B 5 10 ﹢In C B www.3peakic.com.cn 1 / 16 D C ﹣In B 6 9 ﹣In C Out B 7 8 Out C Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Table of Contents Features ........................................................................................................................................................................... 1 Applications ..................................................................................................................................................................... 1 Description....................................................................................................................................................................... 1 Pin Configuration ............................................................................................................................................................ 1 Table of Contents ............................................................................................................................................................ 2 Revision History .............................................................................................................................................................. 3 Order Information ............................................................................................................................................................ 3 Absolute Maximum Ratings Note 1 ................................................................................................................................... 4 ESD Rating ....................................................................................................................................................................... 4 Thermal Information ....................................................................................................................................................... 4 Electrical Characteristics ............................................................................................................................................... 5 Typical Performance Characteristics ............................................................................................................................ 7 Tape and Reel Information ............................................................................................................................................. 9 Package Outline Dimensions ....................................................................................................................................... 10 SOT23-5 ..................................................................................................................................................................................... 10 SOIC-8 ........................................................................................................................................................................................11 TSSOP-8 .................................................................................................................................................................................... 12 MSOP-8 ..................................................................................................................................................................................... 13 DFN-8 1.5*1.5 ............................................................................................................................................................................ 14 SOIC-14 ..................................................................................................................................................................................... 15 TSSOP-14 .................................................................................................................................................................................. 15 www.3peakic.com.cn 2 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Revision History Date Revision Notes 2018/3/21 Rev.Pre Pre-Release Version 2018/11/1 Rev.0 Initial Version 2018/12/25 Rev.0.01 Update date code information of LM358A-F1R: “AAYW” -> “YW” 2019/1/14 Rev.0.02 Update Mark Information of LM358A-SR, LM358A-CSR:”LM358A”->”358A”; Update Package Information: Remove “SC70”, Update Package Dimensions of SOIC-8 2019/6/26 Rev.0.03 Add temperature limit of VOL, VOH, Isc Update Package Dimension 2019/8/16 Rev.0.04 Update the description of VOL, VOH in Electrical Characteristics: Remove VOL, VOH, Maximum Output Swing -> Output Voltage Swing from Positive and Negative Rail; Output Voltage Swing Low–> Output Voltage Swing from Negative Rail 2019/12/25 Rev.0.05 Update the mark of LM358A-F1R: “58A”->”58” 2020/9/24 Rev.A Update the description of Absolute Maximum Ratings: “Maximum Junction Temperature” -> “Maximum Operating Junction Temperature” 2020/12/11 Rev.A.1 Add Maximum Value of IB, IIN in Electrical Characteristics 2021/5/10 Rev.A.2 Update Spec: Iq of LM321A 2022/4/29 Rev.A.3 Update EC table: Add max of Ios, Add common voltage range in 25 degree. Order Information Order Number Operating Temperature Range Package Marking Information MSL Transport Media, Quantity LM321A-TR -40 to 125°C 5-Pin SOT23 21AXX Note 1 3 Tape and Reel, 3000 LM358A-SR -40 to 125°C 8-Pin SOIC 3 Tape and Reel, 4000 LM358A-CSR -40 to 85°C 8-Pin SOIC 3 Tape and Reel, 4000 LM358A-F1R -40 to 125°C 8-Pin DFN 1.5*1.5 1 Tape and Reel, 3000 LM358A-TSR -40 to 125°C 8-Pin TSSOP 3 Tape and Reel, 3000 LM358A-VR -40 to 125°C 8-Pin MSOP 3 Tape and Reel, 3000 LM324A-SR -40 to 125°C 14-Pin SOIC 3 Tape and Reel, 2500 LM324A-CSR -40 to 85°C 14-Pin SOIC 3 Tape and Reel, 2500 LM324A-TR -40 to 125°C 14-Pin TSSOP 3 Tape and Reel, 3000 358A XXXX Note 1 358A XXXX Note 1 58 YW Note 1 LM358A XXXX Note 1 LM358A XXXX Note 1 LM324A XXXX Note 1 LM324A XXXX Note 1 LM324A XXXX Note 1 Note 1: “XX” or “XXXX” identify the manufacture information. www.3peakic.com.cn 3 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Absolute Maximum Ratings Note 1 Parameters Rating Supply Voltage, (+VS)– (-VS) 40 V Input Voltage (-VS) – 0.3 to (+VS) + 0.3 Differential Input Voltage (+VS) - (-VS) Input Current: +IN, –IN ±10mA Note 2 Output Short-Circuit Duration Note 3 Infinite Maximum Operating Junction Temperature 150°C Operating Temperature Range –40 to 125°C Storage Temperature Range –65 to 150°C Lead Temperature (Soldering, 10 sec) 260°C Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. Note 2: The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 300mV beyond the power supply, the input current should be limited to less than 10mA. Note 3: A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to the package. The specified values are for short traces connected to the leads. ESD Rating Symbol Parameter Condition Minimum Level Unit HBM Human Body Model ESD ANSI/ESDA/JEDEC JS-001 3 kV CDM Charged Device Model ESD ANSI/ESDA/JEDEC JS-002 2 kV Thermal Information Package Type θJA θJC Unit 5-Pin SOT23 250 81 °C/W 8-Pin SOIC 158 43 °C/W 8-Pin TSSOP 191 44 °C/W 8-Pin MSOP 210 45 °C/W 8-Pin DFN 1.5*1.5 200 14-Pin SOIC 120 36 °C/W 14-Pin TSSOP 180 35 °C/W www.3peakic.com.cn °C/W 4 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Electrical Characteristics All test condition is VS = 30V, TA = 25°C, RL = 10kΩ, CL =100pF, unless otherwise noted. Symbol Parameter TA Conditions Min Typ Max Unit 36 V 250 μA 350 μA 200 μA 300 μA 200 μA 250 μA 150 μA 200 μA Power Supply VS Supply Voltage Range 3 150 VS = 30V Quiescent Current Operating Range per IQ Amplifier, LM321A 150 VS = 5V Operating Range 110 VS = 30V Quiescent Current Operating Range per IQ Amplifier, LM358A, LM324A 100 VS = 5V Operating Range 85 PSRR Power Supply Rejection Ratio 120 dB VS = 5V to 36V Operating Range 80 dB Input Characteristics -3 0.1 3 mV 7 mV 3 mV 7 mV VS = 30V, VCM = 0V to 28V Operating Range VOS -7 Input Offset Voltage -3 0.1 VS = 5V, VCM = 0V to 3V Operating Range VOS TC Input Offset Voltage Drift IB Input Bias Current -7 Operating Range Operating Range IOS VS = 36V, VID = 36V Operating Range pA 600 1000 pA 60 500 pA 600 1000 pA 5 150 nA 20 1000 nA Differential Mode 5 pF Common Mode 5 pF 110 dB Input Capacitance 95 Av 500 Different Input Current VS = 36V, VID = 36V CIN 60 Input Offset CurrentNote 1 Operating Range IIN μV/°C 7 Open-loop Voltage Gain Operating Range 90 dB Common-mode Input Voltage (V+) – (V-) VCMR 1.5 Operating Range CMRR V Range Common Mode Rejection Ratio (V-) (V+) - 2 V 75 120 dB 70 90 dB VCM = 0V to 28V Operating Range Output Characteristics Output Voltage Swing from Positive and Negative Rail 200 RLOAD = 10kΩ to VS/2 Operating Range RLOAD = 2kΩ to VS/2 www.3peakic.com.cn 1.1 5 / 16 300 mV 700 mV 1.3 V Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Operating Range Output Voltage Swing from VS = 5V, RLOAD = 10kΩ to 0V 5 2 V 10 mV Negative Rail 25 ISC 30 mA Output Short-Circuit Current Operating Range 15 mA AC Specifications GBW Gain-Bandwidth Product SR Slew Rate G = 1, 2V step Settling Time, 0.1% tS 0.9 MHz 0.5 V/μs 4 μs 5 μs G = 1, 2V step Settling Time, 0.01% PM Phase Margin VS = 30V, RL=1K, CL=100pF 60 ° GM Gain Margin VS = 30V, RL=1K, CL=100pF 15 dB Channel Separation f = 1 kHz to 20 kHz 120 dB Noise Performance EN Input Voltage Noise f = 0.1Hz to 10Hz 3 μVRMS eN Input Voltage Noise Density f = 1kHz 70 nV/√Hz iN Input Current Noise f = 1kHz 3 fA/√Hz THD+N Total Harmonic Distortion and f = 1kHz, G =1, RL = 10kΩ, 0.001 % Noise VOUT = 6VRMS Note 1: Provided by bench test and design simulation www.3peakic.com.cn 6 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Typical Performance Characteristics 120 140 115 130 110 Supply Current (uA) Supply Current (uA) VS = ±15V, VCM = 0V, RL = 10kΩ, unless otherwise specified. 105 100 95 90 120 110 100 90 80 85 80 3 13 70 23 -40 10 Supply Voltage (V) Figure 1. Quiescent Current vs. Supply Voltage 60 Temperatures(℃) 110 Figure 2. Quiescent Current vs. Temperature 3000 1000 800 2000 600 400 1000 Vos ：uV Vos ：uV 200 0 -200 0 -1000 -400 -600 -2000 -800 -3000 -1000 0 10 20 -50 30 0 VCM: V Figure 3. Offset Voltage vs. Common Mode Voltage 100 150 Figure 4. Offset Voltage vs. Temperature 150 120.00 100.00 200 150 100 60.00 50 50 0 Phase (°) 100 80.00 Gain(dB) EMIRR ：dB 50 Temperture :℃ 0 40.00 -50 -50 20.00 -100 0.00 10 100 Frequency: MHz 1000 1 100 10k 1M Frequency (Hz) Figure 5. EMIRR+ vs. Frequency www.3peakic.com.cn -100 0.01 Figure 6. Open Loop Gain and Phase vs. Frequency 7 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps VS = ±15V, VCM = 0V, RL = 10kΩ, unless otherwise specified. 110 120 110 100 PSRR+ 100 PSRR- CMRR ：dB PSRR ：dB 90 90 80 80 70 70 60 60 50 50 40 40 10 100 1K Frequency(Hz) 10 10K Figure 7. PSRR vs. Frequency 1K Frequency(Hz) 10K Figure 8. CMRR vs. Frequency 30 10000 25 Different Input Current(nA) Equivalent Input Noise Voltage(V) 100 1000 100 20 15 10 5 0 -40 10 0.1 1 10 100 1K Frequency(Hz) 10K 100K 10 60 Temperature(℃) 110 160 Figure 10. Different Input Current vs. Temperature Figure 9. Voltage Noise Spectral Density vs. Frequency www.3peakic.com.cn 8 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Tape and Reel Information Order Number Package D1 W1 A0 B0 K0 P0 W0 Pin1 Quadrant LM321A-TR 5-Pin SOT23 180.0 13.1 3.2 3.2 1.4 4.0 8.0 Q3 LM358A-SR 8-Pin SOIC 330.0 17.6 6.4 5.4 2.1 8.0 12.0 Q1 LM358A-CSR 8-Pin SOIC 330.0 17.6 6.4 5.4 2.1 8.0 12.0 Q1 LM358A-VR 8-Pin MSOP 330.0 17.6 5.2 3.3 1.5 8.0 12.0 Q1 LM358A-TSR 8-Pin TSSOP 330.0 17.6 6.8 3.3 1.2 8.0 12.0 Q1 LM358A-F1R 8-Pin DFN 1.5*1.5 178.0 12.3 1.7 1.7 0.75 4.0 8.0 Q1 LM324A-SR 14-Pin SOIC 330.0 21.6 6.5 9.0 2.1 8.0 16.0 Q1 LM324A-CSR 14-Pin SOIC 330.0 21.6 6.5 9.0 2.1 8.0 16.0 Q1 LM324A-TR 14-Pin TSSOP 330.0 17.6 6.8 5.4 1.2 8.0 12.0 Q1 www.3peakic.com.cn 9 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Package Outline Dimensions SOT23-5 www.3peakic.com.cn 10 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps SOIC-8 www.3peakic.com.cn 11 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps TSSOP-8 www.3peakic.com.cn 12 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps MSOP-8 www.3peakic.com.cn 13 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps DFN-8 1.5*1.5 www.3peakic.com.cn 14 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps SOIC-14 TSSOP-14 www.3peakic.com.cn 15 / 16 Rev.A.3 LM321A/ LM358A/ LM324A 36V General Purpose Op Amps 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. www.3peakic.com.cn 16 / 16 Rev.A.3
