TOS-3104AMRL-B11

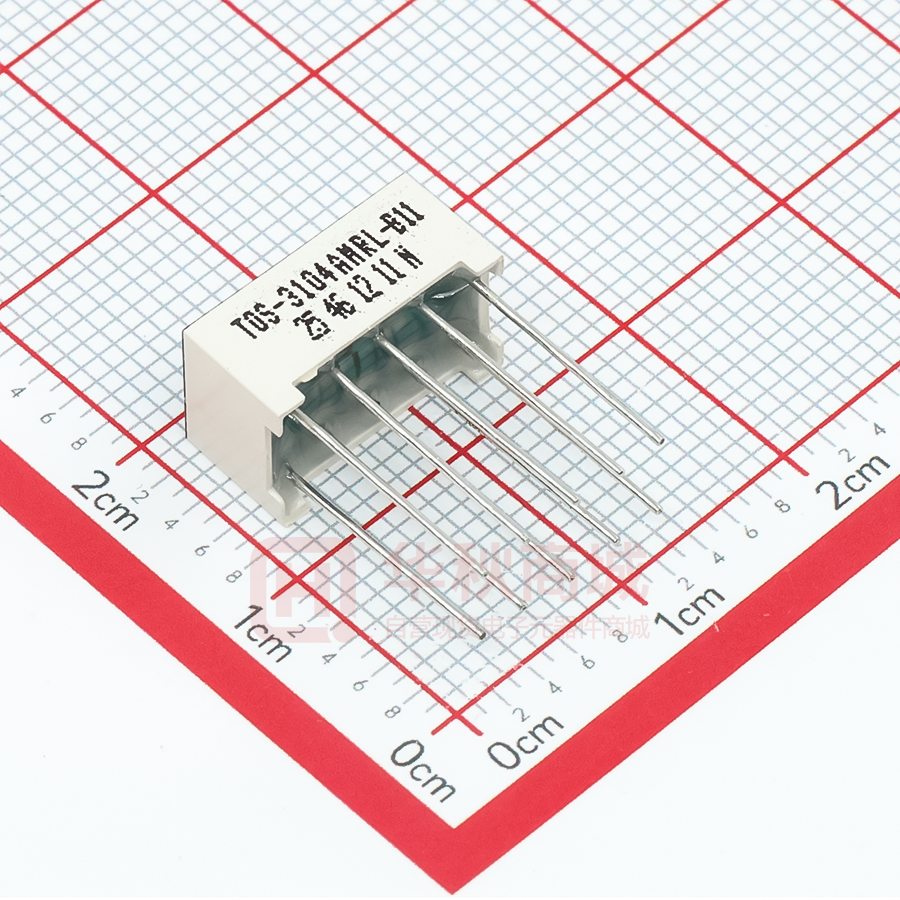

TOS-3104AMRL-B11 Single Digit Display LED Chip Part Number TOS-3104AMRL-B11 Material Source Color AIGaInP Ultra-red Face Color Segment Color Black White Features • (0.30”) 7.62mm digit height • Common cathode • I.C. compatible • Low power requirement • RoHS compliant Applications • Audio equipment • Instrument panels • Digital read out display Package Dimensions & Internal Circuit Diagram Notes: 1. All dimensions are in millimeters, tolerance: ±0.25 ; Angle: ±0.1° unless otherwise noted. 2. Specifications are subject to change without notice. REV.: A-1 Prepared by ZG.YANG (23228) Released Date: 2016/10/12 Doc No :GD1610002 Page 1/2 Absolute Maximum Rating @ Ta=25°C Parameter Maximum Rating Unit Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) 80 mA Power Dissipation 75 mW Continuous Forward Current 20 mA Recommend Operating Current 12 mA Reverse Voltage 5 V Operating Temperature Range -25°C to +85°C Storage Temperature Range -30°C to +85°C Lead-Free Solder Temperature (1/16 Inch Below Seating Plane) 260°C for 3 Sec Electrical / Optical Characteristic @ Ta=25°C Parameter Symbol Dominant Wavelength Min. Typ. Max. Unit Test Condition λd 640 nm IF=20mA Spectral Line Half-Width △λ 15 nm IF=20mA Forward Voltage VF 2.3 V IF=20mA Reverse Current IR 100 µA VR=5V Iv-m 2.0:1 Luminous Intensity Matching Rate 1.8 2.0 Grade IF=20mA Displays need to be stored in an environment below 30 degree and below 60% humidity. The lifetime of the displays is 1 year. REV.: A-1 Prepared by ZG.YANG (23228) Released Date: 2016/10/12 Doc No :GD1610002 Page 2/2
