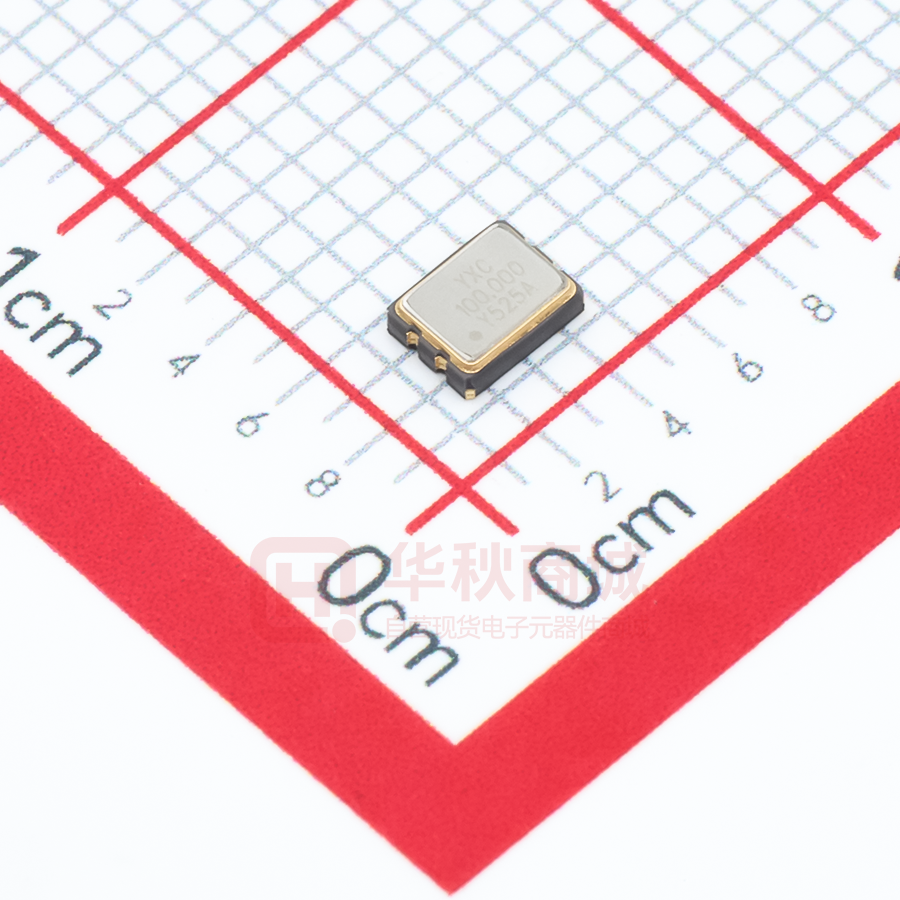

PROGRAMMABLE
CRYSTAL OSCILLATOR
YSO690PR
Low Jitter
Applications
Features
‧Any frequency
‧One time programmable
‧Low jitter design with new developed IC
‧PLL circuit provides wide frequency
‧Package Size: 2.0*1.6 , 2.5*2.0 , 3.2*2.5 , 5.0*3.2 , 7.0*5.0mm
range application (1-200MHz)
Specifications
Parameter
Frequency Range
Supply Voltage Variation (Vdd)10%
1.8V
2.5V
3.3V
1MHz to125MHz
1MHz to 200MHz
1MHz to 200MHz
1.62V~1.98V
2.25V~2.75V
2.97V~3.63V
Standby Current
400uA
Frequency Tolerance
±20ppm,±25ppm,±50ppm,or specify
Output Load
15pF
Operating Temperature Range
-40~+85℃,or specify
Storage Temperature Range
-55~+150℃
Voltage Vol ( Max. ) / Vol ( Min. )
VOH = 90%Vdd/VOL = 10%Vdd
Duty Cycle
45~55%
Period Jitter (@12K-20Mhz)
1.8V=1.5ps 2.5V=1.1ps 3.3V=1ps
Start-up Time
7ms Max.
Supply Current
See Below
Frequency Aging (at 25℃)
±3 ppm / year Max.
Pin Dimension
Pin
Symbol
Functionality
Output Enable
1
OE/ST/NC
Standby
No Connect
Pin Assignments
H:specified frequency output
L:output is low. Specified frequency output stop.
H:specified frequency output
L:output is low. Device goes to sleep mode. Supply current
reduces to 400uA(Standby Current).
Pin 1 = VDD or Pin 1 is Open : Specified frequency output.Pin 1
has no function
2
GNG
Power
Electrical ground
3
OUT
Output
Oscillator output
4
VDD
Power
Power supply voltage
Current Consumption
Supply
Voltage (V)
Power Dissipation
1.000~30.000MHZ
31.000~75.000MHZ
76.000~110.000MHZ
111.000~166.000MHZ
167.000~200.000MHZ
1.8V
18mA max
19mA max
20mA max
20mA max
20mA max
2.5V
21mA max
22mA max
23mA max
24mA max
25mA max
3.3V
23mA max
24mA max
25mA max
26mA max
27mA max
www.yxc.hk
第1页共4页
PROGRAMMABLE
CRYSTAL OSCILLATOR
YSO690PR
Low Jitter
Dimensions and Patterns [unit:mm]
Package Size – Dimensions (Unit: mm)
Recommended Land Pattern (Unit: mm)
#1
#3
#4
0.85max
#2
2.5±0.1
2.0±0.1
MARKING
#2
0.9 0.95 0.9
0.65
#1
0.68
2.5*2.0mm
#3
0.1
0.57±0.1 0.7±0.1
0.775 0.5 0.775
#4
0.8 0.65 0.8
MARKING
#1
#2
1.65±0.1
#4
Bottom
View
0.675 0.3 0.675
2.05±0.1
0.475±0.1 0.5±0.1 0.475±0.1
2.0*1.6mm
#3
0.78
0.8±0.1
0.95
0.4
3.2*2.5mm
3.2±0.15
1.3 1.0
1.3
#2
1.1 0.8 1.1
1.0
MARKING
2.5±0.1
0.65
#1
1.2
0.9
#3
0.9±0.1
#4
5.0*3.2mm
1.4
2.54±0.1
5.0±0.2
#2
2.2
1.0
#3
#4
1.2±0.1
MARKING
3.2±0.1
1.2
#1
1.2
2.54
www.yxc.hk
第2页共4页
PROGRAMMABLE
CRYSTAL OSCILLATOR
YSO690PR
Low Jitter
7.0*5.0mm
7.00±0.15
5.08±0.15
2.0
#3
3.28
1.4±0.1
#4
2.2
2.6±0.1
MARKING
#2
5.0±0.1
#1
1.4±0.15
0.6±0.15
1.8
Notes:
1.A capacitor of value 0.01uf~0.1uf or higher between Vdd and GND is required.
Reflow Soldering Profile
Pre Heating Temperature
Tp1 ~ Tp2 = + 170 °C
Heating Temperature
TMlt = + 220 °C
Peek Temperature
TMax. = + 260 °C
Temperature
+260℃
TMax.
+220℃
Point of measuring
In case of Solder ability Terminal.
In case of Resistance to soldering heat Surface.
Tmlt
Tp2
Tp1
35s
100s
t(time)
Test Circuit
www.yxc.hk
第3页共4页
PROGRAMMABLE
CRYSTAL OSCILLATOR
YSO690PR
Low Jitter
Taping Specification(Unit: mm)
Size(OSC)
A
B
C
D
E
F
G
H
SMD-7050
180±2.0
16.0±0.3
7.50±0.1
5.50±0.1
8.0±0.1
2.00±0.1
61.0±1.0
16.0±1.0
SMD-5032
180±2.0
12.0±0.3
5.40±0.1
3.60±0.1
8.0±0.1
1.70±0.1
61.0±1.0
12.0±1.0
SMD-3225
180±2.0
8.0±0.3
3.40±0.1
2.70±0.1
4.0±0.1
1.50±0.1
61.0±1.0
8.0±1.0
SMD-2520
180±2.0
8.0±0.3
2.90±0.1
2.40±0.1
4.0±0.1
1.20±0.1
61.0±1.0
8.0±1.0
SMD-2016
180±2.0
8.0±0.3
2.30±0.1
1.90±0.1
4.0±0.1
0.95±0.1
61.0±1.0
8.0±1.0
www.yxc.hk
第4页共4页
