BT131-89-2L

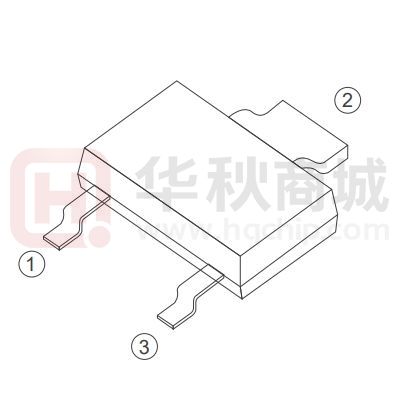

BT131 Series 1A TRIACs 4 Quadrants TRIACs ShenZhenHanKingyuan Electronic CO.,Ltd TRIACs BT131 Series 4 Quadrants ShenZhenHanKingyuan Electronic CO.,Ltd 01. 1 2 3 1 3 2 SOT-223 TO-92 2 1 1 2 3 3 SOT-223-2L SOT-89 2 1 3 SOT-89-2L FEATURES IT(RMS): 1A VGT: 1.2V VDRM VRRM:600Vand800V APPLICATIONS Washing machine,vacuums, massager,solid state relay，AC Motor speed regulation and so on. www.scr-ky.com PAGE.01/06 TRIACs BT131 Series 4 Quadrants ShenZhenHanKingyuan Electronic CO.,Ltd Absolute Maximum Ratings (Tj=25°C unless otherwise specifed) Symbol Parameter VDRM VRRM Conditions Ratings Unit BT131 600-800 V Tc=110°C 1 A Surge On-State Current Tp=10ms 12 A I²t for fusing Tp=10ms 0.72 A²s Tj=125°C 0.3 W tp=20us Tj=125°C 1.2 A Operating Junction Temperature ～40~125 °C Storage Temperature ～40~150 °C Repetitive Peak Off-State Voltage IT(RMS) R.M.S On-State Current ITSM I²t PG(AV) Average Gate Power Dissipation IGM Tj TSTG Peak Gate Current Electrical Characteristics (Tj=25°C unless otherwise specifed) Symbol Parameter IDRM Repetitive Peak Off-State Current IRRM Repetitive Peak Reverse Current VTM Forward "on" voltage VGD Gate non-trigger voltage IH 02. Holding current I,II,III IV VGT Gate trigger voltage IGT Gate trigger current di/dt Critical-rate of rise of commutation current. dv/dt Critical-rate of rise of commutation voltage www.scr-ky.com Test Conditions Value Unit Tj=25°C ≤10 uA Tj=110°C ≤200 uA Tj=25°C ≤10 uA Tj=110°C ≤200 uA IT=1.6A tp=380us ≤1.5 V VD=VDRM, Tj=110°C ≥0.2 V ≤5 mA ≤10 mA ≤1.2 V ≤3 mA ≤7 mA VD=12V ,IGT=0.1A VD=12V I,II,III IV I,II,III IV VD=12V IT=1A IG==0.2A,dIg/dt=0.2A/us ≥50 A /us ≥10 A /us TJ=110°C VD=2/3VDRM ≥30 V/us PAGE.02/06 TRIACs BT131 Series 4 Quadrants ShenZhenHanKingyuan Electronic CO.,Ltd FIG1 03. FIG2 RMS on-state current versus case temperature Maximum power dissipation versus RMS on-state current IT(RMS) (A) 1.2 P(w) 1.6 α=180° TO-92 1.0 SOT-89-2L SOT-89 SOT-223 SOT-223-2L 1.2 0.8 0.8 0.6 0.4 0.4 0.2 0 0 IT(RMS) (A) 0.4 0.6 0.2 0.8 1.0 TC (℃) 0 0 25 FIG3 50 75 100 125 4 5 FIG4 On-state characteristics (maximum values) Surge peak on-state current versus number of cycles ITM (A) ITSM (A) 20 20 t=20ms 10 One cycle 16 Tj=Tjmax 12 1 8 Tj=25℃ 4 0 1 10 Number of cycles 100 1000 0.1 0 1 FIG5 FIG6 FIG.6: Relative variations of gate trigger current, holding current and latching current versus junction temperature Non-repetitive surge peak on-state current for a sinusoidal pulse with width tp
