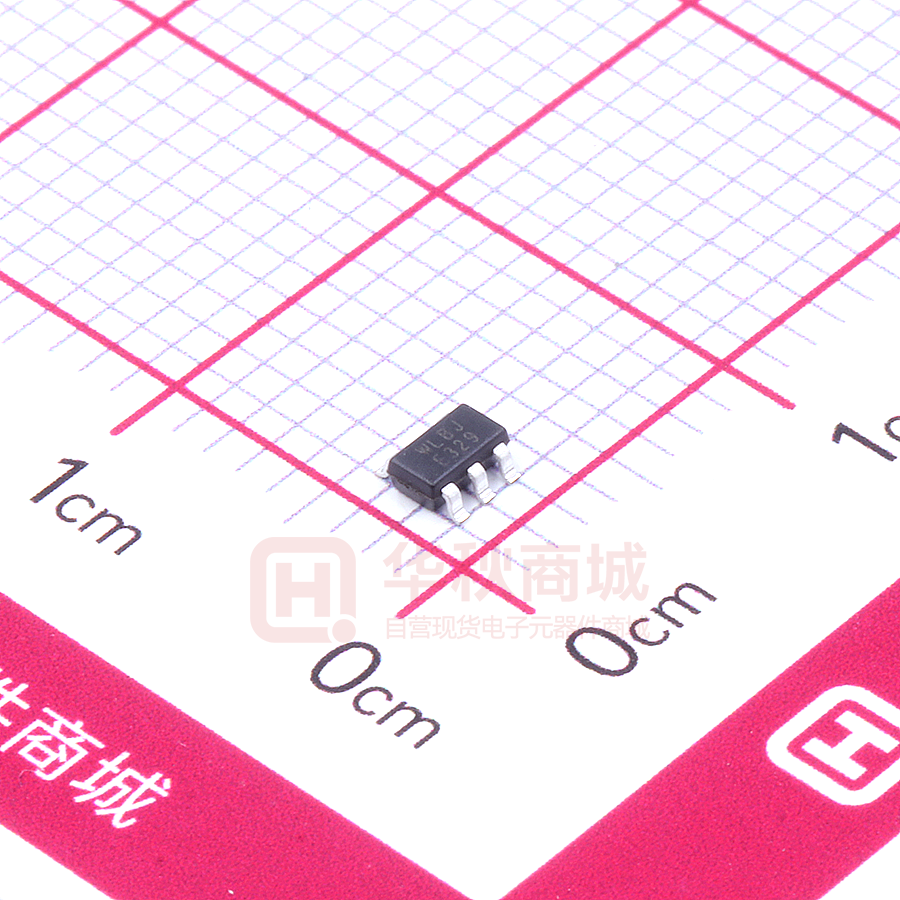

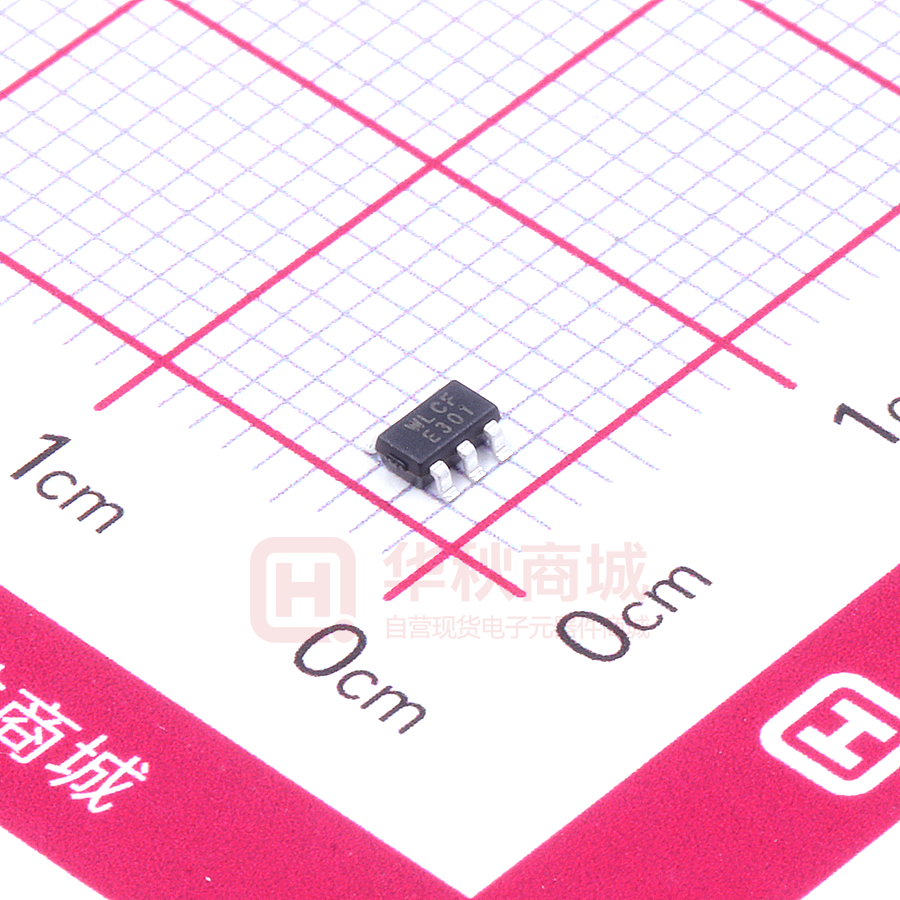

WL2808E18-5/TR

WL2808E WL2808E Low noise, High PSRR, High speed, CMOS LDO http://www.omnivision-group.com/ Descriptions The WL2808E series is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. SOT-23-5L The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. The WL2808E regulators are available in standard SOT-23-5L packages. Standard products are Pb-free and Halogen-free. Features Pin Configuration (Top View)  Input voltage : 2.5V~5.5V  Output range : 1.2V~3.3V  Output current : 200mA (@VOUT2V)(Typ.) ****   PSRR : 75dB @ 217Hz  Dropout voltage : 170mV @ IOUT=200mA  Quiescent current : 30μA Typ.  Shut-down current : < 1μA  Recommend capacitor : 1uF For detail marking information, please see page 8. Marking Applications  MP3/MP4 Players  Cellphones, radiophone, digital cameras  Bluetooth, wireless handsets  Others portable electronics device Will Semiconductor Ltd. Order Information For detail order information, please see page 8. 1 Jun. 2021 – Rev.1.7 WL2808E Typical Application VIN 1uF ON 1 Pin Description 5 2 3 VOUT 1uF 4 PIN Symbol Description 1 VIN Input 2 GND Ground 3 EN Enable (Active high) 4 NC Not connected 5 VOUT Output OFF Block Diagram Will Semiconductor Ltd. 2 Jun. 2021 – Rev.1.7 WL2808E Absolute Maximum Ratings Parameter Value Unit Power Dissipation Internal limited VIN Range -0.3～6.5 V VEN Range -0.3～VIN V VOUT Range -0.3～VIN V Lead Temperature Range 260 o Storage Temperature Range -55 ~ 150 o Operating Junction Temperature Range 150 o mW C C C Recommend Operating Ratings Parameter Value Operating Supply voltage 2.5～5.5 Operating Temperature Range -40～85 Thermal Resistance, RθJA Unit V C o oC/W 250 Electronics Characteristics (Ta=25oC, VIN=VOUT+1V, CIN=COUT=1uF, unless otherwise noted) Parameter Symbol Condition VOUT
