YHE12-05ST SPEC V1.0
规格书
Specification
品 名
YHE12-05ST
Model name
PROPRIETARY
Huayu Electronic co.,Ltd.
CONFIDENTIAL
Huayu Electronic co.,Ltd.
Version #
Spec V1.0
制作日期
Date
2018/4/01
准备
Prepared
Yi Shen
Acoustic specialist,R&D Dept.
承认
Approved
Qian Wanjin
Executive Manager,R&D Dept.
兴化市华宇电子有限公司
地址:江苏省兴化市陈堡工业区人民路 1 号
电话:13625199874 传真:0523-83723118
邮箱:391245375@qq.com 网址:www.js-huayu.com
Components Operating Div.
Huayu Electronic co.,Ltd.
YHE12-05ST SPEC V1.0

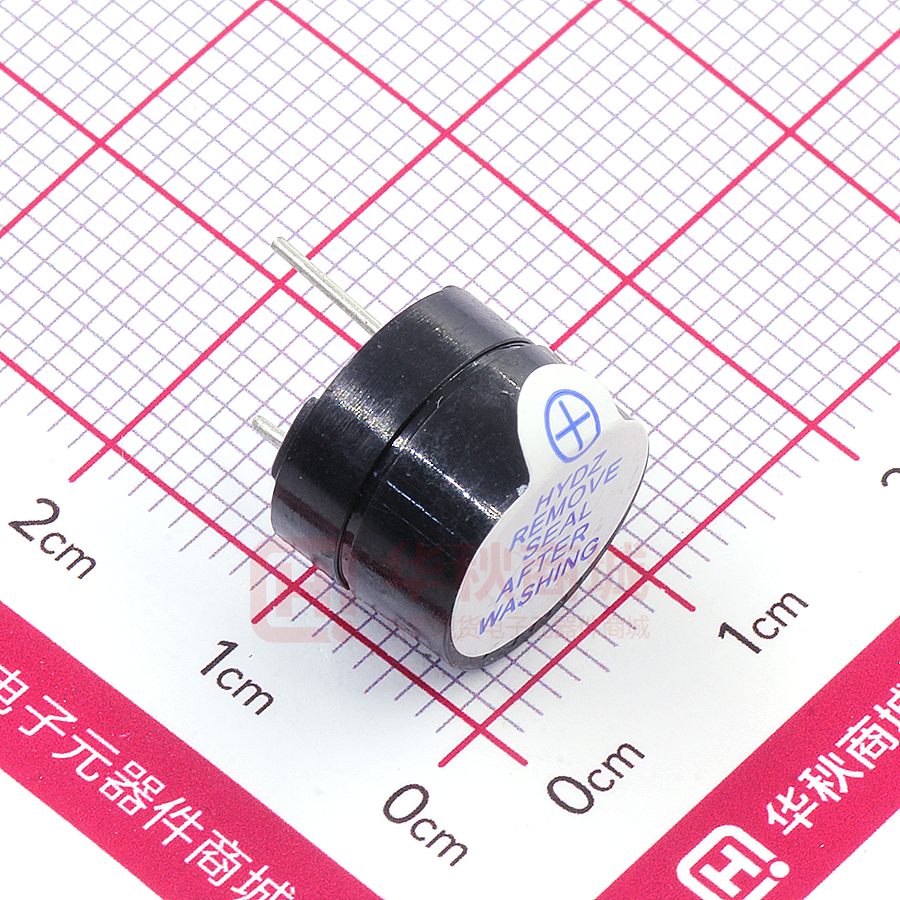

1.适用范围:本规范适用于 YHE12-05ST 5V 蜂鸣器。
This specifications apply the YHE12-05ST 5V buzzer.
2.基本规格/General specification
项目/Item
规格/Spec
1
额定电压 Rated voltage
2
工作电压 Operation voltage
3
声压 Sound Pressure Level=SPL
Min 85dB
4
电流 current
Max30mA
5
振荡频率 Oscillation frequency
6
工作温度范围 Operating Temperature
-20~+70℃
7
保存温度范围 Storage temperature
-30~+80℃
8
外部尺寸 Externals size (mm)
φ12*H9.5
9
重量 Mass
10
材质 Housing Material
条件/Condition
5V
4~8V
2400±400Hz
测试环境:标准状态,标准驱动
电路,额定电压
测试距离:0.1m
Standard
Resonant frequency, 1/2 duty cycle. Square wave.
Signal amplitude should be large enough tosaturate the
transistor.
Drive
Circuit.
Rated voltage,Distance at 0.1m
参阅附图 Refer to the attached drawing
1.8g
3. 电气和声学测试条件/Electrical And Acoustical Measuring Condition
驱动电路/Recommended Driving Circuit
State,Standard
设置 Recommended Setting
4.可靠性规范/Reliability specification
1
YHE12-05 ST
5V
项目 ITEM
测试方法 TEST
高温试验
在+80℃±2℃储存温度下存放 96 小时,恢复 2 小时后测试
High Temperature Test
After being placed in a chamber with +80±2℃ for 96 hours and then being
placed in normal condition for 2 hours
2
低温试验
在-20℃±2℃储存温度下存放 96 小时,恢复 2 小时后测试
Low Temperature Test
After being placed in a chamber with -20±2℃ for 96 hours and then being
placed in normal condition for 2 hours
3
恒定湿热试验
Humidity Test
4
温度变化试验
Temperature Cycle Test
5
振动试验
Vibration Test
6
跌落试验
70cm 高自由掉落到 40mm 的木板上,每个方向三次
Drop Test
Drop on a hard wood board of 40mm thick,any directions, three times, at the
height of 70cm
7
8
插针的抗拉强度试验
插针承受 1.0kg 拉力,负荷时间 5s
Terminal Strength Pulling Test
The force 5 seconds of 1.0kg is applied to each terminal.
可焊性试验
焊锡温度 250±5℃,浸润时间为 3±0.5s,试验后目测产品情况
Solder ability Test
Lead terminals are immersed in rosin for 5 seconds and then immersed in
solder bath of 250±5℃ for 3±0.5 seconds.
9
回流焊测试
Soldering Test
5.尺寸图/Dimension
(UNT:mm)
Tolerance:±0.5mm Except Specified
6.频率图/Frequency Curve
5Vo-p 50% duty Square wave,10cm
7.Packing Method/包装图
