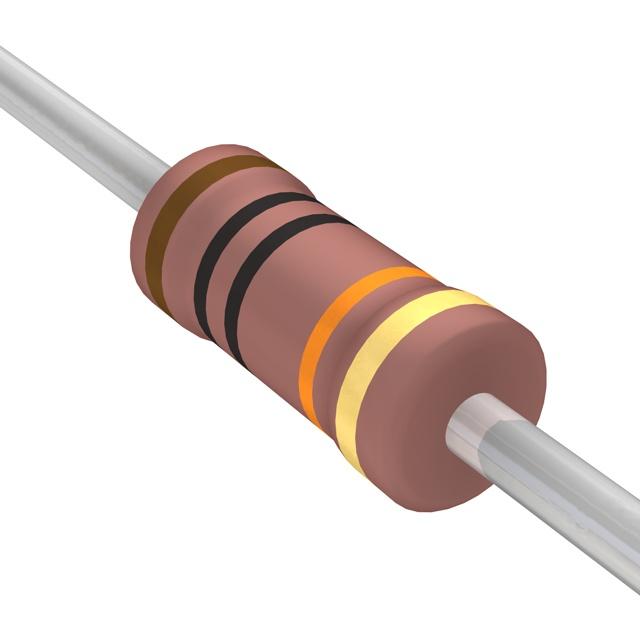

leaded resISTORS High Power Type Metal Film Resistors Ultra Miniature Style [ FMP Series ] FEATURES Power Rating 1/2W, 1W, 2W, 3W,4W Resistance Tolerance ±1%, ±5% T.C.R. ±100ppm/°C Flameproof Multi-layer Coating Meets UL-94V-0 Flameproof Feature Meets Overload Test UL-1412 INTRODUCTION DERATING CURVE The FMP Series Metal Film High Power Resistors are manufactured using a vacuum sputtering system to deposit multiple layers of mixed metal alloys and passivative materials onto a carefully treated high grade ceramic substrate. After a helical groove has been cut in the resistive layer, tinned connecting leads of electrolytic copper are welded to the end-caps. The resistors are coated with layers of pink color lacquer. For resistors operated in ambient temperatures above 70°C, power rating must be derated in accordance with the curve below. Rated Load (%) 70 155 °C 100 80 60 40 20 20 40 60 80 Ambient Temperature (°C) 100 120 140 160 DIMENSIONS Unit: mm ød H L øD STYLE DIMENSION Ultra Miniature L øD H ød FMP-50 3.4±0.3 1.9±0.2 28±2.0 0.45±0.05 FMP100 6.3±0.5 2.4±0.2 28±2.0 0.55±0.05 FMP200 9.0±0.5 3.9±0.3 26±2.0 0.55±0.05 FMP3WS 11.5±1.0 4.5±0.5 35±2.0 0.8±0.05 FMP300 15.5±1.0 5.0±0.5 33±2.0 0.8±0.05 FMP4WV 17.0±1.0 7.5±0.5 32±2.0 0.8±0.05 15 Note: ELECTRICAL CHARACTERISTICS STYLE FMP-50 FMP100 FMP200 FMP3WS FMP300 Power Rating at 70°C 1/2W 1W 2W 3W Maximum Working Voltage 200V 350V 500V 750V Maximum Overload Voltage 400V 600V 700V 1,000V Voltage Proof 300V 500V Resistance Range 1 Ω - 10M Ω & 0 Ω for E24 & E96 series value Operating Temp. Range -55°C to +155°C Temperature Coefficient ±100ppm/°C FMP4WV 4W 750V Note: Special value is available on request ENVIRONMENTAL CHARACTERISTICS PERFORMANCE TEST TEST METHOD Short Time Overload IEC 60115-1 4.13 2.5 times RCWV for 5 Sec. ±0.5%+0.05 Ω Voltage Proof IEC 60115-1 4.7 in V-block for 60 Sec., test voltage by type By type Temperature Coefficient IEC 60115-1 4.8 -55°C to +155°C By type Insulation Resistance IEC 60115-1 4.6 in V-block for 60 Sec. >1,000M Ω Solderability IEC 60115-1 4.17 235±5°C for 3±0.5 Sec. 95% Min. coverage Solvent Resistance of Marking IEC 60115-1 4.30 IPA for 5±0.5 Min. with ultrasonic No deterioration of coatings and markings Robustness of Terminations IEC 60115-1 4.16 Direct load for 10 Sec. in the direction of the terminal leads ≥2.5kg (24.5N) Periodic-pulse Overload IEC 60115-1 4.39 4 times RCWV 10,000 cycles (1 Sec. on, 25 Sec. off) ±1.0%+0.05 Ω Damp Heat Steady State IEC 60115-1 4.24 40±2°C, 90-95% RH for 56 days, loaded with 0.1 times RCWV ±2.0%+0.05 Ω Endurance at 70°C IEC 60115-1 4.25 70±2°C at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off) ±2.0%+0.05 Ω Temperature Cycling IEC 60115-1 4.19 -55°C  Room Temp.  +155°C  Room Temp. (5 cycles) ±1.0%+0.05 Ω Resistance to Soldering Heat IEC 60115-1 4.18 260±3°C for 10±1 Sec., immersed to a point 3±0.5mm from the body ±0.25%+0.05 Ω Accidental Overload Test IEC 60115-1 4.26 4 times RCWV for 1 Min. No evidence of flaming or arcing Note: Rated Continuous Working Voltage (RCWV) =  APPRAISE Power Rating x Resistance Value
