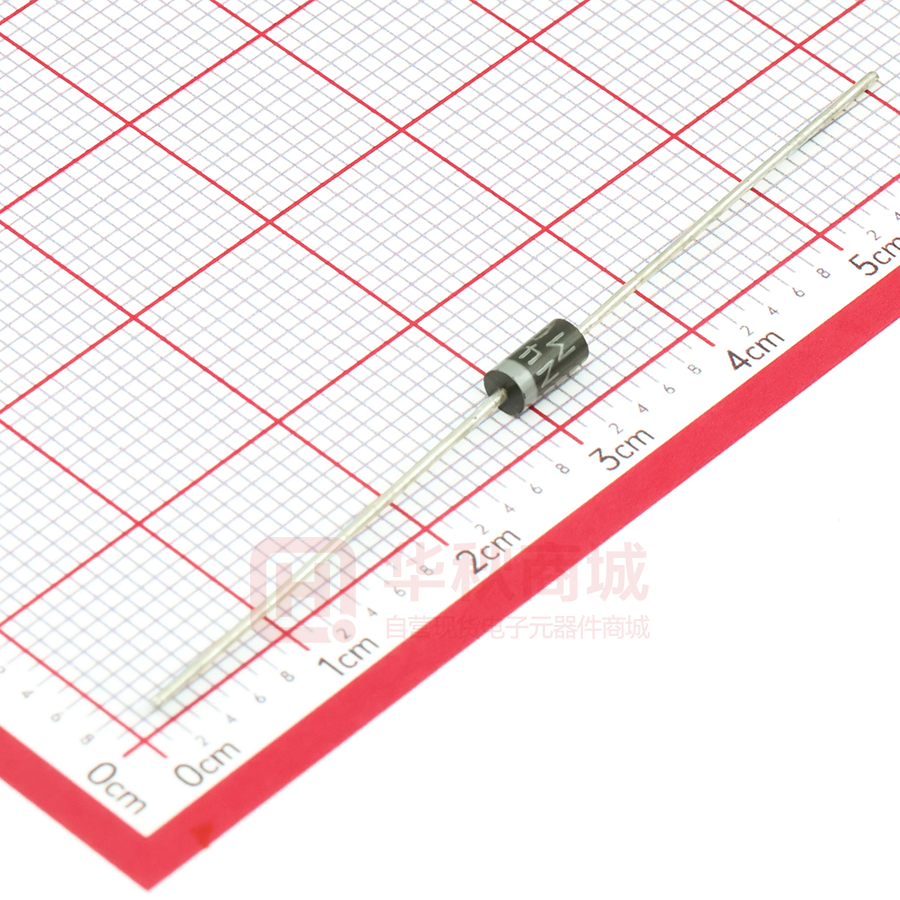

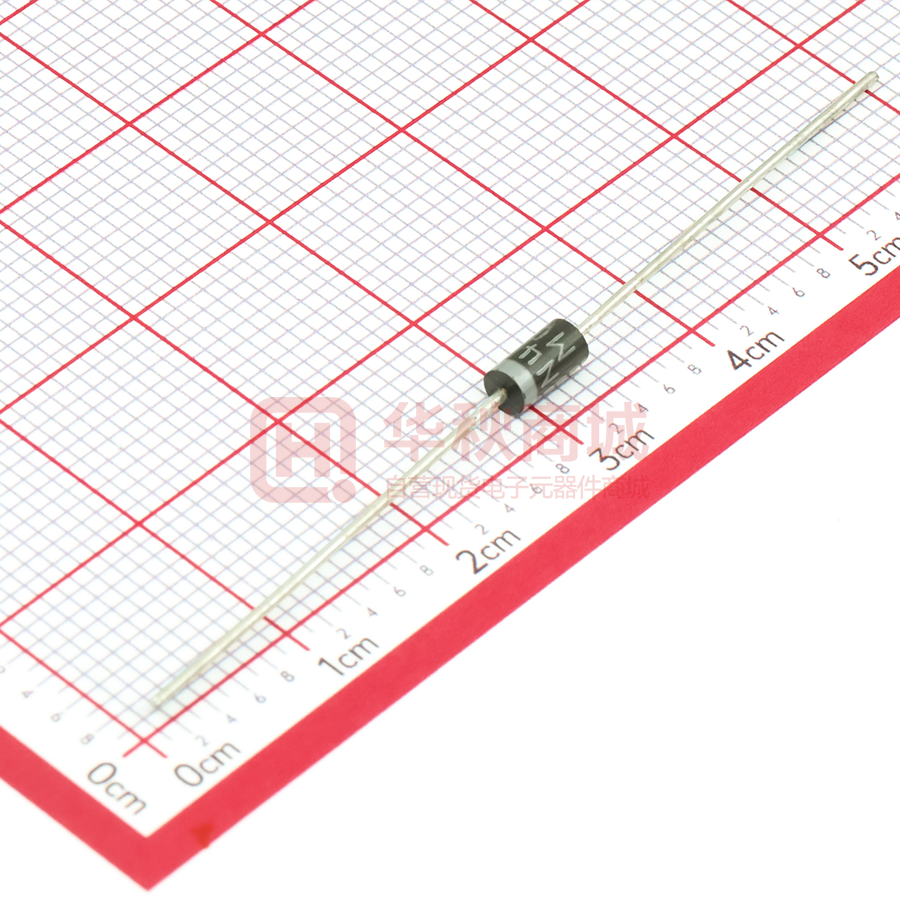

1N4001

1N4001 THRU 1N4007 Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere SURFACE MOUNT GENERAL RECTIFIER Features PINNING 1 Cathode  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 2 Anode  Idea for printed circuit board PIN DESCRIPTION  Glass passivated Junction chip  Low reverse leakage  High forward surge current capability DO-214AC/SMA  High temperature soldering guaranteed 250 C/10 seconds at terminals 2 1 Mechanical Data  Case : JEDEC DO-214AC/SMA Molded plastic body  Terminals : Solder plated, solderable per MIL-STD-750,Method 2026  Polarity : Polarity symbol marking on body  Mounting Position : Any  Weight : 0.0023 ounce, 0.07 grams Unipolar Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=110℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current at rated DC blocking voltage TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction and storage temperature range VRRM VRMS VDC M1 M2 M3 M4 M5 M6 M7 50 35 50 100 70 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V I(AV) 1.0 A IFSM 30 A VF 1.1 V 5 50 15.0 IR CJ RθJA 75.0 TJ,TSTG -55 to +150 Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas www.tw-gmc.com 100 UNITS 1 uA pF ℃/W ℃ 1N4001 THRU 1N4007 Reverse Voltage - 50 to 1000 Volts Fig.2 Typical Instaneous Reverse Characteristics Fig.1 Forward Current Derating Curve Instaneous Reverse Current ( μ A) Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 75 50 100 125 150 175 100 T J =150°C 10 T J =125°C T J =100°C 1.0 T J =75°C 0.1 T J =25°C 0.01 0 Junction Capacitance ( pF) TJ = 2 5° C 00 =1 TJ =1 25 °C °C 0.5 TJ Instaneous Forward Current (A) 1.0 0.9 0.2 1.0 1.1 Peak Forward Surage Current (A) T J =25°C 10 30 25 20 15 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 1.0 10 Reverse Voltage (V) 35 100 Number of Cycles www.tw-gmc.com 100 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 1 800 1 0.7 Instaneous Forward Voltage (V) 05 600 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 0.8 400 200 Instaneous Reverse Voltage (V) Case Temperature (°C) 0.1 0.6 Forward Current - 1.0 Ampere 2 100 1N4001 THRU 1N4007 Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere PACKAGE OUTLINE Plastic surface mounted package; 2 leads A A SMA c a VM e A HE g e E A D E HE c e g max 2.2 4.5 2.7 5.2 0.31 1.6 1.5 min 1.9 4.0 2.3 4.7 0.15 1.3 0.9 max 87 181 106 205 12 63 59 min 75 157 91 185 6 51 35 UNIT mm mil g e A D The recommended mounting pad size 2.4 (94) 1.8 (71) 1.8 (71) 1.8 (71) mm Unit ： (mil) www.tw-gmc.com 3 a 0.3 12
