VS-30BQ100-M3
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Cathode
MARKING DIAGRAMS
Anode
SMC

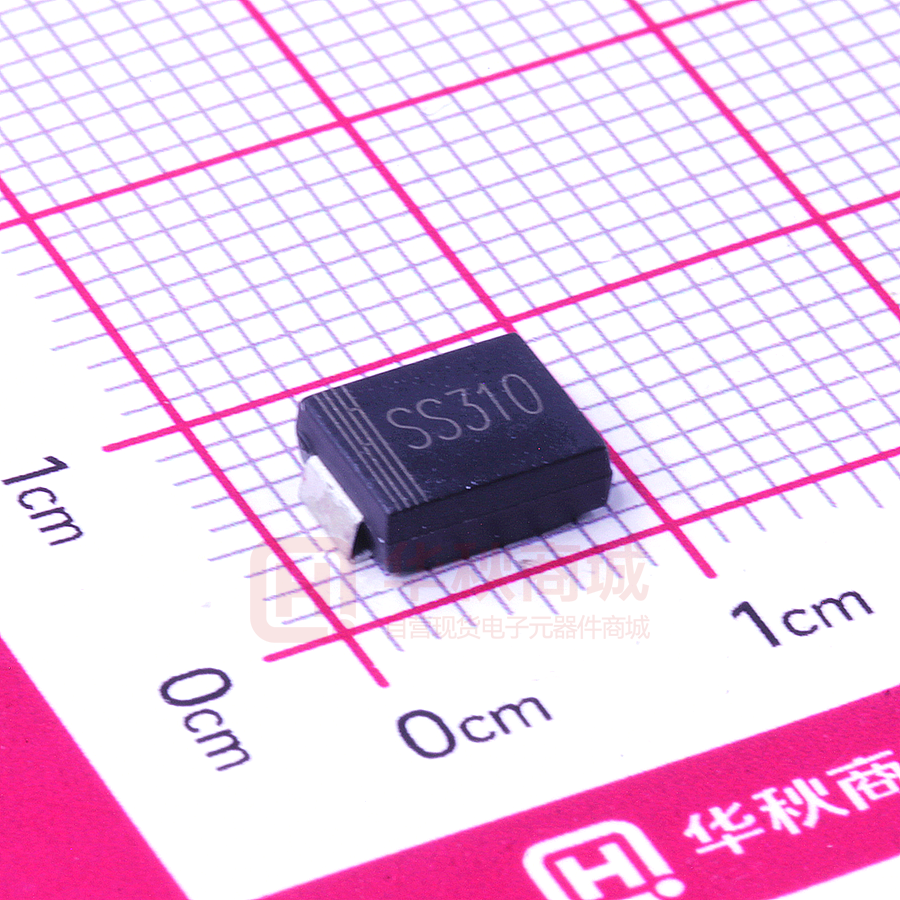

SS310
PRODUCT SUMMARY
Package
SMC
IF(AV)
3.0 A
VR
100 V
VF at IF
0.62 V
IRM
5 mA at 125 °C
TJ max.
175 °C
Diode variation
Single die
EAS
3.0 mJ
ORDERING INFORMATION
Device
SS310
Package
Shipping†
SMC
(Pb−Free)
3000 /
Tape & Reel
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
CHARACTERISTICS
IF(AV)
Rectangular waveform
VRRM
IFSM
tp = 5 μs sine
VF
3.0 Apk, TJ = 125 °C
TJ
Range
VALUES
UNITS
3.0
A
100
V
800
A
0.62
V
-55 to +175
°C
VOLTAGE RATINGS
PARAMETER
SYMBOL
Maximum DC reverse voltage
Maximum working peak reverse voltage
VS-30BQ100-M3
UNITS
100
V
VR
VRWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
SYMBOL
IF(AV)
TEST CONDITIONS
VALUES
50 % duty cycle at TL = 148 °C, rectangular waveform
3.0
50 % duty cycle at TL = 138 °C, rectangular waveform
4.0
5 μs sine or 3 μs rect. pulse
Following any rated
load condition and with
rated VRRM applied
800
UNITS
A
Maximum peak one cycle
non-repetitive surge current
IFSM
Non-repetitive avalanche energy
EAS
TJ = 25 °C, IAS = 1.0 A, L = 6 mH
3.0
mJ
Repetitive avalanche current
IAR
Current decaying linearly to zero in 1 μs
Frequency limited by TJ maximum VA = 1.5 x VR typical
0.5
A
10 ms sine or 6 ms rect. pulse
www.tokmas.com
70
VS-30BQ100-M3
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
TEST CONDITIONS
3A
Maximum forward voltage drop
VFM (1)
TJ = 25 °C
6A
3A
TJ = 125 °C
6A
TJ = 25 °C
VR = Rated VR
VALUES
UNITS
0.79
0.90
V
0.62
0.70
0.5
mA
Maximum reverse leakage current
IRM
Maximum junction capacitance
CT
VR = 5 VDC (test signal range 100 kHz to 1 MHz), 25 °C
115
pF
Typical series inductance
LS
Measured lead to lead 5 mm from package body
3.0
nH
10 000
V/μs
VALUES
UNITS
-55 to +175
°C
Maximum voltage rate of change
dV/dt
TJ = 125 °C
Rated VR
5.0
Note
(1) Pulse width = 300 μs, duty cycle = 2 %
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
SYMBOL
Maximum junction and
storage temperature range
TJ (1), TStg
Maximum thermal resistance,
junction to lead
Maximum thermal resistance,
junction to ambient
TEST CONDITIONS
12
RthJL
DC operation
0.24
Approximate weight
Marking device
°C/W
46
RthJA
g
0.008
Case style SMC (similar to DO-214AB)
www.tokmas.com
oz.
3J
10
10
1
IR - Reverse Current (mA)
IF - Instantaneous Forward Current (A)
VS-30BQ100-M3
TJ = 175 °C
TJ = 125 °C
TJ = 25 °C
0.1
TJ = 175 °C
1
TJ = 150 °C
TJ = 125 °C
0.1
TJ = 100 °C
0.01
TJ = 75 °C
0.001
TJ = 50 °C
0.0001
TJ = 25°C
0.00001
0
0.2
0.4
0.6
0.8
1
1.2
0
20
40
60
80
100
VFM - Forward Voltage Drop (V)
VR - Reverse Voltage (V)
Fig. 1 - Maximum Forward Voltage Drop Characteristics (Per Leg)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage (Per Leg)
CT - Junction Capacitance (pF)
1000
100
TJ = 25 °C
10
0
20
40
60
VR - Reverse Voltage (V)
ZthJC - Thermal Impedance (°C/W)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage (Per Leg)
100
10
PDM
t1
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
1
Single pulse
(thermal resistance)
0.1
0.00001
0.0001
0.001
0.01
0.1
t2
Notes:
1. Duty factor D = t1/t2 .
2. Peak TJ = PDM x ZthJC + TC
1
t1 - Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics (Per Leg)
www.tokmas.com
10
100
180
Average Power Loss (W)
2.5
160
DC
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
140
Square wave (D = 0.50)
80% rated Vr applied
120
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
2.0
1.5
RMS limit
1.0
DC
0.5
See note (1)
100
0
0
1
2
3
4
0
5
0.5
1.0
1.5
2.0
2.5
3.0 3.5
4.0
4.5
IF(AV) - Average Forward Current (A)
IF(AV) - Average Forward Current (A)
Fig. 5 - Maximum Average Forward Current vs.
Allowable Lead Temperature
Fig. 6 - Maximum Average Forward Dissipation vs.
Average Forward Current
IFSM - Non-Repetitive Surge Current (A)
Allowable Lead Temperature (°C)
VS-30BQ100-M3
1000
100
At any rated load condition
and with rated VRRM applied
following surge
10
10
100
1000
10 000
tp - Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Peak Surge Forward Current vs. Pulse Duration
www.tokmas.com
VS-30BQ100-M3
DIMENSIONS in inches (millimeters)
DO-214AB (SMC)
Cathode band
Mounting Pad Layout
0.185 (4.69) MAX.
0.246 (6.22)
0.220 (5.59)
0.126 (3.20)
0.114 (2.90)
0.126 (3.20) MIN.
0.280 (7.11)
0.260 (6.60)
0.060 (1.52) MIN.
0.012 (0.305)
0.006 (0.152)
0.103 (2.62)
0.079 (2.06)
0.060 (1.52)
0.030 (0.76)
0.008 (0.2)
0 (0)
0.320 (8.13)
0.305 (7.75)
www.tokmas.com
0.320 (8.13) REF.
