MUR1060AC-FAC-DC
ULTRAFST RECOVERY RECTIFIERS
Reverse Voltage - 600 V
Forward Current - 10 A
FEATURES
High speed switching capability
High current capability
High forward surge capability
Low power losses,High efficiency
For use in low voltage, high frequency inverters
Lead free in comply with EU RoHS 2011/65/EU directives
MECHANICAL DATA
Case: TO-220AC TO-220FAC TO-263/DC
Solder bath temperature275℃maximum,10s per JESD22-106
Primary Characteristic
Io
VRRM
IFSM
VF
TJ Max
10A
600V
100A
1.03V
150°C
Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified
Parameter
Symbols
Value
Units
Maximum Repetitive Peak Reverse Voltage
VRRM
600
V
Maximum RMS voltage
VRMS
600
V
Maximum DC Blocking Voltage
VDC
600
V
Io
10
A
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
IFSM
100
A
Operating Temperature Range
TJ
150
°C
TSTG
-40 ~ +150
°C
RθJA/ RθJC
2/4
°C/W
Value
Units
Maximum Average Forward Rectified Current
Storage Temperature Range
Typical Thermal Resistance (Note1)
TO-220AC TO-263/DC TO-220FAC
Note1: Thermal resistance from Junction to case per leg mounted on heatsink.
Electrical Characteristics (Per Leg) unless otherwise specified
Characteristics
Symbols
Typ
Max
TA=25°C
1.05
-
TA=125°C
0.84
-
1.15
-
TA=125°C
0.93
-
TA=25°C
1.25
1.59
TA=125°C
1.03
-
0.05
1
2
-
-
35.00
Forward Voltage Drop(Note2)
at IF=3A
at IF=5A
at IF=8A
Maximum Reverse Current at VR=600V
TA=25°C
TA=25°C
TA=25°C
Maximum Reverse Recovery Time at IF=0.5A, IR=1A, IRR=0.25A
Note2:Pulse test: 300 μs pulse width, 1 % duty cycle
www.yfwdiode.com
VF
IR
TRR
1/4
V
uA
uA
nS
G uangDong YFW Electronics Co, Ltd.
MUR1060AC-FAC-DC
RATINGS AND CHARACTERISTIC CURVES
8.3ms Single Half Sine Wave
JEDEC Method
TA=125℃
TA=125℃
TA=25℃
TA=25℃
Marking on the body
Ordering information
Part Number
Package
Unit Weight
Base Quantity
Delivery mode
MUR1060
TO-220AC
0.07oz(1.96g)
50 pcs / tube
1000pcs/box 5000pcs/carton

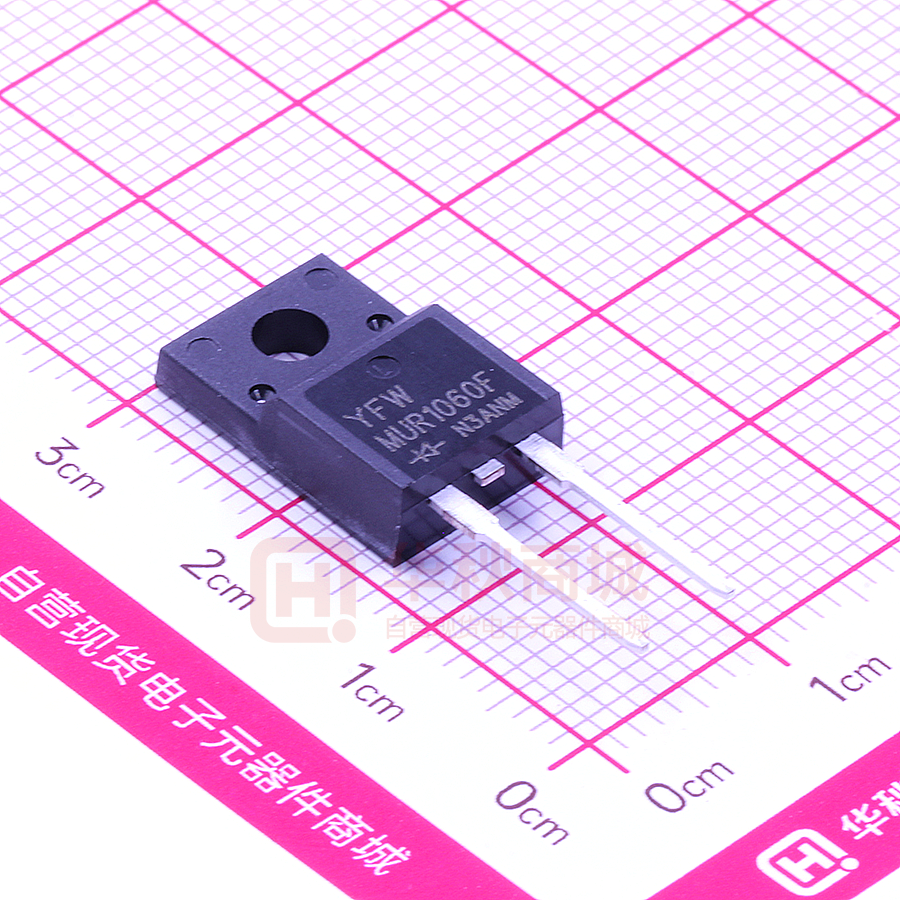

MUR1060F
TO-220FAC
0.06oz(1.74g)
50 pcs / tube
1000pcs/box 5000pcs/carton
MUR1060DC
TO-263
0.04oz(1.16g)
50 pcs / tube
1000pcs/box 5000pcs/carton
MUR1060DC-R
TO-263
0.04oz(1.16g)
800 pcs / reel
800pcs/box4000pcs/carton
Note: For Halogen Free molding compound, add "H" suffix to part number above.
www.yfwdiode.com
2/4
G uangDong YFW Electronics Co, Ltd.
MUR1060AC-FAC-DC
Package Outline Dimensions millimeters
www.yfwdiode.com
3/4
G uangDong YFW Electronics Co, Ltd.
MUR1060AC-FAC-DC
www.yfwdiode.com
4/4
G uangDong YFW Electronics Co, Ltd.
