71F-187-20

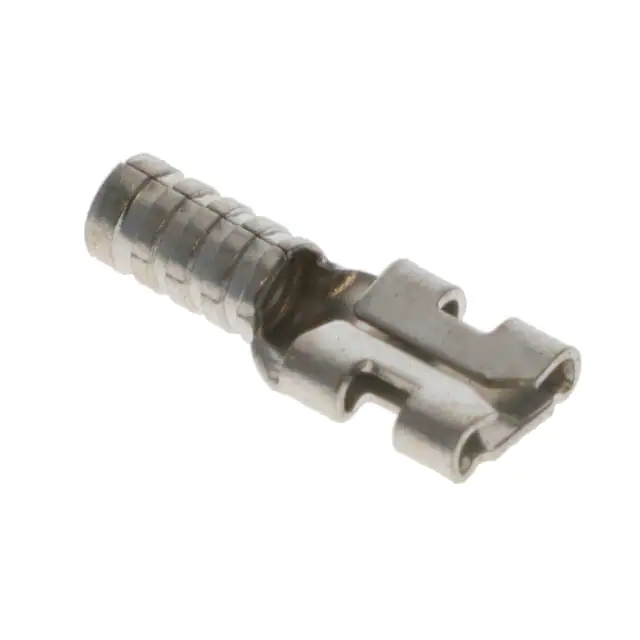

Specialty Terminals 71F-187-20, 72F-187-20 W´ Female Disconnect, Non-Insulated, Butted Seam L Data Sheet Product Number Wire Range (AWG) Mates with Male Tab Width (W´ ) x Thickness L Barrel Length Barrel I.D. 71F-187-20 22-18 0.187 x 0.020 0.58 0.25 0.085 72F-187-20 16-14 0.187 x 0.020 0.58 0.25 0.085 Installation Information
WARNING UNDERWRITERS LABORATORIES STANDARD NO. UL 486A 3M FILE NO. E70512 CANADIAN STANDARDS ASSOCIATION STANDARD NO. C22.2 NO. 0.65 3M FILE NO. LR22190 Turn power off before installing or removing terminal. All electrical work should be done according to appropriate electrical codes. UL Listed and CSA Certified or use on stranded copper (AWG) wire only. Strip away the end 3/8 inch of wire insulation. Make the crimp in the proper station of a recommended 3M crimp tool: TH-440, TH-450 (scissor style), or TR-490 (ratchet style) hand tools. Specifications Wire Size: Barrel Seam: Maximum Current: Terminal Material: Plating: See Table Above Butted Same as Wire Brass Tin Barrel Crimp (Required) Suitable for factory installation on steel or brass tabs, UL and CSA. Suitable for field application on brass tabs, strain relief is required, UL only. Engineering Specification Crimp-Type Female Disconnect Terminals shall, electrically and mechanically connect permanently to the prestripped end of a stranded copper wire, and have a tongue portion with fingers which grip a Male Disconnect in a separable, reusable manner, forming a Quick Connect Wiring Termination. The Non-Insulated Female Disconnect shall be tin plated 0.016˝ thick brass, with a tongue for gripping a 0.187˝ male tab of 0.20˝ thickness, and a butted seam barrel sized for specified (AWG) wire range (22-18, 16-14). The connector line shall offer a tongue variations (sized to grip male tabs: 0.187˝ or 0.250˝) and barrel variations in construction, non-insulated, nylon insulated with insulation grip, etc. The tongue portion shall be marked with the wire range and manufacturer’s symbol (
). 3M is a trademark of 3M Company. is a trademark of Underwriters Laboratories. is a trademark of Canadian Standards Association. IMPORTANT NOTICE Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Warranty; Limited Remedy; Limited Liability. This product will be free from defects in material and manufacture as of the date of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any loss or damage arising from this 3M product, whether direct, indirect, special, incidental or consequential regardless of the legal theory asserted. Electrical Products Division 6801 River Place Blvd. Austin, TX 78726-9000 http://www.3M.com/elpd Litho in USA. © 3M 2003 78-8126-5538-5-B
