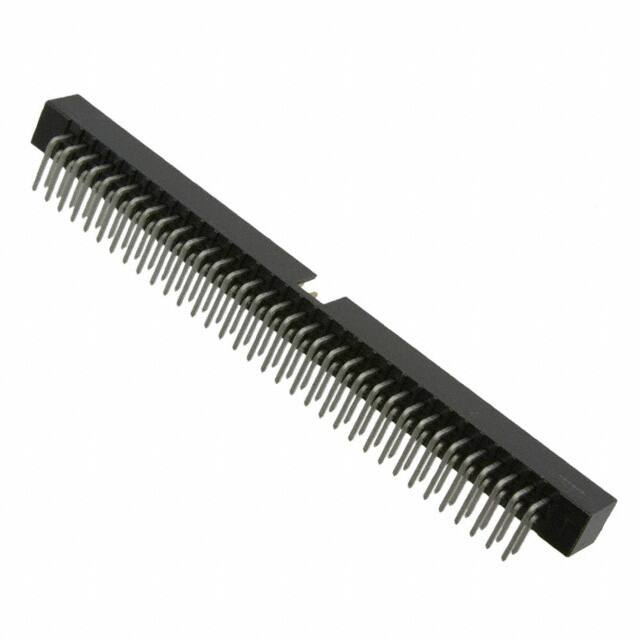

957268-5002-AR

8 7 6 5 4 3 2 1 NOTES 3MTM BOX HEADER, 957 SERIES 1. REGULATORY INFORMATION: ROHS COMPLIANT. SEE THE REGULATORY INFORMATION APPENDIX (RIA) IN THE "ROHS COMPLIANCE" SECTION OF WWW.3MCONNECTORS.COM FOR COMPLIANCE INFORMATION. 2MM X 2MM, STRAIGHT, RIGHT ANGLE AND SURFACE MOUNT, SOLDER TAIL 2 IN THE EVENT OF CONFLICT BETWEEN THIS DATA AND THAT CONTAINED IN THE PRODUCT SPECIFICATION, THE PRODUCT SPECIFICATION TAKES PRECEDENT. D N = THE NUMBER OF POSITIONS. 3 2 DUAL ROW STRAIGHT VERSION D PHYSICAL: INSULATOR: MATERIAL: FLAMMABILITY: COLOR: CONTACT: MATERIAL: PLATING: UNDER PLATING: WIPING AREA: SOLDER TAILS: HIGH TEMP THERMOPLASTIC UL94V-0 BLACK COPPER ALLOY 50-100 " [1.27-2.54 m] NICKEL-OVERALL GOLD FLASH 40-118 " [1-3 m] MATTE TIN C C 2 ELECTRICAL: CURRENT RATING: CONTACT RESISTANCE: INSULATION RESISTANCE: WITHSTANDING VOLTAGE: 2 2A 1000 M 500 Vr.m.s, 1mA, 60s MECHANICAL: A REVISION RETENTION FORCE: > 4.5N PER PIN DUAL ROW RIGHT ANGLE VERSION ENVIRONMENTAL: 78-5100-2656-6 2 DRAWING NUMBER TEMPERATURE RATING: -40 C TO 105 C HUMIDITY: 40 POS. 6.50 SQ. TYP. TYP. .10
