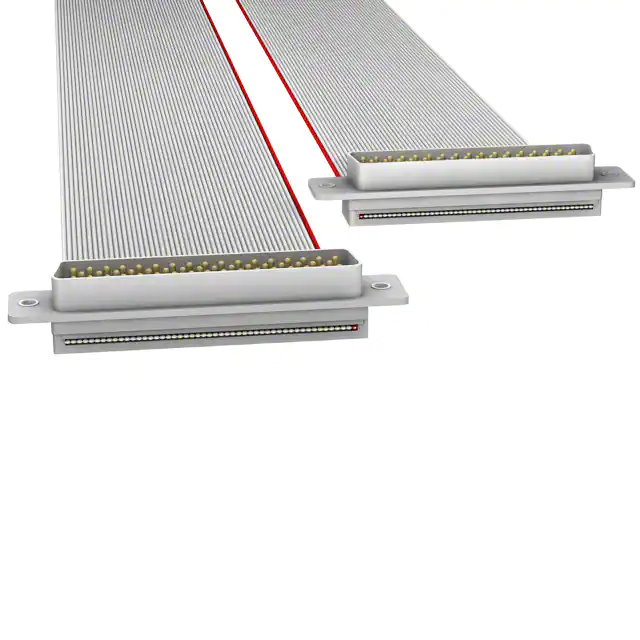

M7NNK-5010J

M7NNK-5010J

  • 厂商:

    3M

  • 封装:

    -

  • 描述:

    D-SUB CABLE MML50K/MC50G/MML50K

  • 详情介绍
  • 数据手册
  • 价格&库存
M7NNK-5010J 数据手册
3M™ D Sub Plug Connector, 8200 Series Plug Connector 8200 Series  Date Modified: July 29, 2019  • Available in either open or closed end cover • Available with dimples to aid in EMI/ESD protection • Improved metal strain relief hooks directly to metal shell • Low profile • Four mounting options • Regulatory Information: Visit 3M.com/regs or contact your 3M representative to find the RoHScompliance status of the 3M part you are interested in. TS-0234-J Sheet 1 of 3 Physical Insulation: Material: Glass Filled Polyester (PBT) Flammability: UL 94V-0 Color: Gray Contact: Material: Copper Alloy Plating: Underplating: 50 μ” [ 1.27 μm ] min Nickel Wiping Area: 30 μ” [ 0.76 μm ] Gold Shell Material: Steel Plating: Tin Strain Relief Material: Stainless Steel .016 [ 0.40 ] Thick Wire Accommodation: 26 and 28 AWG Solid or Stranded Marking: 3M Logo and Contact Position Numbers Electrical Current Rating: 1A Insulation Resistance: > 1 × 109Ω at 500 VDC Withstanding Voltage: 1000 VRMS at Sea Level Environmental Temperature Rating: -55°C to +105°C UL File No.: E68080 Electronics Materials Solutions Division Interconnect Solutions http://www.3M.com/interconnect 3M is a trademark of 3M Company. For technical, sales or ordering information call 800-225-5373 3M™ D Sub Plug Connector, 8200 Series Plug Connector 8200 Series Dimensions Contact Quantity A B C D E F ± .008 G 9 1.22 [30.9] 0.67 [16.9] 0.98 [25.0] 0.46 [11.75] 0.67 [16.92] 0.70 [17.9] 0.04 [1.0] 15 1.54 [39.2] 1.00 [25.4] 1.31 [33.3] 0.76 [19.4] 0.99 [25.2] 1.03 [26.1] 0.05 [1.2] 25 2.09 [53.0] 1.54 [39.1] 1.85 [47.0] 1.27 [32.2] 1.54 [39.0] 1.56 [39.7] 0.06 [1.4] 37 2.73 [69.4] 2.18 [55.43] 2.50 [63.5] 1.87 [47.6] 2.19 [55.56] 2.22 [56.3] 0.07 [1.8] E D Closed End Cover .384 [ 9.75 ] Open End Cover 1 .42 Ref [ 10.7 ] Adhesive w/Liner .050 Typ [ 1.27 ] Note: Number and location of dimples varies by part size. .65 [ 16.5 ] Assembled Thickness .24 +.00 [ 6.0 ] -.01 See Page 3 Details A .11 Ref [ 2.8 ] .0545 Typ [ 1.384 ] Position 1 1 .49 [ 12.4 ] 2 14 3 15 4 16 5 17 6 18 7 9 20 21 10 22 11 23 24 12 13 25 10° Typ B .295 [ 7.5 ] Note: dimension taken from inside of dimple on inside of shell. Inch (mm) Tolerance Unless Noted .0 C Inch ± .1 .00 .000 ± .01 ± .005 [ ] Dimensions for Reference only Ordering Information Strain Relief Connector 82XX - X00X (Order Separately) 3448-8DXXA Contact Quantity Cover Style: 6= Open Cover 7= Closed Cover 8=Open Cover, WO Adhesive, Preassembled Mounting Style: 0 = Ø .120 [ 3.05 ] (E1 & C1 Apply) 3 = 4-40 UNC (E5 & C3 Apply) 9 = Rivet Crimp (E1 & C1 Apply) 09 = 9 Position 15 = 15 Position 25 = 25 Position 37 = 37 Position Assembly tools: 3M™ Standard Assembly Press 3640 (or equivalent), 3M™ Locator Plate, 3443-106N, 3M™ Platen, 3442-39N for (9 & 15 pos.) or 3442-41N for (25 & 37 pos.) Electronics Materials Solutions Division Interconnect Solutions http://www.3M.com/interconnect TS-0234-J Sheet 2 of 3 3M is a trademark of 3M Company. For technical, sales or ordering information call 800-225-5373 3M™ D Sub Plug Connector, 8200 Series Plug Connector Mounting Method* Front Rear 8200 Series Dimensions Contact Quantity A1 B1 C1 D1 9 .87 [ 22.1 ] .44 [ 11.2 ] .98 [ 24.9 ] .49 [ 12.5 ] 15 1.20 [ 30.5 ] .60 [ 15.2 ] 1.31 [ 33.3 ] .66 [ 16.8 ] 25 1.74 [ 44.2 ] .87 [ 22.1 ] 1.85 [ 47.0 ] .93 [ 23.6 ] 37 2.39 [ 60.7 ] 1.20 [ 30.5 ] 2.50 [ 63.5 ] 1.25 [ 31.8 ] 9 0.81 [ 20.6 ] .40 [ 10.2 ] .98 [ 25.0 ] .49 [ 12.5 ] 15 1.13 [ 28.7 ] .57 [ 14.5 ] 1.31 [ 33.3 ] .66 [ 16.8 ] 25 1.67 [ 42.4 ] .84 [ 21.3 ] 1.85 [ 47.0 ] .93 [ 23.6 ] 37 2.33 [ 59.2 ] 1.16 [ 29.5 ] 2.50 [ 63.5 ] 1.25 [ 31.8 ] E1 F1 G1 .51 [13.0] .26 [6.6] .12 [3.0] 0.45 [11.4] 0.22 [5.6] .12 [3.0] Front Mount-The connector is mounted in front of the panel. Rear Mount-The connector is mounted behind the panel. Panel Cutout R .032 Max. Typ [ 0.81 ] A1 10 ° 0 ° Typ B1 .120 [ 3.05 ] F1 .060 [ 1.52 ] Alternate GI Radius Typ D1 Full Radius E1 C1 Strain Relief (Order Separately) Material: Stainless Steel Mounting Styles Standard .07 Max [ 1.78 ] Threaded Inserts .12 [ 3.0 ] Dia Through Hole F #4-40 UNC +.000 .242 -.010 [ 6.15 ] G .12 [ 3.0 ] .16 [ 4.06 ] TS-0234-J Sheet 3 of 3 Electronics Materials Solutions Division Interconnect Solutions http://www.3M.com/interconnect 3M is a trademark of 3M Company. For technical, sales or ordering information call 800-225-5373 Regulatory: For regulatory information about this product, visit 3M.com/regs or contact your 3M representative. Technical Information: The technical information, recommendations and other statements contained in this document are based upon tests or experience that 3M believes are reliable, but the accuracy or completeness of such information is not guaranteed. Product Use: Many factors beyond 3M's control and uniquely within user's control can affect the use and performance of a 3M product in a particular application. Given the variety of factors that can affect the use and performance of a 3M product, user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and suitable for user's method of application. Warranty, Limited Remedy, and Disclaimer: Unless an additional warranty is specifically stated on the applicable 3M product packaging or product literature, 3M warrants that each 3M product meets the applicable 3M product specification at the time 3M ships the product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OR TRADE. If the 3M product does not conform to this warranty, then the sole and exclusive remedy is, at 3M's option, replacement of the 3M product or refund of the purchase price. Limitation of Liability: Except where prohibited by law, 3M will not be liable for any loss or damage arising from the 3M product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability. 3M Business Center Electronics Materials Solutions Division 13011 McCallen Pass Bldg. C Austin, TX 78753-5380 1-800-225-5373 www.3M.com/interconnect  Electronics Materials Solutions Division Please recycle. Printed in USA. © Interconnect Solutions 3M 2019. All rights reserved. http://www.3M.com/interconnect RIA-2217B-E 3M is a trademark of 3M Company.
M7NNK-5010J
物料型号:3M™ D Sub Plug Connector, 8200 Series

器件简介:该系列插头连接器提供开放式或封闭式端盖选项,具有EMI/ESD保护的凹点,改进的金属应变缓解钩直接连接到金属壳体,低剖面设计,四种安装选项。

引脚分配:文档提供了不同接触数量(9、15、25、37)的详细尺寸和安装信息。

参数特性: - 绝缘材料:玻璃填充聚酯(PBT),UL 94V-0阻燃等级,灰色 - 接触材料:铜合金,镀层:至少1.27μm的镍底层和30μ"的金擦拭区 - 壳体材料:钢,镀锡 - 应变缓解材料:不锈钢,0.40mm厚 - 电线容纳:26和28AWG实心或绞合线 - 标记:3M标志和接触位置编号

电气特性: - 电流额定值:1A - 绝缘电阻:在500VDC下大于1×10^9Ω - 耐受电压:在海平面1000VRMS

环境特性: - 温度等级:-55°C至+105°C

应用信息:适用于需要高可靠性和性能的电子互连解决方案。

封装信息:提供了详细的安装方法和尺寸,包括前面板安装和后面板安装选项,以及面板切口的详细尺寸。
