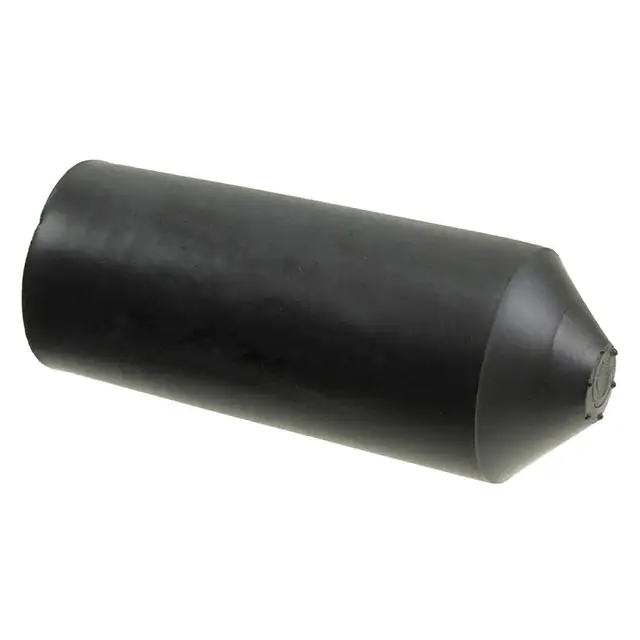

3M™ Heat Shrink Heavy Duty End Caps
Data Sheet
Product Description
Agency Approvals &
Self Certifications
July 2013
Heat shrinkable end caps are typically used to seal cable ends and provide
mechanical and environmental protection.
When heated in excess of 121ºC (250ºF), SKE Heat Shrink Heavy Duty End Caps
rapidly shrinks, forcing the melted adhesive lining to flow and cover the substrate. The
adhesive forms a flexible bond with a wide variety of rubbers, plastics and metals.
Upon cooling, the adhesive solidifies, forming a permanent, non-drying, flexible and
water resistant barrier. Adhesive reflow will occur at temperatures above 80ºC
(176ºF).
RoHS
2011/65/EU
"RoHS 2011/65/EU" means that the product or part does not contain any of the
substances in excess of the maximum concentration values (“MCVs”) in EU RoHS
Directive 2011/65/EU. The MCVs are by weight in homogeneous materials. This
information represents 3M's knowledge and belief, which may be based in whole or in
part on information provided by third party suppliers to 3M.
Applications
Product
Sizing
The operating temperature range is from -55ºC (-67ºF) to 110ºC (230ºF), with a
shrinking temperature minimum of 121ºC (250ºF).
Expanded Part (as supplied)
Fully Recovered Part
(after heating)
P
R
HW
H Dia
J Dia
PART
H DIA
H Dia
J DIA
P
+10%
R
R
+10%
R
HW
+20%
R
For Cable
Diameters
NUMBER
SKE 4/10
MIN X
0.39
(9.9)
MAX R
0.16
(4.1)
MAX R
0.12
(3.1)
1.32
(33.5)
1.18
(30.0)
0.08
(2.0)
0.16 - 0.31
(4.1-7.9)
SKE 8/20
0.79
(20.1)
0.30
(7.6)
0.26
(6.6)
2.18
(55.4)
1.97
(50.0)
0.09
(2.3)
0.31 - 0.43
(7.9-10.9)
SKE 15/40
1.57
(39.9)
0.59
(15.0)
0.41
(10.4)
3.54
(89.9)
3.15
(80.0)
0.12
(3.1)
0.59-1.26
(15.0-32.0)
SKE 25/63
2.48
(63.0)
0.98
(24.9)
0.63
(16.0)
5.63
(143.0)
5.12
(130.1)
0.13
(3.3)
1.00 - 1.97
(25.4-50.0)
SKE 30/76
2.99
(75.9)
1.18
(30.0)
0.67
(17.0)
6.22
(158.0)
5.91
(150.1)
0.16
(4.1)
1.18 - 2.36
(30.0-60.0)
SKE 45/100
3.94
(100.1)
1.77
(45.0)
1.02
(25.9)
6.40
(162.6)
5.50
(139.7)
0.16
(4.1)
1.77 - 3.15
(45.0-80.0)
• All dimensions in both inches and metric, all angles in degrees
• Dimensions in table: X = Expanded (Minimum) R = Recovered (Maximum)
1 of 2
3
3M™ Heat Shrink Heavy Duty End Caps
Material
Shelf-Life
Availability
Color – Black
Material / Boot Outer – Flexible Flame Retardant Polyolefin
Adhesive / Inner Layer – TTS-250, Thermoplastic 80°C
This product has a 10-year shelf life from date of manufacture when stored in a humidity
controlled storage (10°C / 50°F to 27°C / 80 °F and
