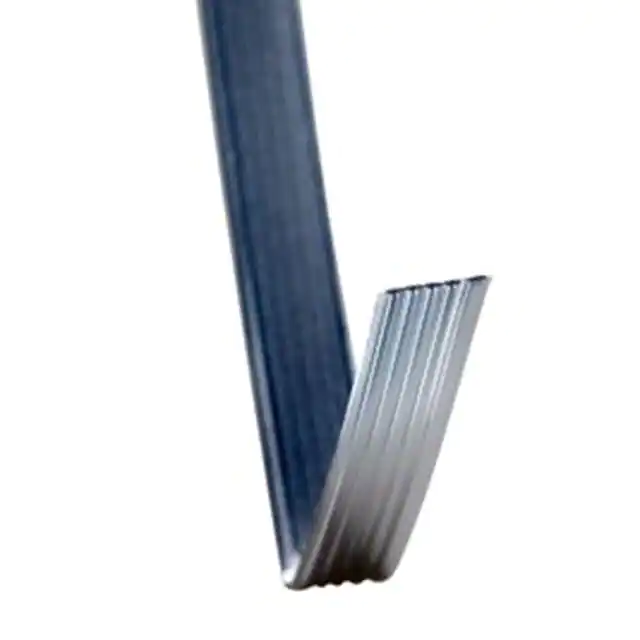

SL8801/12-20DA5-00

4 3 2 1 NOTES 3MTM TWIN AXIAL CABLE, SL8800 SERIES 1 DIMENSIONS ARE IN MILLIMETERS. 2 PHYSICAL: COLOR: SILVER MARKING: 3M (part number) 30 AWG (signal plating) (lot code) EXAMPLE: 3M SL8801/12-20DA5-00 30 AWG SILVER TW602-1 D 3 ELECTRICAL: IMPEDANCE: 100 10.27 5 REGULATORY INFORMATION: ROHS COMPLIANT. SEE THE REGULATORY INFORMATION APPENDIX (RIA) IN THE "ROHS COMPLIANCE" SECTION OF WWW.3MCONNECTORS.COM FOR COMPLIANCE INFORMATION (RIA E1 & C1 APPLY) 9.47 7.76 5.48 1.00 0.874 0.038 0.79 4 PLACES GROUND WIRES: 30 AWG SOLID ( 0.254 [.0100]) TIN PLATED COPPER 2 PLACES B 0.56 3 PLACES 0.25 THE THIN ALUMINUM SHIELDING LAYER IS EXPOSED AT THE RIBBON EDGE. USERS SHOULD ASSESS WHETHER THE EXPOSED EDGE PRESENTS A SHORTING RISK IN THEIR SPECIFIC APPLICATION. INSULATING TAPE MAY BE APPLIED AT THE CABLE ASSEMBLY LEVEL, AS NEEDED, TO COVER THE EXPOSED EDGE IN RISK AREAS. SIDEBAND WIRES: 30 AWG SOLID ( 0.254 [.0100]) TIN PLATED COPPER 0.558 [.0220] POLYOLEFIN INSULATION 4 PLACES SIGNAL WIRES: 30 AWG SOLID ( 0.254 [.0100]) SILVER OR TIN PLATED COPPER 0.787 [.0310] POLYOLEFIN INSULATION 8 PLACES 7 FOIL AND INSULATOR STRIPPING BLADE DESIGN DRAWINGS ARE AVAILABLE UPON REQUEST. TOOLING REFERENCE NUMBER: NU18A A 37561 JAN 25,2012 A C DRAWING NUMBER 0.92 0.25 78-5100-2463-7 6 THE OUTER SURFACE OF THE RIBBON CABLE HAS A METALLIC APPEARANCE, BUT IS NOT CONDUCTIVE. THERE IS A TRANSLUCENT POLYESTER OUTER LAYER OVER AN ALUMINUM SHIELDING LAYER, WHICH GIVES THIS APPEARANCE. REVISION UL FILE NUMBER: E42769 3.20 0.75 5 OHMS 4 PRODUCT SPECIFICATION NUMBER: PS-0105 13.70 C D B LDS ML DRFT CHKD INITIAL RELEASE A SIGNAL WIRE PLATING OPTION SILVER TIN DESIGN REFERENCE 3M PART NUMBER NEXT ASSEMBLY DISTRIBUTION CODES SL8801/12-20DA5-00 SL8801/12-21DA5-00 DIVISION SCALE 16 1 INTERPRET PER ASME Y14.5 - 1994 MAX SURFACE ROUGHNESS Visit http://www.3mconnectors.com 125 ALL SURFACES MARKED ONLY 3 2 ISSUE DATE AND DESCRIPTION DATE MWL JUL 19,2010 CHKD DATE M LETTANG JAN 24,2012 C ESD DO NOT SCALE DRAWING ECO DRFT DIVISION CODE THIRD ANGLE PROJECTION 4 REV 3M Center St. Paul, TOLERANCES EXCEPT AS NOTED INCHES .0 .00 .000 .0000 MILLIMETERS 0 .0 .00 .10 .000 ANGLES 1 MN 55144 MFG DATE APPVL DATE 3M COPYRIGHT 2012 This document and the information it contains are 3M property and may not be reproduced or further distributed without 3M permission, or used or disclosed other than for 3M authorized purposes. All rights reserved. TITLE SL8801/12-2XDA5-00, 100 OHM, 30 AWG, 4PR, 4SBE CAGE SIZE NUMBER MODEL DRAWING NO. REV. 78-5100-2463-7 DET. LISTS 1 YES NO A SHT 1 OF 1 A
