AP1332GEU-HF
Halogen-Free Product
Advanced Power
Electronics Corp.
N-CHANNEL ENHANCEMENT MODE
POWER MOSFET
▼ Lower Gate Charge
BVDSS
20V
▼ Capable of 2.5V Gate Drive
RDS(ON)
0.6Ω
▼ Small Package Outline
3
ID
D
600mA
S
▼ RoHS Compliant & Halogen-Free

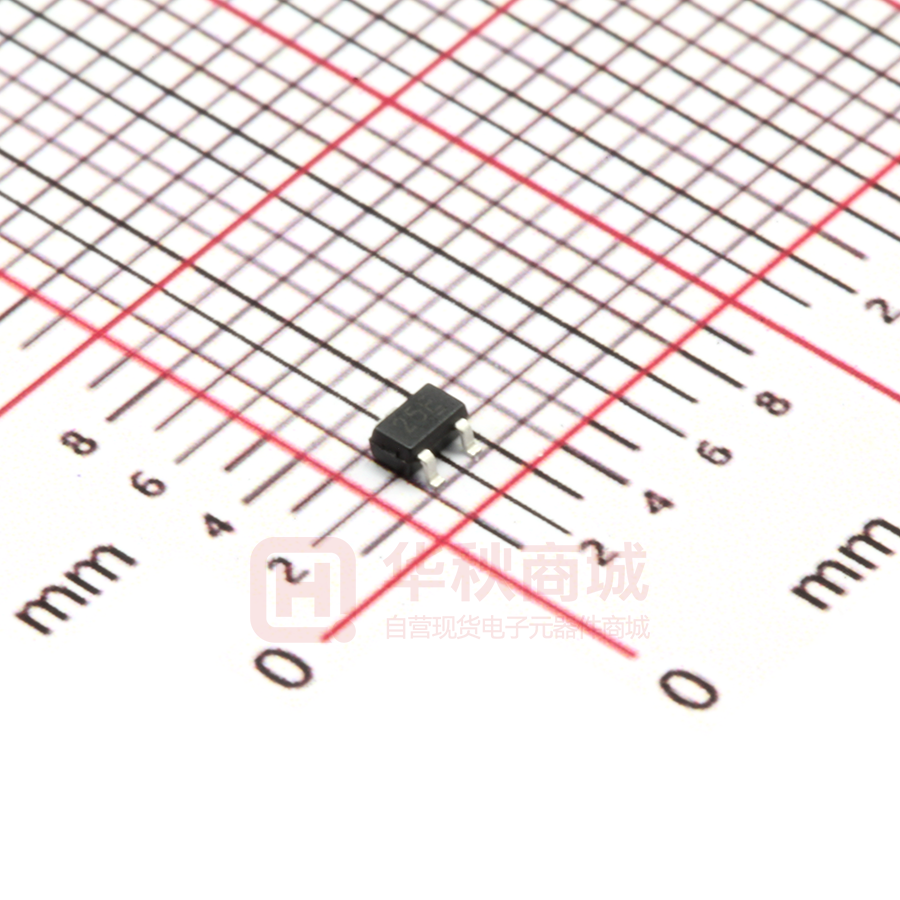

SOT-323 G
Description
AP1332 series are from Advanced Power innovated design and
silicon process technology to achieve the lowest possible onresistance and fast switching performance. It provides the designer
with an extreme efficient device for use in a wide range of power
applications.
D
G
S
Absolute Maximum Ratings@Tj=25.oC(unless otherwise specified)
Symbol
Parameter
Rating
Unit
VDS
Drain-Source Voltage
20
V
VGS
Gate-Source Voltage
+8
V
3
ID@TA=25℃
Drain Current , VGS @ 4.5V
600
mA
ID@TA=70℃
3
470
mA
Drain Current , VGS @ 4.5V
1
IDM
Pulsed Drain Current
2.5
A
PD@TA=25℃
Total Power Dissipation
0.35
W
TSTG
Storage Temperature Range
-55 to 150
℃
TJ
Operating Junction Temperature Range
-55 to 150
℃
Thermal Data
Symbol
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-ambient
Data and specifications subject to change without notice
3
Value
Unit
360
℃/W
1
201410156
AP1332GEU-HF
Electrical Characteristics@Tj=25oC(unless otherwise specified)
Symbol
Parameter
Test Conditions
Min.
Typ.
Max.
Unit
20
-
-
V
BVDSS
Drain-Source Breakdown Voltage
VGS=0V, ID=250uA
RDS(ON)
Static Drain-Source On-Resistance2
VGS=4.5V, ID=600mA
-
-
0.6
Ω
VGS=2.5V, ID=300mA
-
-
2
Ω
VGS(th)
Gate Threshold Voltage
VDS=VGS, ID=250uA
0.5
-
1.25
V
gfs
Forward Transconductance
VDS=5V, ID=600mA
-
1
-
S
IDSS
Drain-Source Leakage Current
VDS=16V, VGS=0V
-
-
10
uA
IGSS
Gate-Source Leakage
VGS=+8V, VDS=0V
-
-
+30
uA
Qg
Total Gate Charge
ID=600mA
-
1.3
2
nC
Qgs
Gate-Source Charge
VDS=16V
-
0.3
-
nC
Qgd
Gate-Drain ("Miller") Charge
VGS=4.5V
-
0.5
-
nC
td(on)
Turn-on Delay Time
VDS=10V
-
21
-
ns
tr
Rise Time
ID=600mA
-
53
-
ns
td(off)
Turn-off Delay Time
RG=3.3Ω
-
100
-
ns
tf
Fall Time
VGS=5V
-
125
-
ns
Ciss
Input Capacitance
VGS=0V
-
38
60
pF
Coss
Output Capacitance
VDS=10V
-
17
-
pF
Crss
Reverse Transfer Capacitance
f=1.0MHz
-
12
-
pF
Min.
Typ.
Max.
Unit
-
-
1.2
V
.
Source-Drain Diode
Symbol
VSD
Parameter
2
Forward On Voltage
Test Conditions
IS=300mA, VGS=0V
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test.
3.Surface mounted on FR4 board, t ≦ 10 sec.
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP1332GEU-HF
2.5
2.5
5.0V
4.5V
3.5V
T A =25 C
ID , Drain Current (A)
2.0
o
5.0V
4.5V
3.5V
T A = 150 C
2.0
ID , Drain Current (A)
o
1.5
2.5V
1.0
V G =2.0V
1.5
2.5V
1.0
V G =2.0V
0.5
0.5
0.0
0.0
0.0
0.5
1.0
1.5
2.0
0.0
2.5
0.5
1.0
1.5
2.0
2.5
V DS , Drain-to-Source Voltage (V)
V DS , Drain-to-Source Voltage (V)
Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
1000
1.8
I D =0.6A
V G =4.5V
I D = 0.4 A
o
T A =25 C
1.6
600
.
Normalized RDS(ON)
RDS(ON) (mΩ)
800
1.4
1.2
1.0
400
0.8
0.6
200
2
3
4
-50
5
0
50
100
150
o
V GS , Gate-to-Source Voltage (V)
T j , Junction Temperature ( C)
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
2.0
1.0
0.8
Normalized VGS(th)
1.5
IS(A)
0.6
T j =150 o C
T j =25 o C
0.4
1.0
0.5
0.2
0.0
0.0
0
0.2
0.4
0.6
0.8
1
1.2
V SD , Source-to-Drain Voltage (V)
Fig 5. Forward Characteristic of
Reverse Diode
1.4
-50
0
50
100
150
o
T j , Junction Temperature ( C)
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP1332GEU-HF
10
f=1.0MHz
100
V DS =10V
V DS =12V
V DS =16V
6
C iss
C (pF)
VGS , Gate to Source Voltage (V)
I D =0.6A
8
4
C oss
2
C rss
0
10
0.0
0.4
0.8
1.2
1.6
2.0
1
2.4
3
5
7
9
11
V DS , Drain-to-Source Voltage (V)
Q G , Total Gate Charge (nC)
Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
10
100us
ID (A)
1
1ms
.
0.1
10ms
o
T A =25 C
Single Pulse
100ms
DC
Normalized Thermal Response (Rthja)
1
Duty factor=0.5
0.2
0.1
0.1
0.05
PDM
0.02
t
0.01
T
Duty factor = t/T
Peak Tj = PDM x Rthja + T a
Single Pulse
0.01
0.01
0.1
1
10
100
0.0001
0.001
0.01
V DS , Drain-to-Source Voltage (V)
Fig 9. Maximum Safe Operating Area
0.1
1
10
100
1000
t , Pulse Width (s)
Fig 10. Effective Transient Thermal Impedance
VG
VDS
90%
QG
4.5V
QGS
QGD
10%
VGS
td(on) tr
td(off) tf
Fig 11. Switching Time Waveform
Charge
Q
Fig 12. Gate Charge Waveform
4
AP1332GEU-HF
MARKING INFORMATION
Part Number : 2
2SS
Date Code : SS
SS:2004,2008,2012…
SS:2003,2007,2011…
SS:2002,2006,2010…
SS:2001,2005,2009…
.
5
ADVANCED POWER ELECTRONICS CORP.
Package Outline : SOT-323(SC-70-3L)
D
Millimeters
b
E
E1
SYMBOLS
MIN
NOM
MAX
A
0.80
0.95
1.10
A1
0.00
0.05
0.10
A2
0.80
0.90
1.00
b
0.00
0.20
0.40
C
0.10
0.18
0.25
e
e
A
0.65 REF
D
1.80
2.00
2.20
E1
1.75
2.10
2.45
E
1.15
1.25
1.35
A2
C
A1
.
1.All Dimension Are In Millimeters.
2.Dimension Does Not Include Mold Protrusions.
Draw No. M1-U3-G-v01
SOT-323
(SC-70-3L)
SOT-323(SC-70-3L) FOOTPRINT:
.
ADVANCED POWER ELECTRONICS CORP.
Draw No. M1-U3-G-v01
1
