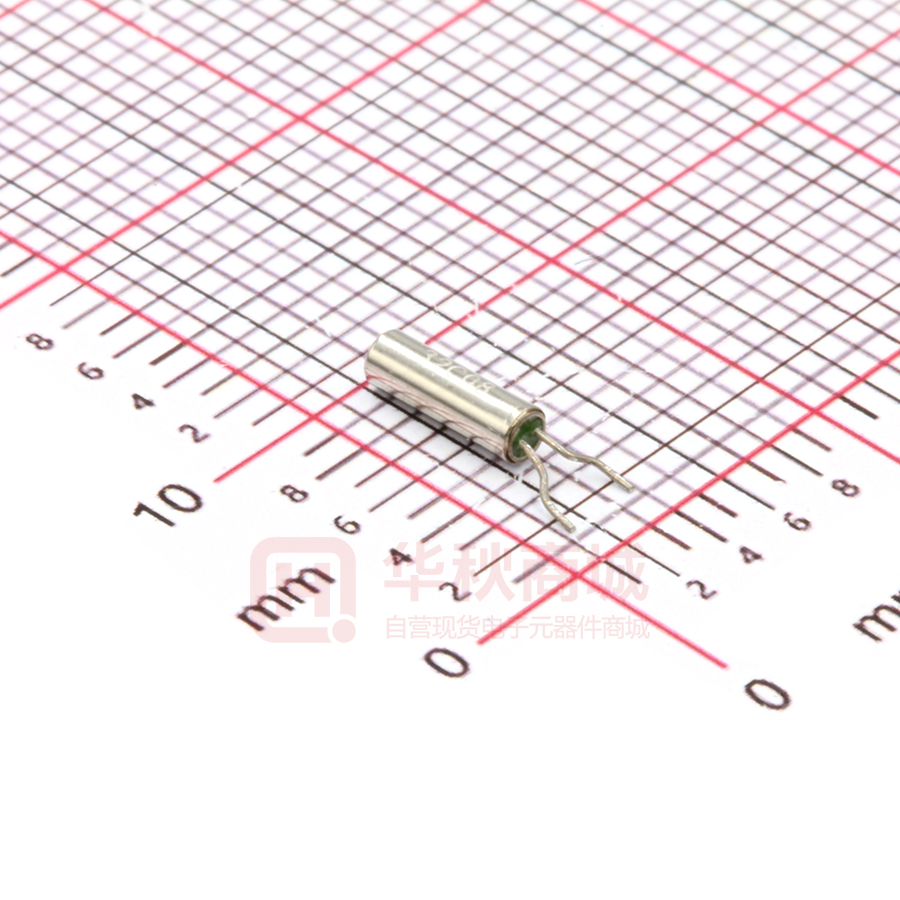

LOW FREQUENCY REFLOWABLE
CYLINDRICAL WATCH CRYSTAL
Pb in high temperature solder RoHS
AB26TRB
(exempt 7(a) per 2015/863/EU Annex)
6.0 x ϕ1.9mm
Compliant
APPLICATIONS:
• Real time clock
• Measuring instruments
• Blue-tooth and wireless applications
FEATURES:
• Formed leads for low cost SMD type
• Excellent shock resistance
• Reflow Capable
• Low cost for consumer applications
• IR reflow capable
STANDARD SPECIFICATIONS:
Parameters
Minimum
Center Frequency
Operating Temperature
Turnover Temperature
Storage Temperature
Frequency Tolerance @+25°C
Frequency Coefficient (ß)
Equivalent series resistance (R1)
Shunt capacitance (C0)
Load capacitance (CL)
Drive Level
Quality Factor
Typical
Maximum
32.768
-40
+20
-55
-20
+85
+30
+125
+20
+25
-0.035±0.01
50
35
1.35
12.5
Units
Notes
kHz
ºC
ºC
ºC
ppm
See options
2
Lorem
ipsum
ppm/ºC
kΩ
@25°C
pF
See options
pF
1
µW
+3
ppm
70,000
Aging
-3
Insulation Resistance
500
MΩ
@25°C±3°C
First year
@ 100Vdc ± 15V
OPTIONS & PART IDENTIFICATION: (Left blank if standard)
AB26TRB-32.768kHz -
-
-
Freq. Tolerance
Blank: ± 20 ppm
1: ± 10 ppm
7: ± 15 ppm
Load Capacitance (pF)
Blank: 12.5pF
6: 6pF
Packaging
Blank: Bulk
T: Tape & Reel
10: 10pF
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED: 10-1-19
ISO9001-2015
CERTIFIED
LOW FREQUENCY REFLOWABLE
CYLINDRICAL WATCH CRYSTAL
Pb in high temperature solder RoHS
AB26TRB
(exempt 7(a) per 2015/863/EU Annex)
Compliant
6.0 x ϕ1.9mm
OUTLINE DIMENSIONS:
Dimension Table
A
Ø 1.9 ± 0.1
B
6.0 ± 0.2
C
1.0
D
2.54 ± 0.3
E
2.0 ± 0.3
NOTE:
The body/can of the component is not to be soldered. To do so may
cause damage to the crystal.
Use Adhesive/Bonding Materials (i.e. Rubber Adhesive, Epoxy, etc)
to affix the component body to the PCB.
F
H
J
K
G
M
K
F
G
H
J
K
M
2.5
2.5
5.25
2.5
1.0
1.5
Dimensions: mm
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED: 10-1-19
ISO9001-2015
CERTIFIED
LOW FREQUENCY REFLOWABLE
CYLINDRICAL WATCH CRYSTAL
Pb in high temperature solder RoHS
AB26TRB
(exempt 7(a) per 2015/863/EU Annex)
Compliant
6.0 x ϕ1.9mm
REFLOW PROFILE:
TAPE & REEL:
Packaging: 2000pcs/reel
Dimension Table
A
4.0 ± 0.1
B
2.0 ± 0.1
C
Ø 1.5 ± 0.1
D
1.75 ± 0.1
E
7.5 ± 0.1
F
(6.75)
H
0.3 ± 0.05
G
16 ± 0.3
J
0.6
K
6.3 ± 0.1
M
9.4
N
2.15 ± 0.1
P
8.0 ± 0.1
Q
2.15 ± 0.1
R
2.05
S
3.6
T
5.0
U
3.2
V
4.0 ± 0.1
W
Ø 330
X
19.5
Y
Ø 100
Z
Ø 13
a
2.0
b
R1.0
c
Ø 21 ± 0.8
Dimensions: mm
ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability
where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment,
written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information.
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED: 10-1-19
ISO9001-2015
CERTIFIED
