AB38T-32.768KHZ

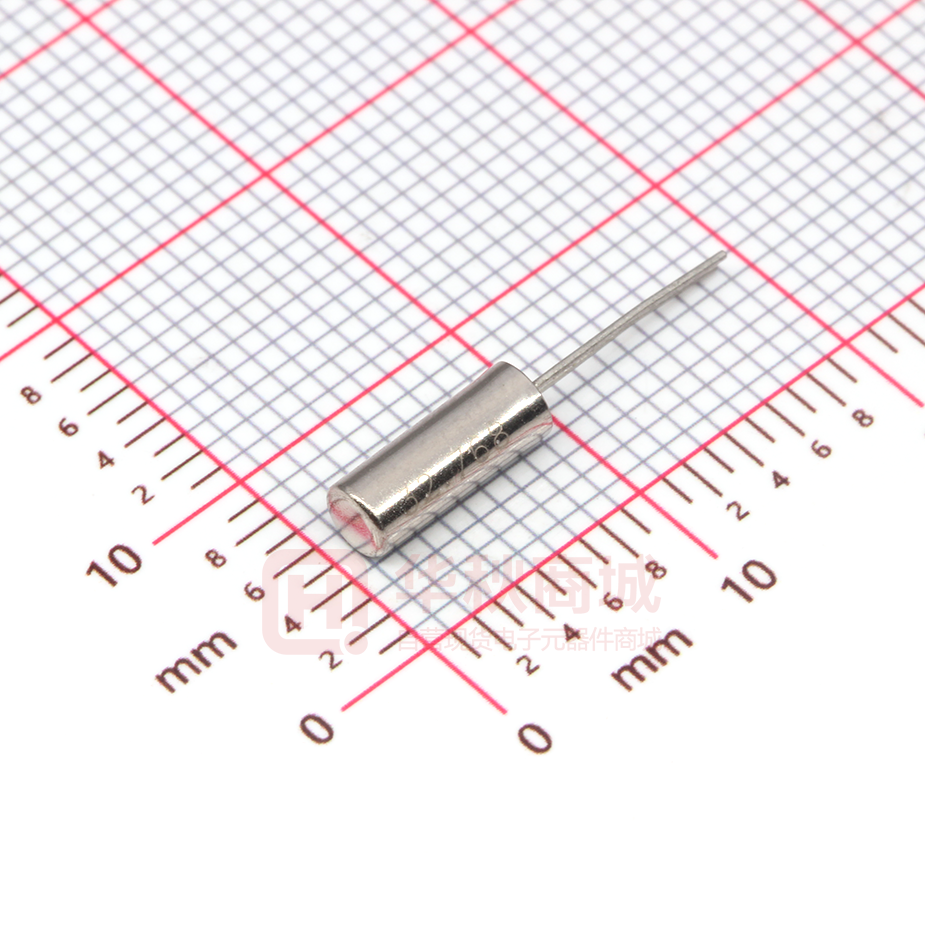

LOW FREQUENCY CYLINDRICAL WATCH CRYSTAL AB38T Pb RoHS Compliant 8.3 x ø3.2mm FEATURES: APPLICATIONS: • Commercial grade 32.768kHz crystal • Real time clock • Measuring instruments. • Clock source for communication or A/V equipment. STANDARD SPECIFICATIONS: Parameters Center Frequency Operating Temperature Turnover Temperature Storage Temperature Frequency Tolerance @+25°C Frequency Coefficient (ß) Equivalent series resistance (R1) Shunt capacitance (C0) Motional capacitance (C1) Capacitance ratio (C0/C1) Load capacitance (CL) Drive Level Quality Factor Aging @25°C±3°C (First year) Insulation Resistance Minimum Typical Maximum Units -----10 +20 -40 -20 32.768 ----+25 ---------0.035±0.01 ----1.60 0.0035 460 12.5 ----90,000 ----+60 +30 +85 +20 kHz ºC ºC ºC ppm ppm/°C2 kΩ pF pF ----pF µW -----------------------------3 500 30 ----------------1 ----+3 ----- ----- ppm MΩ Notes See options See options See options @ 100Vdc ± 15V OPTIONS & PART IDENTIFICATION: (Left blank if standard) AB38T-32.768kHz - Load Capacitance (pF) Blank: 12.5pF Please specify custom load cap. in pF (ex. 6 for 6pF) - Operating Temperature E: 0 to +70 ºC B: -20 to +70 ºC - Freq. Tolerance 1: ± 10 ppm * 7: ± 15 ppm * Please contact Abracon for availability REVISED: 1.4.2021 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS ISO9001-2015 CERTIFIED LOW FREQUENCY CYLINDRICAL WATCH CRYSTAL AB38T Pb RoHS Compliant 8.3 x ø3.2mm | OUTLINE DRAWING: Dimension Table A Ø 3.2 MAX B 8.3 MAX C 8.0 MIN 0.8 ± 0.3 D Ø 0.34 ± 0.2 E Dimensions: mm Soldering (1) Do not apply excessive soldering heat – Recommended Maximum Temperature is 380˚C using a hand soldering iron for a Maximum Duration of 3 seconds. (2) When dip soldering/wave soldering, the soldering condition is to be 260˚C Maximum Temperature for a Maximum Duration of 10seconds. Beware not to heat the whole crystal unit in the dip mounting process. It is recommended that the crystal be mounted in an upright position. (To prevent heat conduction directly to the body of a crystal unit.) (3) When soldering, do not apply the heat to the case body of the component as exposure to soldering heat would deteriorate the performance of the product. Packaging: 1,000pcs/bag, 10,000pcs/box ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. REVISED: 1.4.2021 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS ISO9001-2015 CERTIFIED
