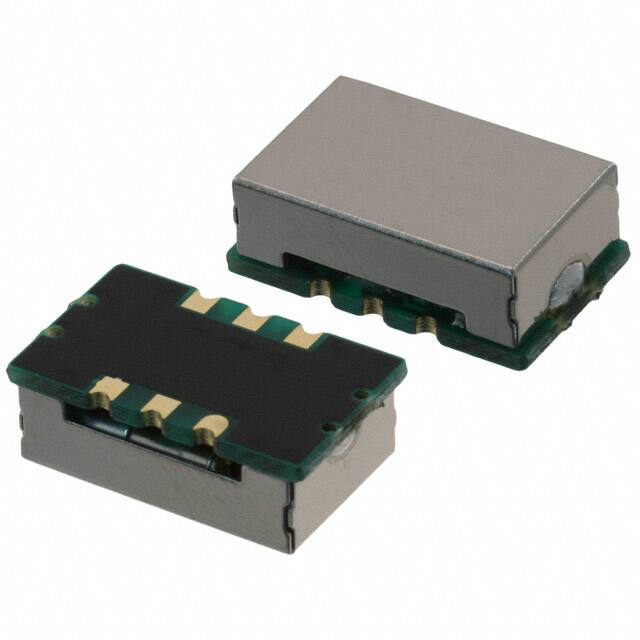

ABLJO-96.000MHZ-T2

LOW JITTER CRYSTAL OSCILLATOR ABLJO ESD Sensitive RoHS/RoHS II Compliant Pb free Pb FEATURES: • • • • • • • 14.3 X 8.7 X 5.5 mm | | | | | | | | | | | | | | | APPLICATIONS: High "Q", 3rd Overtone Crystal Technology Ultra Low Jitter performance 0.10 ps Max. (12kHz to 20MHz) Standard LVCMOS RF Output Wide Operating Temperature (-40ºC to +85ºC) standard ±40 ppm Max. All inclusive Stability (including Aging) over 10-years (17) Standard Frequencies between 80MHz & 200MHz 9x14mm RoHS Compliant SMT package • Avionics • COTS - Military communications • Low Phase Noise Signal Sources • High Definition TV • Test & Measurement • Ultra Low Jitter RF Communication Circuitry STANDARD SPECIFICATIONS Parameters Minimum 80.00 RF Output Frequency Range Standard Available Frequencies Supply Voltage Current Drain 80MHz ~ 99.999MHz 100MHz ~ 149.999MHz 150MHz ~ 200MHz Waveform VOH VOL Symmetry Typical Maximum Units 200.00 MHz Notes 80.00MHz, 81.920MHz, 92.160MHz, 96MHz, 98.304MHz, 100MHz, 106.250MHz, 120MHz, 122.880MHz, 125MHz, 150MHz, 155.520MHz, 156.250MHz, 160MHz, 184.32MHz, 187.5MHz, and 200MHz 3.135 3.300 3.465 25.00 30.00 40.00 Volts mA mA mA LVCMOS 0.9*Vdd 0.1*Vdd 55 3.0 Volts Volts % ns -40 +85 ºC -40 ±25.00 ±40.00 +90 ppm ppm ºC ±2.00 ±5.00 ±7.00 ppm ppm ppm 45 50 Rise & Fall Times Operating Temperature Range Frequency Stability Over (-40º C to +85ºC) ALL effects, including Aging Storage Temperature Range Aging First Year 5-Years 10-Years Vdd=3.3V Phase Noise (156.25MHz Carrier) @ 10 Hz offset -73 dBc/Hz @ 100 Hz offset -107 dBc/Hz @ 1,000 Hz offset -134 dBc/Hz @ 10,000 Hz offset -148 -140 dBc/Hz @ 100,000 Hz offset -154 -150 dBc/Hz @ 1,000,000 Hz offset Integrated RMS Phase Jitter (12kHz ~ 20MHz BW) -158 -150 75 100 dBc/Hz Femto Seconds LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com 0.10 ps Max. ABRACON IS REVISED: 04-22-20 ISO9001-2015 CERTIFIED LOW JITTER CRYSTAL OSCILLATOR ABLJO ESD Sensitive Pb RoHS/RoHS II Compliant Pb free 14.3 X 8.7 X 5.5 mm | | | | | | | | | | | | | | | STANDARD SPECIFICATIONS - continued Minimum Parameters Typical Maximum Units 3.30 Volts Notes Electrical Frequency Adjustment 0.0 Control Voltage Range (Vc) ±45.00 Frequency Pull Range ppm Positive Frequency Pull Slope 10 Control Voltage Port Impedance 1.45 Center Control Voltage kΩ 1.65 Control Port Linearity 1.85 Volts ±10 % TYPICAL PHASE NOISE PERFORMANCE @ 156.25MHZ CARRIER OPTIONS AND PART IDENTIFICATION: ABLJO - Frequency Pull Option Blank XO (Fixed Frequency V VCXO (±45 ppm min.) LLC - Frequency (MHz) - Tape & Reel Options Blank < 250 units on cut tape T 1,000 units per reel T2 250 units per reel 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 04-22-20 ISO9001-2015 CERTIFIED LOW JITTER CRYSTAL OSCILLATOR ABLJO ESD Sensitive Pb RoHS/RoHS II Compliant Pb free 14.3 X 8.7 X 5.5 mm | | | | | | | | | | | | | | | OUTLINE DIMENSIONS: Pin 1 2 3 4 5 6 Function VCXO XO Vc N.C. N.C. GND Output N.C. Vdd Dimensions: mm REFLOW PROFILE: TS max to TL (Ramp-up Rate) 3°C/second max. Preheat Temperature Min. (TS Min.) Temperature Typical (TS Typ.) Temperature Max. (TS Max.) Time (tS) 150°C 175°C 200°C 60 ~ 180 seconds Ramp-up rate (TL to Tp ) Time Maintained Above: --Temperature (TL)/Time (TL) Peak Temperature (Tp) Target Peak Temperature (Tp Target) Time within 5°C of actual peak (tp) Ramp-down Rate Tune 25°C to Peak Temperature (t) LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com 3°C/second max. 217°C/60 ~ 150 seconds 250°C max. for 10 seconds 250°C +0/-5°C 20 ~ 40 seconds 6°C/second max. 8 minutes max. ABRACON IS REVISED: 04-22-20 ISO9001-2015 CERTIFIED LOW JITTER CRYSTAL OSCILLATOR ABLJO ESD Sensitive Pb RoHS/RoHS II Compliant Pb free 14.3 X 8.7 X 5.5 mm | | | | | | | | | | | | | | | TAPE & REEL: Packaging: (1,000) units per reel standard, (250) units per reel available (option # T2) Dimensions: mm ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 04-22-20 ISO9001-2015 CERTIFIED
