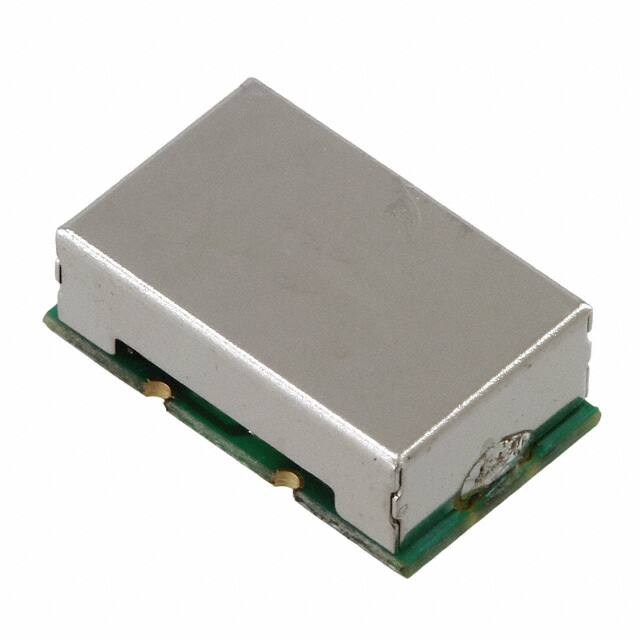

ABLNO-104.000MHZ

Ultra Low Phase Noise XO / VCXO ABLNO ESD Sensitive FEATURES: • • • • • • High "Q", 3rd Overtone Crystal Technology Ultra Low Phase Noise -162 dBc/Hz Typ. @ 10kHz offset, 100MHz carrier Standard LVCMOS RF Output Wide Operating Temperature (-40ºC to +85ºC) standard ±28 ppm Max. All inclusive Stability (including Aging) over 10-years Available Frequency range from 24.576MHz to 200.00MHz Pb RoHS Compliant 14.3 x 8.7 x 5.5mm APPLICATIONS: • Satellite Modem Communication Systems • COTS - Military communications • Avionics • Low Phase Noise Signal Sources • High Definition TV • Test & Measurement • Ultra Low Jitter RF Communication Circuitry STANDARD SPECIFICATIONS Parameters RF Output Frequency Range Standard Available Frequencies Supply Voltage (Vdd) 50MHz ~ 99.999MHz Current 100MHz ~ 149.999MHz Drain ≥ 150.00MHz Waveform Output Load VOH VOL Symmetry Rise & Fall Times Operating Temperature Range Frequency Stability Minimum Typical Maximum Units 24.576 200.00 MHz 24.576MHz, 80.00MHz, 81.92MHz, 92.16MHz, 96.00MHz, 98.304MHz, 100MHz, 104.00MHz, 106.25MHz, 120.00MHz, 122.88MHz, 125.00MHz, 150.00MHz, 155.52MHz, 156.250MHz, 200MHz 3.135 3.300 3.465 Volts 25.00 35.00 mA 40.00 LVCMOS 15 pF 0.9*Vdd Volts 0.1*Vdd Ω 45 50 55 % 3.0 ns -40 +85 ºC Over (-40º C to +85ºC) ±12.00 ALL effects, including Aging Storage Temperature Range First Year Aging 5-Years 10-Years Phase Noise (24.576MHz Carrier) @ 10 Hz offset @ 100 Hz offset @ 1,000 Hz offset @ 10,000 Hz offset @ 100,000 Hz offset @ 1,000,000 Hz offset -40 ±18.00 ppm ±28.00 +90 ±2.00 ±5.00 ±7.00 ppm ºC ppm ppm ppm Notes Custom frequencies available upon request Relative to measured frequency @ 25ºC Vdd=3.3V RMS Jitter (12kHz ~ 20MHz BW) ABRACON IS LLC -90 -120 -145 -165 -166 -166 -82 -115 -140 -160 -165 -165 < 100 125 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz Femto Seconds Note #1 & #2 0.125 ps Max. ABRACON IS REVISED: 07.06.2020 ISO9001-2015 CERTIFIED Ultra Low Phase Noise XO / VCXO ABLNO Parameters Phase Noise (100MHz Carrier) @ 10 Hz offset @ 100 Hz offset @ 1,000 Hz offset @ 10,000 Hz offset @ 100,000 Hz offset @ 1,000,000 Hz offset ESD Sensitive Minimum Typical Pb RoHS Compliant Maximum Units 14.3 x 8.7 x 5.5mm Notes Vdd=3.3V RMS Jitter (12kHz ~ 20MHz BW) -88 -118 -141 -160 -161 -165 -82 -115 -138 -155 -160 -160 < 50 100 Phase Noise (156.25MHz Carrier) @ 10 Hz offset @ 100 Hz offset @ 1,000 Hz offset @ 10,000 Hz offset @ 100,000 Hz offset @ 1,000,000 Hz offset -75 -110 -140 -155 -161 -165 -70 -105 -135 -150 -160 -160 RMS Jitter (12kHz ~ 20MHz BW) < 50 100 dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz Femto Seconds Note #1 & #2 0.10 ps Max. Vdd=3.3V Phase Noise (200MHz Carrier) @ 10 Hz offset @ 100 Hz offset @ 1,000 Hz offset @ 10,000 Hz offset @ 100,000 Hz offset dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz Femto Seconds Note #1 & #2 0.10 ps Max. Vdd=3.3V RMS Jitter (12kHz ~ 20MHz BW) -75 -105 -135 -150 -155 -70 -100 -130 -145 -150 < 20 30 dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz Femto Seconds Note #1 & #2 0.03 ps Max Electrical Frequency Adjustment Control Voltage Range (Vc) 0.0 1.65 3.30 Volts Referenced to the carrier Frequency Pull Range ±28.00 ±55.00 ppm Frequency Pull Slope Positive Control Voltage Port Impedance 10 kΩ Control Port Linearity ±10 % Note #1: Maximum Phase Noise is verified on 100% of the parts at 25ºC ± 3ºC. Note #2: The above specified Phase Noise & Jitter is with the oscillator device configured as a VCXO. In XO configuration, the Phase Noise will be slightly better at each offset between 10Hz and 10 kHz, by approximately -3dB to -5dB. ABRACON IS LLC CE RTIFIED 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: ABRACON IS REVISED: 07.06.2020 ISO9001-2015 CERTIFIED Ultra Low Phase Noise XO / VCXO ABLNO ESD Sensitive TYPICAL PHASE NOISE PERFORMANCE @ 50.00 MHZ CARRIER Pb RoHS Compliant 14.3 x 8.7 x 5.5mm TYPICAL PHASE NOISE PERFORMANCE @ 100.00 MHZ CARRIER FREQUENCY PULL VERSUS CONTROL VOLTAGE (REFERENCED TO 100.000MHZ) CURRENT DRAIN VERSUS CONTROL VOLTAGE @ VDD =+3.3V LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: ABRACON IS REVISED: 07.06.2020 ISO9001-2015 CERTIFIED Ultra Low Phase Noise XO / VCXO ABLNO ESD Sensitive Pb RoHS Compliant 14.3 x 8.7 x 5.5mm | | | | | | | | | | | | | | | FREQUENCY STABILITY VS. TEMPERATURE @ VDD = +3.3V (REFERENCED TO MEASURED FREQUENCY @ 25ºC ) PART IDENTIFICATION: ABLNO - Frequency (MHz) – Fixed Clock Vs. VCXO Option Blank Fixed Clock Oscillator V VCXO (±28 ppm min. Pull) Tape & Reel Options Blank < 250 units on cut tape T2 250 units per reel T 1,000 units per reel OUTLINE DIMENSIONS: Recommended Land Pattern Pin # 1 2 3 4 Functionality Voltage Control (Vc) for VCXO No Connect (N/C) for XO Ground RF Output Vdd Dimensions: mm LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: ABRACON IS REVISED: 07.06.2020 ISO9001-2015 CERTIFIED Ultra Low Phase Noise XO / VCXO ABLNO ESD Sensitive Pb RoHS Compliant 14.3 x 8.7 x 5.5mm REFLOW PROFILE: TAPE & REEL: (1,000) units per reel standard, (250) units per reel available (option # T2) Dimensions: mm ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. ABRACON IS LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: ABRACON IS REVISED: 07.06.2020 ISO9001-2015 CERTIFIED
