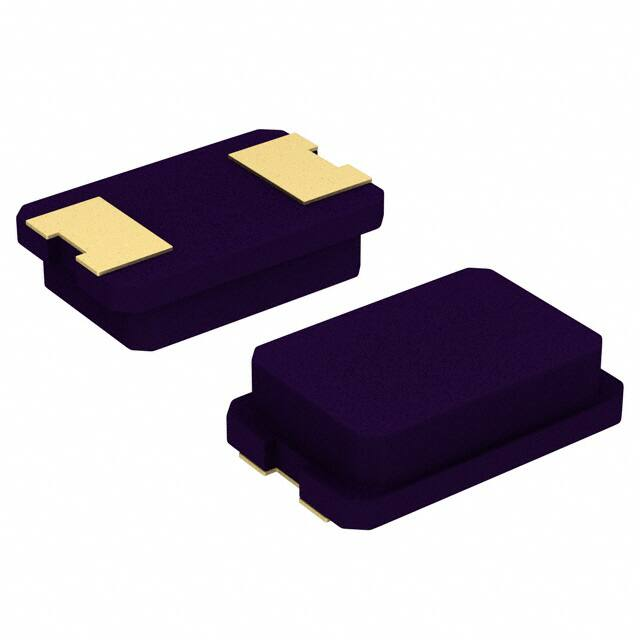

ABM3-40.000MHZ-D2Y-T

CERAMIC SMD CRYSTAL ABM3 Pb in Glass, exemption 7C-I per RoHS II Directive RoHS/RoHS II Compliant. 2011/65/EU Annex 5.0 X 3.2 X 1.3mm Smaller package alternative for ABM7 series | | | | | | | | | | | | | | | Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable FEATURES: AT-cut fundamental or 3rd OT mode Suitable for RoHS reflow profile Tight Stability available ±10 Ceramic package hermetically glass sealed assures high precision and reliability. APPLICATIONS: Cellular telephones, pagers Communication and test equipment PCMCIA and wireless applications STANDARD SPECIFICATIONS: Parameters Frequency Range Operation Mode Operating Temperature Storage Temperature Frequency Tolerance @+25°C Frequency Stability over the Operating Temperature ( ref. to +25°C) Minimum Typical Maximum 8.000 54.000 54.100 80.000 rd Fundamental or 3 Overtone -10 +60 -40 +90 -50 +50 -50 +50 Units Notes MHz Fundamental 3rd Overtone ºC ºC ppm See options ppm See options 140 120 60 40 30 25 60 Equivalent series resistance (R1) Shunt capacitance (C0) 7 Load capacitance (CL) 18 Drive Level 10 Aging -5 Insulation Resistance 500 8.000 F < 9.000 (Fund) 9.000 F < 10.000 (Fund) 10.000 F < 16.000 (Fund) 16.000 F < 20.000 (Fund) 20.000 F < 30.000 (Fund) 30.000 F 54.000 (Fund) 54.000 < F 80.000 (3rd OT) pF pF 100 µW +5 ppm 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com See options Standard (See options if other M than STD) @25°C±3°C First year @ 100Vdc ± 15V ABRACON IS REVISED: 05-03-21 ISO9001-2015 CERTIFIED MINIATURE CERAMIC SMD CRYSTAL ABM3 Pb in Glass, exemption 7C-I per RoHS II Directive RoHS/RoHS II Compliant. 2011/65/EU Annex 5.0 X 3.2 X 1.3mm | | | | | | | | | | | | OPTIONS IDENTIFICATION: (Left blank if standard) OPTIONSAND ANDPART PART IDENTIFICATION: ABM3 - MHz - - - - Frequency in MHz Please specify the frequency in MHz. e.g. 14.31818MHz Packaging Blank: Bulk T: Tape & Reel Load Capacitance (pF) Please specify CL in pF or S for series Custom ESR if other than standard R : Specify a value in (e.g.: R40) Operating Temp. (See Table 1 for details) E: 0°C ~ +70°C B: -20°C ~ +70°C C: -30°C ~ +70°C N: -30°C ~ +85°C D: -40°C ~ +85°C J: -40°C ~ +105°C K: -40°C ~ +125°C Freq. Tolerance 7: ± 15 ppm 2: ± 20 ppm 3: ± 25 ppm 4: ± 30 ppm Freq. Stability (See Table 1 for details) U: ± 10 ppm G: ± 15 ppm X: ± 20 ppm W: ± 25 ppm Y: ± 30 ppm H: ± 35 ppm Q: ± 100 ppm Table 1 Available Combinations of Operating Temp. and Freq. Stability Operating Temp. Freq. Stability U:±10ppm G:±15ppm X:±20ppm W:±25ppm Y:±30ppm H:±35ppm Std:±50ppm Q:±100ppm Std: -10°C ~ +60°C E: 0°C ~ +70°C B: -20°C ~ +70°C C: -30°C ~ +70°C N: -30°C ~ +85°C D: -40°C ~ +85°C J: -40°C ~ +105°C K: -40°C ~ +125°C 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 05-03-21 ISO9001-2015 CERTIFIED | | | MINIATURE CERAMIC SMD CRYSTAL ABM3 Pb in Glass, exemption 7C-I per RoHS II Directive RoHS/RoHS II Compliant. 2011/65/EU Annex 5.0 X 3.2 X 1.3mm | | | | | | | | | | | | | | | OUTLINE DRAWING: Alternative bottom packaging 1: Pin 1 TAPE & REEL: Pin 2 Dimensions: inch (mm) REFLOW PROFILE Tape and reel (1,000pcs/reel) Dimensions: mm ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 05-03-21 ISO9001-2015 CERTIFIED
