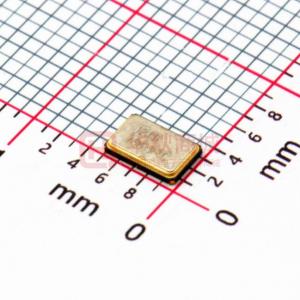

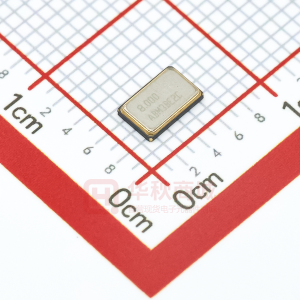

ABM3B

CERAMIC SMD CRYSTAL ABM3B FEATURES: • Fundamental mode. • Suitable for reflow. • Tight Stability available. • Ceramic package and metal lid assures high precision and reliability. • Seam sealing. Pb RoHS Compliant 5.0 X 3.2 X 1.1mm ||||||||||||||| APPLICATIONS: • Cellular telephones, Pagers. • Communication and Test equipment. • High Density applications. • PCMCIA and wireless applications. STANDARD SPECIFICATIONS: PARAMETERS ABRACON P/N Frequency Range Operation Mode Operating Temperature Storage Temperature Frequency Tolerance @ +25°C Frequency Stability over the Operating Temperature (Ref to + 25°C) Equivalent Series Resistance Shunt Capacitance C0 Load Capacitance CL Drive Level Aging (First Year) @ 25°C ± 3°C Insulation Resistance ABM3B Series 8.0 MHz - 50.0 MHz (Fundamental) 50.1 MHz - 125 MHz (3rd overtone) Fundamental or 3rd overtone -10°C to +60°C (see options) -40°C to +85°C ± 50 ppm max. (see options) TABLE 1- Standard ESR Frequency (MHz) ESR(Ω) max Operational mode Fundamental 8.000 - 9.999 200 10.000 -11.999 100 Fundamental 12.000 - 15.999 Fundamental 70 50 16.000 - 50.000 Fundamental 50.001 - 80.000 60 3rd Overtone 3rd Overtone 80.001 - 125.000 60 ± 50 ppm max. (see options) See table 1 7 pF max. 18 pF (see options) 100 μW max., 10 μW typical ± 5ppm max. 500 MΩ min at 100Vdc ± 15 V OPTIONS AND PART IDENTIFICATION: ABM3B - Frequency Height (mm) Blank 1.1mm max 1 0.8mm max -R -- - Packaging Blank Bulk Tape and T Reel Load Capacitance Please specify CL (6 to 32) in pF or S for Series *Consult with ABRACON for CL value under 6pF.) Operating Temp. E 0°C to +70°C B -20°C to +70°C C -30°C to +70°C N -30°C to +85°C D -40°C to +85°C * -40°C to +105°C * -55°C to +125°C * Frequency stability Z only Custom ESR RXXX (Value in Ω). If it is custom Freq. Tolerance 1 ± 10 ppm 7 ± 15 ppm 2 ± 20 ppm 3 ± 25 ppm 4 ± 30 ppm Freq. Stability U** ± 10 ppm G*** ± 15 ppm X ± 20 ppm W ± 25 ppm Y ± 30 ppm H ± 35 ppm Z ± 100 ppm ** Standard temp or options E and B only *** Standard temp or options E, B, C and N only. ABRACON ABRACON IS ISO 9001 / QS 9000 CERTIFIED Visit www.abracon.com for Terms & Conditions of Sale Revised (O): 03.11.08 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com CERAMIC SMD CRYSTAL ABM3B OUTLINE DRAWING: Please see Table 2 below for height and chamfer information. Pb RoHS Compliant 5.0 X 3.2 X 1.1mm ||||||||||||||| Chamfer on PIN 1 (Default) Dimensions: inch (mm) Chamfer on PIN 4 (See Note) Note: Due to the availability of raw materials, this part may be manufactured with the chamfer on pin 4. Be advised that this does not affect the electrical characteristics of the crystal in any way. Table 2 Height (mm) Chamfer PIN # ABM3B 1.1mm max #1 (Default), #4 (See Note) ABM3B1 0.8mm max #1 (Default), #4 (See Note) TAPE & REEL: Dimensions: mm Visit www.abracon.com for Terms & Conditions of Sale Revised (O): 03.11.08 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com ABRACON IS ISO 9001 / QS 9000 CERTIFIED
