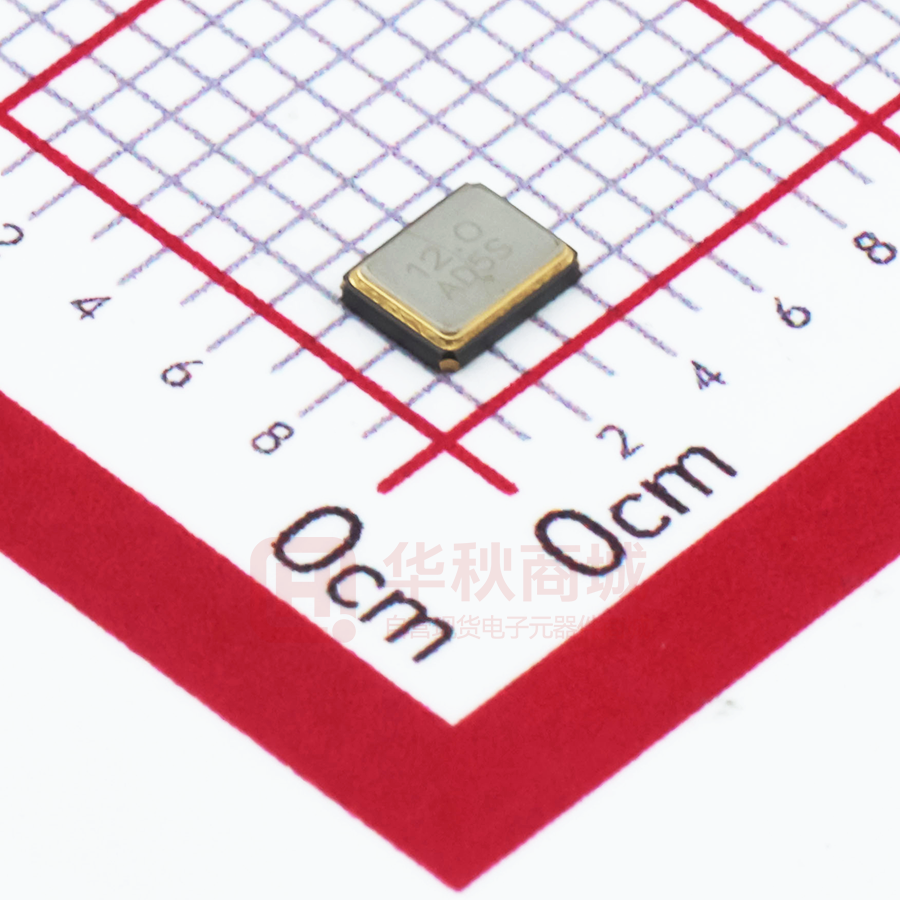

ABM8-272-T3

ABM8-272-T3 Ultra Miniature Ceramic SMD Crystal 1.0 Date of Issue: Nov 16th, 2023 3.2 x 2.5 x 0.8mm Page (1) of (4) Abracon Drawing # 456603 Application √ Non-safety Safety Revision #: IR Key Electrical Specifications Parameters Minimum Center Frequency Operation Mode Operating Temperature Storage Temperature Frequency Tolerance at +25 ºC Frequency Stability over the Operating Temperature ( ref. to +25°C) Equivalent series resistance (R1) Shunt Capacitance (C0) Load capacitance (CL) Drive Level Aging Insulation Resistance Typical Maximum 12.000 Fundamental-AT Units Notes MHz -40 -55 -30 +85 +125 +30 ºC ºC ppm -30 +30 ppm 50 3.0 Ω pF pF µW ppm @25±3°C, 1st year MΩ @100Vdc±15V 10 10 200 +5 -5 500 2.0 ABM8-272-T3 is RoHS/RoHS II Compliant and Pb free 3.0 Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = 1 4.0 Part Identification and ordering information ABM8-272Packaging Blank: Bulk T3: 3kpcs / reel ABM8-272-T3 Ultra Miniature Ceramic SMD Crystal Date of Issue: Nov 16th, 2023 3.2 x 2.5 x 0.8mm Page (2) of (4) Abracon Drawing # 456603 Application √ Non-safety Safety Revision #: IR 5.0 Mechanical Dimensions Note: Due to material availability, the chamfer could be located on pin #1, 3, or 4. Be advised that the chamfer location has no impact on the electrical performance of the device. Dimensions: mm ABM8-272-T3 Ultra Miniature Ceramic SMD Crystal Date of Issue: Nov 16th, 2023 3.2 x 2.5 x 0.8mm Page (3) of (4) Abracon Drawing # 456603 6.0 Reflow Profile Application √ Non-safety Safety Revision #: IR ABM8-272-T3 Ultra Miniature Ceramic SMD Crystal Date of Issue: Nov 16th, 2023 3.2 x 2.5 x 0.8mm Page (4) of (4) Abracon Drawing # 456603 7.0 Packaging: T3:Tape and Reel (3,000pcs/reel) Dimensions: mm Application √ Non-safety Safety Revision #: IR
