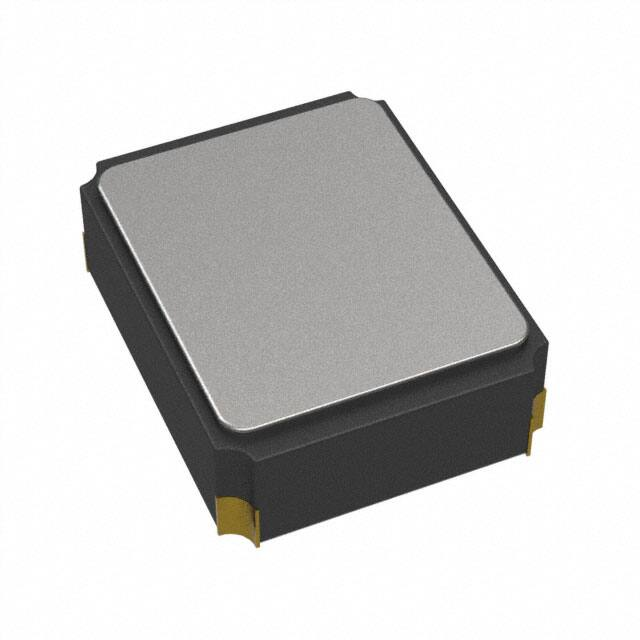

ABM8G-106-12.000MHZ-T

ULTRA MINIATURE CERAMIC GLASS SEALED SMD CRYSTAL ABM8G-106-12.000MHZ-T Pb in glass exemption 7 (c)-I per RoHS II 2011/65/EU Annex 3.2 x 2.5 x 1.0mm RoHS/RoHS II Compliant MSL = N/A: NOT APPLICABLE FEATURES APPLICATIONS • Low in height; suitable for thin equipment • Glass sealed package assures high reliability and high temperature operation • IR reflow capable • Low cost version of ABM8 crystal • • • • Automotive applications High density applications Modems, communication and test equipment. PMCIA, Wireless applications KEY ELECTRICAL SPECIFICATIONS Parameters Frequency Range Operation Mode Operating Temperature Range Storage Temperature Frequency Tolerance @ +25°C Frequency Stability over the Operating Temperature ( ref. to +25°C) Equivalent series resistance (R1) Shunt capacitance (C0) Load capacitance (CL) Drive Level Aging@25°C±3°C Insulation Resistance Minimum Typical 12.000 Fundamental Maximum Units MHz -40 -40 -20 +85 +85 +20 ºC ºC ppm -30 +30 ppm 120 5.0 Ω pF pF µW ppm MΩ 10 10 100 ±3 500 Notes First year @ 100Vdc ± 15V PART IDENTIFICATION ABM8G-106-12.000MHZPackaging Blank: Bulk T3: T: 1kpcs 3kpcs//reel reel T3: 3kpcs / reel LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 03.19.2018 ABRACON IS ISO9001-2008 CERTIFIED ULTRA MINIATURE CERAMIC GLASS SEALED SMD CRYSTAL ABM8G-106-12.000MHZ-T Pb in glass exemption 7 (c)-I per RoHS II 2011/65/EU Annex 3.2 x 2.5 x 1.0mm RoHS/RoHS II Compliant MSL = N/A: NOT APPLICABLE MECHANICAL DIMENSIONS Dimensions: inches (mm) Note: Due to the availability of raw materials, this part may be manufactured with the chamfer on pin 4. Be advised that this does not affect the electrical characteristics of the crystal in any way. SEALING METHOD = GLASS SEALING LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 03.19.2018 ABRACON IS ISO9001-2008 CERTIFIED ULTRA MINIATURE CERAMIC GLASS SEALED SMD CRYSTAL ABM8G-106-12.000MHZ-T Pb in glass exemption 7 (c)-I per RoHS II 2011/65/EU Annex 3.2 x 2.5 x 1.0mm RoHS/RoHS II Compliant MSL = N/A: NOT APPLICABLE REFLOW PROFILE Zone Description Temperature Time 1 Preheat / Soak TSMIN ~ TSMAX 150°C ~ 180°C 60 ~ 120 sec. 2 Reflow 3 Peak Heat TL 230°C TP 260°C ±5°C 30 ~ 40 sec. 10 sec. MAX. PACKAGING: T: Tape and reel (1,000 pcs/reel) T3: Tape and reel (3,000 pcs/reel) Dimensions: mm LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 03.19.2018 ABRACON IS ISO9001-2008 CERTIFIED
