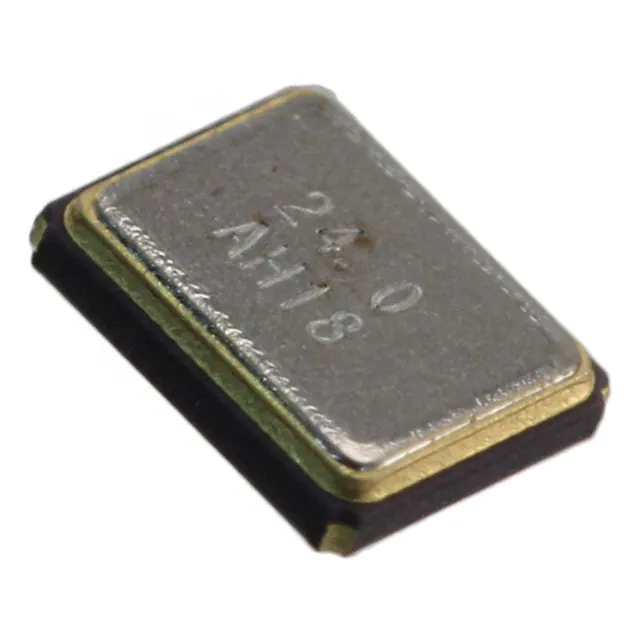

ABM8X-101-24.000MHZ-T

ULTRA MINIATURE CERAMIC PACKAGE HIGH STABILITY SMD CRYSTAL ABM8X Pb RoHS/RoHS II Compliant 3.2 x 2.5 x 0.6mm Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable FEATURES: APPLICATIONS: • -40ºC to +125ºC wide operating temperature range • ±40 ppm Max. All Inclusive frequency stability over 10-year product life • Fundamental Mode, low ESR Quartz design • Ultra miniature, Seam-Sealed, RoHS compliant reflow-able package • Zigbee based designs for indoor / outdoor applications • Wireless Sensor Networks • Industrial Control • Home and Building Automation • Consumer Electronics • PC Peripherals STANDARD SPECIFICATIONS Parameters Minimum Center Frequency Operation Mode Operating Temperature Storage Temperature Overall Frequency Stability (All inclusive) Frequency Tolerance Frequency Stability over the Operating Temperature Range ( ref. to +25°C) Aging Equivalent series resistance (R1) Shunt capacitance (C0) Motional capacitance (C1) Load capacitance (CL) Drive Level Insulation Resistance -40 -55 -40 -10 Typical Maximum 24.000 32.000 Fundamental +125 +155 +40 +10 Units MHz ºC ºC ppm ppm -25 +25 ppm -5 +5 60 2.5 ppm Ω pF fF pF µW MΩ 2.0 10 50 100 500 Notes @25±3°C 10 years @100Vdc±15V Options and Part Identification (left blank if standard) ABM8X - - - MHz Packaging Blank: Bulk T: 1kpcs / reel Internal Code 101 102 Example Part #: ABRACON IS ISO9001:2008 CE CERTIFIED RTIFIED Frequency 24.000 MHz 32.000 MHz ABM8X-101-24.000MHz-T Visit www.abracon.com for Terms & Conditions of Sale Revised: 04.26.11 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com ULTRA MINIATURE CERAMIC PACKAGE HIGH STABILITY SMD CRYSTAL ABM8X Pb RoHS/RoHS II Compliant 3.2 x 2.5 x 0.6mm OUTLINE DIMENSIONS: Dimensions: mm REFLOW PROFILE: TAPE & REEL: 1000pcs/reel Dimensions: mm Need a test socket for the ABM8X Series? To view compatible PRECISION TEST & BURN-IN SOCKETS for these parts, click here. P/N AXS-3225-04-01 ABRACON IS ISO9001:2008 CE CERTIFIED RTIFIED ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. Visit www.abracon.com for Terms & Conditions of Sale Revised: 04.10.12 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
