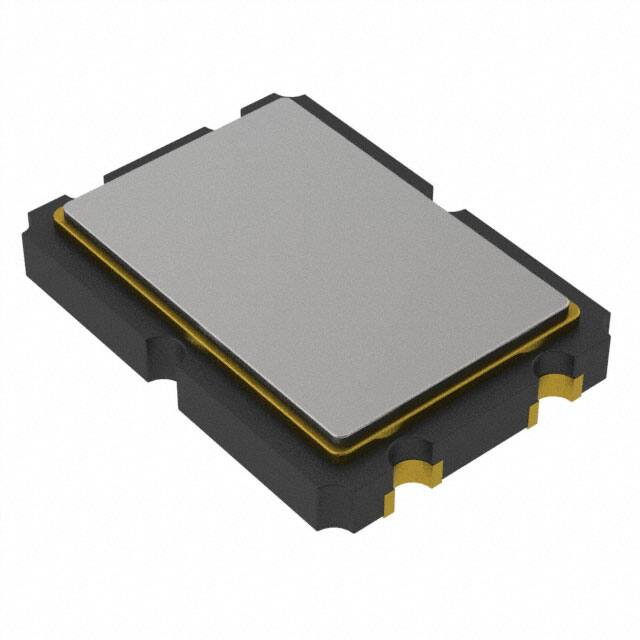

ABMM1-25.000MHZ-R40-D2X-T

CER AMIC SURFACE MO UNT LOW PR OFILE MICROPROCE SS OR CR YSTA L ABMM1 Pb RoHS Compliant FEATURES: 7.2 x 5.2 x 1.1 mm | | | | | | | | | | | | | | | APPLICATIONS: • Suitable for RoHS reflow profile • Low height 1.1mm • Ideal for thin equipment • AT cut offers a tight tolerance and stability ± 50ppm • Computers, Modems, Microprocessors • Communication, Test equipment • PCMCIA STANDARD SPECIFICATIONS: PARAMETERS ABRACON P/N Frequency Range Operation Mode Operating Temperature Storage Temperature Frequency Tolerance at +25°C Frequency Stability over the Operating Temp. (Ref to +25°C) Equivalent Series Resistance Shunt Capacitance C0 Load Capacitance CL Drive Level Aging at 25°C First Year Insulation Resistance ABMM1 Series 6.0 MHz to 125 MHz AT-cut 6.0 MHz ~ 33.0 MHz (Fundamental: Standard) 33.01 MHz ~ 125 MHz (Third-Overtone: Standard) 33.01 MHz ~ 50.0 MHz (Fundamental: See options) - 10°C to + 60°C (see options) - 40°C to + 85°C ± 50 ppm max. (see options) ± 50 ppm max. (see options) See Table 1 7pF max. 18pF (see options) 500µW max., 100µW typical ± 5ppm max. 500Mohms min at 100Vdc ± 15V TABLE 1 ESR (Ω) µαξ. ESR (Ω) µαξ. Frequency (MHz) Frequency (MHz) 6.000 - 11.999(Fund) 70 40 33.000 - 125.00(3rd O/T) 12.000 - 20.000(Fund) 50 80 OPTIONS & PART IDENTIFICATION: (Left blank if standard) ABMM1 - Frequency Frequency in MHz e.g. 14.31818 MHz 26.000 MHz Load Capacitance Please specify CL in pF or S for Series (8 to 33pF) Ω Consult with ABRACON for CL value under 8pF. ESR if other than STD RXXX (Value in Ω). If it is custom ** -10°C TO 60°C only *** Temp option E, B and -10 to +60?C only **** Freq. stability ±50ppm and ±100ppm only. Contact ABRACON for tighter freq. stability. ABRACON IS ISO9001:2008 CERTIFIED -R - Operating Temp. E 0°C ~ +70°C B -20°C ~ +70°C C -30°C ~ +70°C N -30°C ~ +85°C D -40°C ~ +85°C J**** -40°C to +105°C K**** -40°C to +125°C Freq. Tolerance 1 ± 10 ppm max. 7 ± 15 ppm max. 2 ± 20 ppm max. 3 ± 25 ppm max. 4 ± 30 ppm max. - - - Packaging Blank T Bulk Tape & Reel Mode F for Fund. AT>=33MHz Freq. Stability U** ± 10 ppm max. G*** ± 15 ppm max. X ± 20 ppm max. W ± 25 ppm max. Y ± 30 ppm max. H ± 35 ppm max. Visit www.abracon.com for Terms & Conditions of Sale Revised: 07.08.10 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com CERAMIC SURFACE MOUNT LOW PROFILE MICROPROCESSOR CRYSTAL CERAMIC SURFACE MOUNT LOW Pb RoHS Compliant ABMM1 7.2 x 5.2 x 1.1 mm | | | | | | | | | | | | | | | OUTLINE DRAWING: Dimensions: Inches (mm) TAPE & REEL: Tape and reel (1,000pcs/reel) REFLOW PROFILE Dimensions: (mm) ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. ABRACON IS ISO9001:2008 CERTIFIED Visit www.abracon.com for Terms & Conditions of Sale Revised: 07.08.10 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
