ABS06

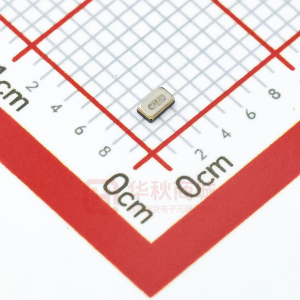

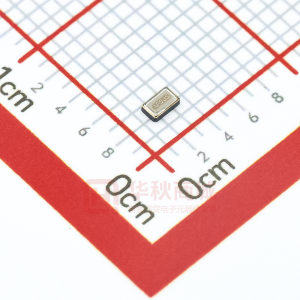

32.768kHz SMD LOW PROFILE CRYSTAL ABS06 FEATURES: • Smallest industry package size for 32.768kHz crystals • 0.6mm height ideal for high density circuit boards • Ceramic package offers excellent environmental & heat resistance • Extended temperature -40°C to +85°C for industrial applications Pb RoHS Compliant APPLICATIONS: 2.0 x 1.2 x 0.6mm ||||||||||||||| • Wide range in communication & measuring equipment • Commercial & Industrial applications • Automotive electronics applications • Wireless communications • PDA and Palm Pilots STANDARD SPECIFICATIONS: PARAMETERS ABRACON P/N Nominal Frequency Operating Temperature Turn-over Temperature Storage Temperature Frequency Tolerance Temperature Coefficient Equivalent Series Resistance Load Capacitance CL Drive Level Aging (first year) 25°C Insulation Resistance ABS06 Series 32.768 kHz -40°C to + 85°C +25°C to ±5°C -55°C to +125°C ±20 ppm max. - 0.034±0.005 ppm/°C² 90 kohms max. 12.5 pF (see option) 0.5 µW max. ± 3 ppm max. 500 MΩ with 100 Vdc ±15V EXAMPLE TUNING FORK CRYSTAL TEMPERATURE CURVE OPTIONS AND PART IDENTIFICATION: (Left blank if standard) ABS06-32.768kHz- - Blank T Packaging Bulk Tape and Reel Load Capacitance Blank 12.5pF 9 9pF Freq. Tolerance 1 ± 10 ppm 4 ± 30 ppm *Contact ABRACON for non-standard load capacitance. ABRACON IS ABRACON ISO 9001 / QS 9000 CERTIFIED Visit www.abracon.com for Terms & Conditions of Sale Revised: 12.09.09 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com 32.768kHz SMD LOW PROFILE CRYSTAL ABS06 OUTLINE DRAWING: TAPE & REEL: Pb RoHS Compliant 2.0 x 1.2 x 0.6mm ||||||||||||||| T = Tape and reel 3,000pcs/reel Dimensions: inches (mm) Dimensions: mm TAPE & REEL: Need a test socket for the ABS06 Series? To view compatible PRECISION TEST & BURN-IN SOCKETS for these parts, click here. P/N AXS-2012-02-04 ABRACON IS ABRACON ISO 9001 / QS 9000 CERTIFIED NOTE: Abracon manufactured products are intended for general commercial and industrial use. For applications requiring high reliability and/or presenting extreme operating environment, written consent & authorization from Abracon is required. Visit www.abracon.com for Terms & Conditions of Sale Revised: 12.09.09 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
