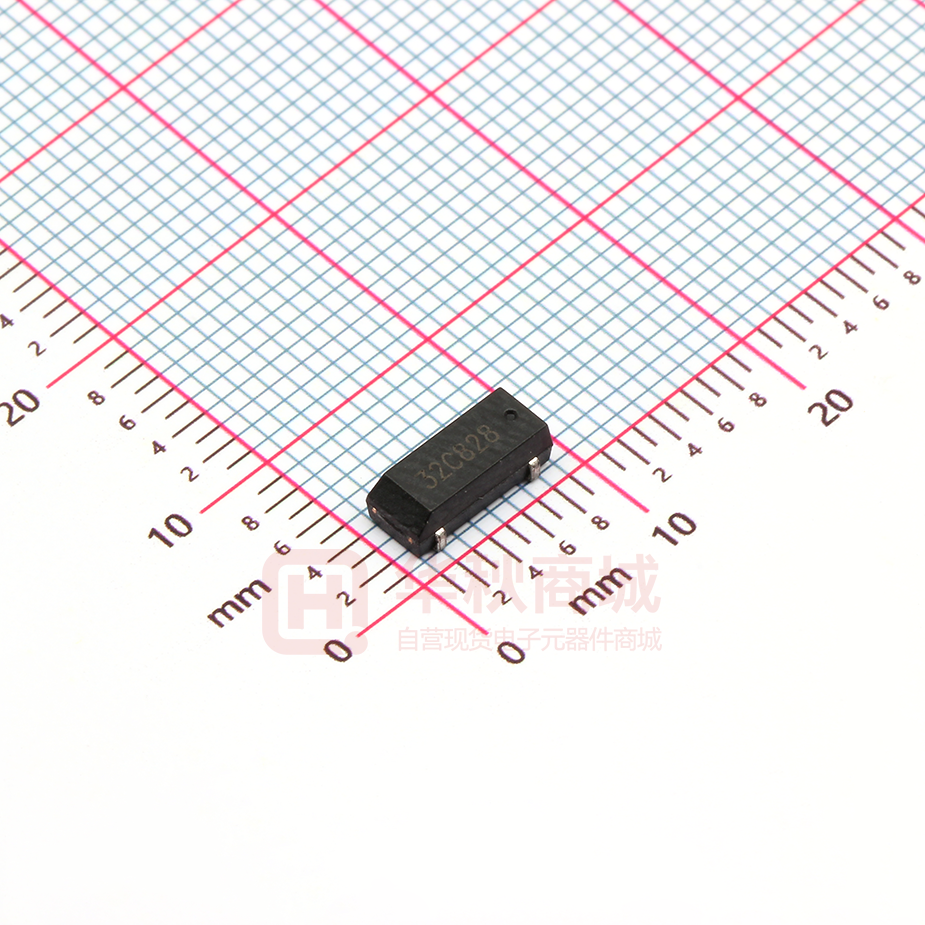

ABS25-32.768KHZ-1-T

32.768 kHz LOW FREQUENCY SMD CRYSTAL ABS25 Pb in High Temperature Solder (exempt 7(a) per 2015/863/EU Annex) RoHS 8.0 x 3.8 x 2.5 mm Compliant | | | | | | | | | | | | | | FEATURES: APPLICATIONS: • Plastic molded SMD • 2.5mm height ideal for high density circuit boards • Suitable for RoHS compliant reflow • Extended temperature -40°C to +85°C for industrial applications • Wide range in communication & measuring equipment • Commercial & Industrial applications • Computer clock STANDARD SPECIFICATIONS: Parameters Minimum Typical Maximum Units Nominal Frequency ----- 32.768 ----- kHz Frequency Range Operating Temperature Turnover Temperature Storage Temperature 30 -40 +20 -55 -20 --------+25 --------- 100 +85 +30 +125 +20 kHz ºC ºC ºC -30 ----- +30 --------- 450 425 to 800 -0.035±0.01 ----1.35 0.8 to 1.7 12.5 ----------------- --------- Frequency Tolerance @+25°C Capacitance Ratio (C0/C1) Frequency Coefficient (ß) Equivalent series resistance (R1) --------- Shunt capacitance (C0) Load capacitance (CL) Drive Level -----3 -5 500 Aging @ 25°C±3°C (First year) Insulation Resistance 50 ----- 1 +3 +5 ----- ppm Notes Other frequencies 32.768kHz Other frequencies 32.768kHz Other frequencies ppm/ºC 2 k pF pF pF µW ppm M 32.768kHz Other frequencies See options 32.768kHz Other frequencies @ 100Vdc ± 15V OPTIONS AND PART IDENTIFICATION: (Left blank if standard) ABS25 - Frequency in kHz Please specify the frequency in kHz. e.g. 32.768kHz - Load Capacitance (pF) Blank: 12.5pF Please specify load cap. in pF (ex. 6pF) if not standard - - Freq. Tolerance 1: ± 10 ppm 5: ± 15 ppm 2*: ± 20 ppm 3: ± 25 ppm 4**: ± 30 ppm Packaging Blank: Bulk T: Tape and Reel * STD for 32.768kHz. Please leave this blank if F is 32.768kHz. ** STD for other frequencies. Please leave this blank if F is not 32.768kHz. LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 09-30-19 ISO9001-2015 CERTIFIED | 32.768 kHz LOW FREQUENCY SMD CRYSTAL ABS25 Pb in High Temperature Solder (exempt 7(a) per 2015/863/EU Annex) RoHS Compliant 8.0 x 3.8 x 2.5 mm | | | | | | | | | | | | | | OUTLINE DRAWING: Electrode Arrangement Pin 2 and 3 are not connected to the GND (Floating) Dimensions: (inches) mm REFLOW PROFILE TAPE & REEL: T = Tape and reel 3,000pcs/reel 2.65±0.3 Dimensions: mm ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 09-30-19 ISO9001-2015 CERTIFIED | Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: ABRACON: ABS25-32.768KHZ-T ABS25-32.768KHz-4-T ABS25-32.768KHz-1-T ABS25-32.768KHZ-6-T ABS25-100.000KHz T ABS25-32.000KHz T ABS25-32.768KHz-6-1-T ABS25-38.000KHz T ABS25-60.000KHz T ABS25-32.000KHZ-T ABS25-100.000KHZ-T ABS25-38.000KHZ-T
