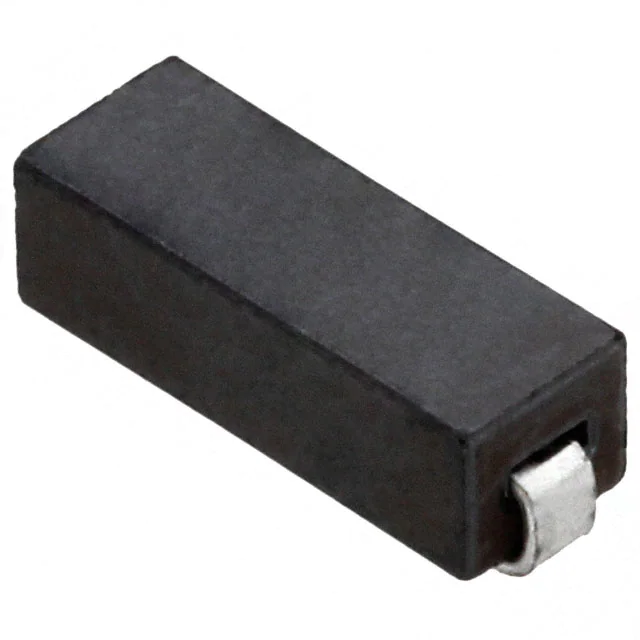

Surface Mount Ferrite Chip Beads
ACSB-02-T
Pb RoHS/RoHS II Compliant
FEATURES:
• Suitable for high density mounting or where board space is at a premium.
• Superior attenuation across a broad frequency range up to GHz range.
• Wide operating temperature range of -40ºC to +85ºC.
• RoHS Compliant and lead free.
8.50 x 3.10 x 2.60mm
|
APPLICATIONS:
• Notebooks, Tablets, Smartphones, Cameras,
DVD/Blu-ray players, LED TVs, Motherboards,
Power Supplies, Modems
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature:
Storage Temperature and Humidity (In Tape and Reel)
Key Electrical Specifications
Impedance
Z (Ω)
55 Min
90 ± 20%
Test
Frequency
MHz
25
100
ACSB-02-T
-40˚C to +85˚C
+5˚C to +40˚C, 60% to 70% RH
RDC
IDC
mΩ (Max)
A (Max)
0.9
5
Test Conditions
Instrument: Agilent 4294A Precision Impedance Analyzer.
IDC: Based on temperature rise (∆ T : 40oC TYP. )
ELECTRICAL CHARACTERISTIC CURVE
OUTLINE DIMENSIONS:
Recommended Land Pattern
A
B
C
D
E
F
G
8.50±0.15
3.10±0.10
2.60±0.10
1.70±0.40
3.00 ref.
4.5 ref.
1.8 ref.
Dimension: mm
ABRACON IS
ISOISO
9001
9001:2008
/ QS 9000
CERTIFIED
Revised: 09.20.13
Visit www.abracon.com for Terms & Conditions of Sale
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
Surface Mount Ferrite Chip Beads
ACSB-02-T
Pb RoHS/RoHS II Compliant
8.50 x 3.10 x 2.60mm
|
REFLOW PROFILE:
.
TAPE & REEL:
Packing
T: 500pcs / reel
A0
B0
K0
P1
W
t
L
I
J
N
3.2 ± 0.1
9.3 ± 0.1
3.1 ± 0.1
8
16
0.3
178
1.4
16
60
Dimension: mm
ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISOISO
9001
9001:2008
/ QS 9000
CERTIFIED
Revised: 09.20.13
Visit www.abracon.com for Terms & Conditions of Sale
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
