AEACAC198013-S698

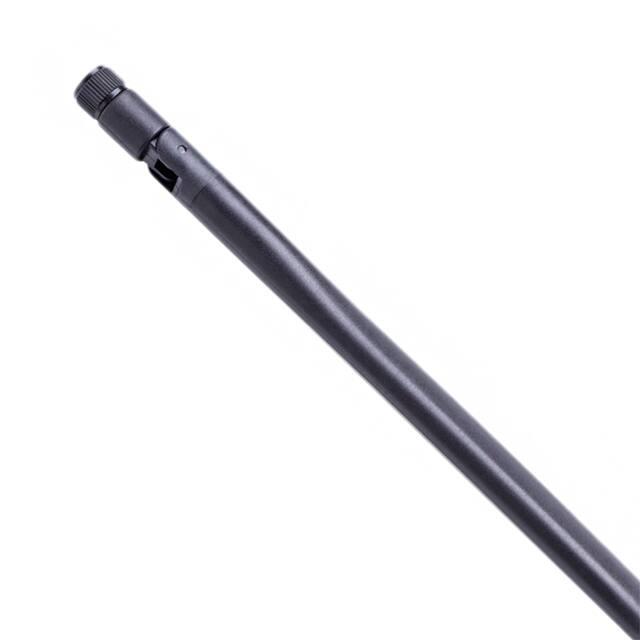

4G/LTE External Antenna AEACAC198013-S698 198.0 x Ø13.0 mm Pb RoHS/RoHS II Compliant MSL = N/A: NOT APPLICABLE FEATURES • • • • APPLICATIONS Operates in 698-960 MHz and 1710-2655 MHz Gain of 3dBi VSWR ≤ 3.0 Input of 10W • • • • • • • 4G/LTE 2G/3G/4G radios LTE radios Gateways Set-Top Boxes Security IoT ELECTRICAL SPECIFICATIONS Parameters Frequency Range VSWR Polarization Model Impedance Gain Operating Temperature Input Power min -40 Typ. 698~960/1710~2655 Linear 50 3 Max. 3.0 +85 10 Units MHz Note Ω dBi ˚C W RETURN - LOSS CHARACTERSTICS S11 Return-Loss LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 03.19.2018 ABRACON IS ISO9001-2008 CERTIFIED 4G/LTE External Antenna AEACAC198013-S698 198.0 x Ø13.0 mm Pb RoHS/RoHS II Compliant MSL = N/A: NOT APPLICABLE RADIATION PATTERNS Antenna 2D Patterns XY Plane XZ Plane YZ Plane Antenna 3D Patterns 700 MHz 824 MHz 868 MHz LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 03.19.2018 ABRACON IS ISO9001-2008 CERTIFIED 4G/LTE External Antenna AEACAC198013-S698 198.0 x Ø13.0 mm Pb RoHS/RoHS II Compliant MSL = N/A: NOT APPLICABLE RADIATION PATTERNS 960 MHz 1710 MHz 1850 MHz 1990 MHz 2170 MHz 2690 MHz Frequency (MHz) 700 824 868 960 1710 1850 1990 2170 2690 Peak Gain (dBi) 3.50 3.60 4.60 3.30 -0.40 3.20 2.00 1.69 0.52 Efficiency (%) 55 58 57 56 57 60 63 60 58 LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 03.19.2018 ABRACON IS ISO9001-2008 CERTIFIED 4G/LTE External Antenna AEACAC198013-S698 198.0 x Ø13.0 mm Pb RoHS/RoHS II Compliant MSL = N/A: NOT APPLICABLE DIMENSIONS: Parameters RF Connector Mounting Type Description SMA Male Connector mount Unit: mm PACKAGING: Each 495 x 225 x 270 mm size carton includes 500 pcs antenna, 13kgs/carton. Unit: mm LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 03.19.2018 ABRACON IS ISO9001-2008 CERTIFIED
