AFAC240020-M698

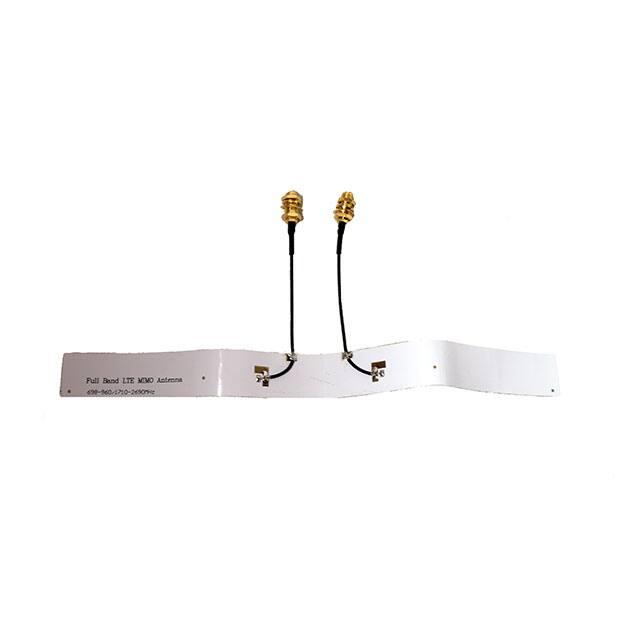

2x MIMO 4G/LTE Flexible Printed Antenna AFAC240020-M698 Pb 240.0 x 20.0 x 0.2 mm RoHS/RoHS II Compliant MSL = Not Applicable Features Applications •• Covers 4G/LTE •• Operates in 698-960/1710-2690 MHz •• Linear polarization •• Gain of 3.0 dBi •• Low profile •• Omni-directional pattern •• IPEX connectors with cables •• Adhesive mounting •• Cellular 2G/3G/4G applications •• IoT •• SmartGrid, Meters •• Remote Monitoring, Sensor Networks •• Transportation •• Industrial wearable •• Smart city •• Smart agriculture •• Home automation •• Gateways and Routers •• High speed HD streaming •• LTE Access Points Electrical Specifications Parameters Frequency Range VSWR Polarization Model Impedance Gain Min. Typ. 698~960 / 1710~2690 Max. Units MHz Notes 3.0 Linear 50 3.0 Ω dBi Mechanical Specification Parameters Connector Cable Type Mounting FPC Dimensions Description IPEX RF1.37/100mm Embedded 240 x 20 x 0.2 mm Parameters Operating Temperature Vibration Description -40˚C to +85˚C 10 to 55 Hz with 1.5 mm amplitude 2 hours Environmental Specification LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 10-24-19 ISO9001-2015 CERTIFIED 2x MIMO 4G/LTE Flexible Printed Antenna AFAC240020-M698 Pb 240.0 x 20.0 x 0.2 mm RoHS/RoHS II Compliant MSL = Not Applicable Dimensions LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 10-24-19 ISO9001-2015 CERTIFIED 2x MIMO 4G/LTE Flexible Printed Antenna AFAC240020-M698 Pb 240.0 x 20.0 x 0.2 mm RoHS/RoHS II Compliant MSL = Not Applicable VSWR LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 10-24-19 ISO9001-2015 CERTIFIED 2x MIMO 4G/LTE Flexible Printed Antenna AFAC240020-M698 Pb 240.0 x 20.0 x 0.2 mm RoHS/RoHS II Compliant MSL = Not Applicable Gain & Efficency Frequency 698 824 868 960 1710 1850 1990 2170 2690 Efficiency 0.66 0.64 0.67 0.64 0.59 0.61 0.60 0.59 0.59 Gain (dBi) 2.53 3.95 4.17 2.82 -0.07 1.05 1.51 2.46 2.53 Radiation Pattern LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 10-24-19 ISO9001-2015 CERTIFIED 2x MIMO 4G/LTE Flexible Printed Antenna AFAC240020-M698 Pb 240.0 x 20.0 x 0.2 mm RoHS/RoHS II Compliant MSL = Not Applicable Radiation Pattern 2D Pattern LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 10-24-19 ISO9001-2015 CERTIFIED 2x MIMO 4G/LTE Flexible Printed Antenna AFAC240020-M698 Pb 240.0 x 20.0 x 0.2 mm RoHS/RoHS II Compliant MSL = Not Applicable Radiation Pattern 3D Pattern 698 MHz 824 MHz 868 MHz 960 MHz 1710 MHz 1850 MHz 1990 MHz 2170 MHz 2690 MHz LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 10-24-19 ISO9001-2015 CERTIFIED 2x MIMO 4G/LTE Flexible Printed Antenna AFAC240020-M698 Pb 240.0 x 20.0 x 0.2 mm RoHS/RoHS II Compliant MSL = Not Applicable Packaging Each 37 x 36 x 17 cm size carton includes 500 pcs antenna, weighs 10 kg ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 10-24-19 ISO9001-2015 CERTIFIED
