AFS14A11-722.00-T3

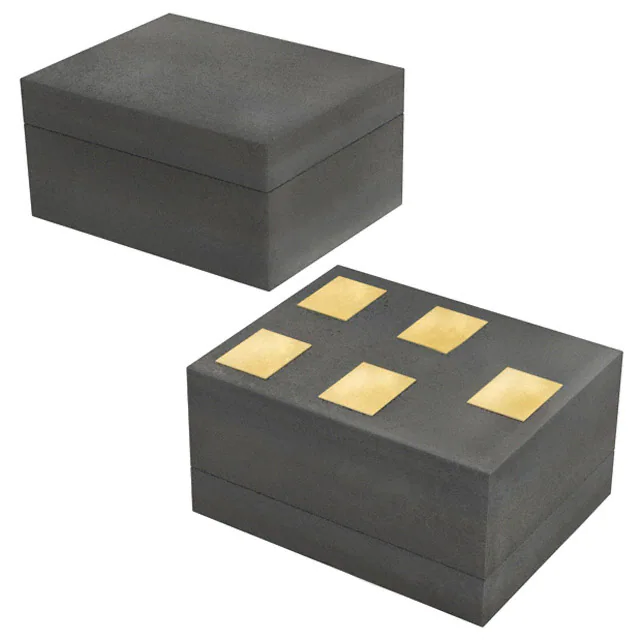

Surface Mount 722.00MHz SAW Filter AFS14A11-722.00-T3 Pb RoHS Compliant Moisture Sensitivity Level (MSL) = 3 FEATURES: 1.4 x 1.1 x 0.7 mm | | | | | | | | | | | | | | | APPLICATIONS: • 1.4 x 1.1 x 0.7 mm low profile SMT package • Low Insertion loss • Excellent selectivity with high out-of-band rejection •Wireless Communication • Remote Control • Cellular Phones ELECTRICAL SPECIFICATIONS: Maximum Ratings Item Input Power Level DC Permissive Voltage Operating Temperature Range Storage Temperature Range Parameters Center Frequency (fc) Insertion Loss (IL) Effective Bandwidth Amplitude Ripple Group Delay Ripple Stop-band Attenuation (Referenced to 0.0 dB) Source Impedance (ZS) Load Impedance (ZL) Minimum 35 3 0.5 0.5 5 23 30 40 40 32 30 25 20 Value +15 dBm max. 3.0V DC max. -10ºC to + 60ºC -40ºC to + 85ºC Typical 722.00 2.1 11 0.4 35 38 7 1.5 2.0 11.1 27 36 52 46 36 34 33 26 50 50 Maximum 2.8 1.2 80 Units MHz dB MHz dB ns p-p dB Ω Ω Notes (716.29 ~ 727.71 MHz) (716.29 ~ 727.71 MHz) (716.29 ~ 727.71 MHz) 0.1 ~ 698.0MHz 704 ~ 710MHz 710 ~ 716MHz 728 ~ 734MHz 734 ~ 740MHz 740 ~ 746MHz 746 ~ 756MHz 776 ~ 798MHz 824 ~ 960MHz 1575.0MHz 1710 ~ 1785MHz 1920 ~ 1980MHz 2400 ~ 2484MHz See note # 1 See note # 1 Note #1: No matching network required for operation into 50Ω's TEST CIRCUIT: ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED Revised: 04.16.13 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com Surface Mount 722.00MHz SAW Filter AFS14A11-722.00-T3 Pb RoHS Compliant 1.4 x 1.1 x 0.7 mm | | | | | | | | | | | | | | | OUTLINE DIMENSIONS: top view A: C: B, D, E: side view bottom view Input Output Ground Dimensions: mm Recommended Land Pattern: Dimensions: mm ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED Revised: 04.16.13 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com Surface Mount 722.00MHz SAW Filter AFS14A11-722.00-T3 Pb RoHS Compliant 1.4 x 1.1 x 0.7 mm | | | | | | | | | | | | | | | FREQUENCY CHARACTERISTICS: Filter Frequency Response (Narrowband) Filter Frequency Response (Wideband) REFLECTION FUNCTIONS: S11 ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED S22 Revised: 04.16.13 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com Surface Mount 722.00MHz SAW Filter AFS14A11-722.00-T3 Pb RoHS Compliant 1.4 x 1.1 x 0.7 mm | | | | | | | | | | | | | | | REFLOW PROFILE: PACKAGING: 3000 Units/Reel “-T2” parts (2k/reel) are no longer available effective 01/01/2013 Reel Count : 7" = 3k units b Dimensions: mm ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED Revised: 04.16.13 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
