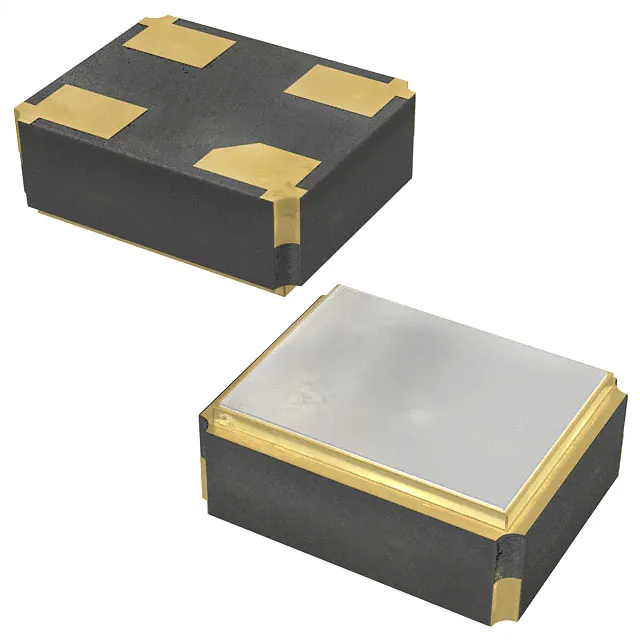

AFS20A05-719.00-T3

Engineering/Process Change Notice ECN/PCN No.: 3542 For Manufacturer Product Description: SAW Filter Abracon Part Number / Part Series: Affected Revision: A New Revision: EOL ☐ Series ☒ Part Number AFS20A05-719-T3 Application: ☐ Safety ☒ Non-Safety Prior to Change: AFS20A05-719-T3 https://abracon.com/Filters/SAW%20FILTERS/AFS20A05-719.00-T3.pdf After Change: EOL Cause/Reason for Change: Product series EOL Change Plan Effective Date: Immediate Additional Remarks: Change Declaration: Issued Date: 4/27/20 For Abracon EOL only Last Time Buy (if applicable): June 30th, 2020 Additional Approval: Alternate Part Number / Part Series: None Available Additional Approval: Additional Approval: Customer Approval (If Applicable) Qualification Status: ☐ Approved ☐ Not accepted Note: It is considered approved if there is no feedback from the customer 1 month after ECN/PCN is released. Customer Part Number: Company Name: Customer Project: Company Representative: Customer Remarks: Form #7020 Rev. D Effective: 02/11/2020 Page 1 of 1 Representative Signature: Surface Mount 719.0MHz SAW Filter AFS20A05-719.00-T3 Pb RoHS/RoHS II Compliant Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable FEATURES: 2.0 x 1.6 x 0.75 mm APPLICATIONS: • 2.0 x 1.6 x 0.75 mm low profile SMT package • Low Insertion loss • Excellent selectivity with high out-of-band rejection •Wireless Communication • Remote Control • Cellular Phones ELECTRICAL SPECIFICATIONS: Maximum Ratings Item Value Input Power Level DC Permissive Voltage Operating Temperature Range Storage Temperature Range +10 dBm max. 3V DC max. -30oC to + 85oC -40oC to + 85oC Minimum Typical Maximum Units Notes L Parameters 5 40 35 30 25 27 37 45 32 719 3 .00 5.00 0 .90 38 8 49 44 44 30 3. 2 0 2.20 95 EO Center Frequency (fc) Insertion Loss (IL) Effective Bandwidth Amplitude Ripple Group Delay Variation Worst-Case Input / Output Return Loss Stop-band Attenuation (Referenced to 0.0 dB) Source Impedance (ZS) Load Impedance (ZL) Note #1: 40 50 51 35 50 50 MHz dB MHz dB ns dB dB Ω Ω 716.5 ~ 721.5MHz 716.5 ~ 721.5MHz 716.5 ~ 721.5MHz 716.5 ~ 721.5MHz DC ~ 690MHz 690 ~ 704MHz 704 ~ 710MHz 728 ~ 734MHz 734 ~ 750MHz 750 ~ 824MHz 824 ~ 960MHz 960 ~ 2500MHz See note # 1 See note # 1 No matching network required for operation into 50Ω's TEST CIRCUIT: ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED LLC 2 Faraday, Suite# B | Irvine | CA 92618 Revised: 03.10.15 Ph. 949.546.8000 | Fax. 949.546.8001 Visit www.abracon.com for Terms and Conditions of Sale Surface Mount 719.0MHz SAW Filter AFS20A05-719.00-T3 Pb RoHS/RoHS II Compliant 2.0 x 1.6 x 0.75 mm OUTLINE DIMENSIONS: Recommended Land Pattern: L M Y EO Input #B: Output #D: #A,C: Ground *All Dimensions are in mm FREQUENCY CHARACTERISTICS: Filter Frequency Response (Narrowband) ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED Filter Frequency Response (Wideband ) LLC 2 Faraday, Suite# B | Irvine | CA 92618 Revised: 03.10.15 Ph. 949.546.8000 | Fax. 949.546.8001 Visit www.abracon.com for Terms and Conditions of Sale Surface Mount 719.0MHz SAW Filter AFS20A05-719.00-T3 Pb RoHS/RoHS II Compliant 2.0 x 1.6 x 0.75 mm FREQUENCY CHARACTERISTIC: Output Return Loss (S22) L Input Return Loss (S11) Detail S-parameter information (.s2p file) available upon request EO Note # 2: REFLOW PROFILE: ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED LLC 2 Faraday, Suite# B | Irvine | CA 92618 Revised: 03.10.15 Ph. 949.546.8000 | Fax. 949.546.8001 Visit www.abracon.com for Terms and Conditions of Sale Surface Mount 719.0MHz SAW Filter AFS20A05-719.00-T3 Pb RoHS/RoHS II Compliant 2.0 x 1.6 x 0.75 mm PACKAGING: 3,000 units/reel EO L Tape Dimensions Reel Dimensions Dimensions: mm ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED LLC 2 Faraday, Suite# B | Irvine | CA 92618 Revised: 03.10.15 Ph. 949.546.8000 | Fax. 949.546.8001 Visit www.abracon.com for Terms and Conditions of Sale
