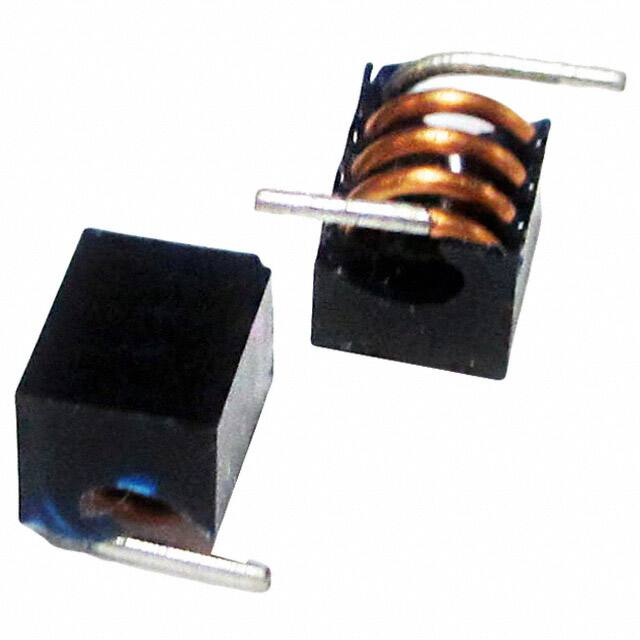

AIAC-1008C-39NK-T

SMT Air Coil Inductor AIAC-1008C Pb RoHS Compliant FEATURES: • High current design • Wide Range Frequency Response • Excellent Q & SRF • Standard flat cap top suitable for automatic placement. 3.20 x 1.90 x 2.20mm APPLICATIONS: Widely used in Cordless Phones, High Frequency Communication Equipments, Intercom, CATV,RFID Suitable for metal sensors and proximity sensors Noise suppression for RF power supply/bias I/O filtering, frequency selection for audio devices such as Loudspeakers,Hifi Impedance Matching for transceivers Improves switch isolation for RF circuit STANDARD SPECIFICATIONS: ABRACON P/N: Operating temperature: Storage temperature: AIAC-1008C -40 °C ~ +125 °C -25°C to + 60°C Part Number Inductance Tolerance DCR (Max) Units Symbol AIAC-1008C-6N8 AIAC-1008C-8N2 AIAC-1008C-10N AIAC-1008C-12N AIAC-1008C-15N AIAC-1008C-18N AIAC-1008C-22N AIAC-1008C-27N AIAC-1008C-33N AIAC-1008C-39N nH L 6.8 8.2 10 12 15 18 22 27 33 39 % K K K K K K K K K K K mΩ DCR 4.0 5.0 6.0 6.5 7.3 9.6 10.8 13.9 19.5 21.6 Q(Min) SRF(Min) MHz 80 80 70 70 70 70 70 70 70 70 >3000 >3000 >3000 >3000 2500 2500 2400 1600 1600 1500 Rated Current (Max) mA IDC 1200 950 950 900 900 840 840 600 500 500 Inductance Code 6N8 8N2 10N 12N 15N 18N 22N 27N 33N 39N Test Conditions and equipments Test frequency: 300MHz Equipment: HP4286A/HP16191A PART IDENTIFICATION: AIAC-1008CInductance Code Please refer to the Electrical Spec Table Tolerance K: ±10% 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com Packaging T: Tape and Reel (4kpcs / reel) ABRACON IS REVISED: 05-26-21 ISO9001-2015 CERTIFIED SMT Air Coil Inductor AIAC-1008C Pb RoHS Compliant 3.20 x 1.90 x 2.20mm OUTLINE DRAWING: Hm OD Lg 2.20 Max 1.90 Max 3.20 Max Recommended Land Pattern A B C 1.02 Min 1.27 Min 2.54 Min Dimension: mm 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 05-26-21 ISO9001-2015 CERTIFIED SMT Air Coil Inductor AIAC-1008C Pb RoHS Compliant 3.20 x 1.90 x 2.20mm REFLOW PROFILE: TAPE & REEL: Packing T: 4,000pcs / reel Ao 2.3±0.10 Bo 3.4±0.10 Ko 2.3±0.10 A 330 B 18 C 12 D 13 E 12 F 8.0 G 4.0 H 1.75 T 0.35 Dimension: mm ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent authorization from Abracon LLC is required. Please contact Abracon LLC for more information.” 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 05-26-21 ISO9001-2015 CERTIFIED
