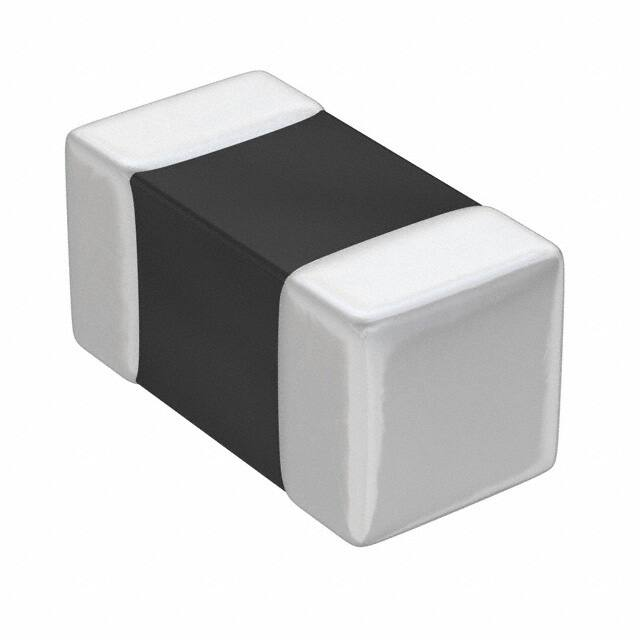

AIML-0603HC-4R7M-T

MULTILAYER FERRITE CHIP INDUCTOR AIML-0603HC RoHS/RoHS II Compliant 1.6 x 0.8 x 0.8mm | | | | | | | | | | | | | | | FEATURES: • Monolithic structure for higher reliability, compact size, & lightweight • Magnetically shielded design to eliminate cross coupling • Excellent solderability and heat resistance for reflow soldering • Perfect shape for PCB mounting with no polarity APPLICATIONS: • DC/DC converter circuit for Front End Module such as Skyworks Solution • Portable AV equipments such as Digital Camera, Camcorder remote Control. STANDARD SPECIFICATIONS: PARAMETERS ABRACON P/N: Operating temperature: Storage temperature: AIML-0603HC-xxx -55°C to + 125°C -55°C to + 125°C Part No. L(µH) AIML-0603HC-3R3M AIML-0603HC-4R7M 3.3 4.7 Tolerance Test Freq. SRF(MHz) DCR(Ω) Isat(mA) Irms(mA) (%) M M (MHz) 1 1 (min) 70 50 ±30% 0.40 0.50 (max) 80 60 (max) 600 500 Test Conditions and equipments L, Q: HP4291 Impedance Analyzer DCR: HP4263A LCR meter SRF: HP4291 Impedance analyzer Irms: HP4291 Impedance Analyzer, DC power HP6632 and Adapter HP16200. Current when temperature of the product reaches +40oC. Isat: HP4291 Impedance Analyzer, DC power HP6632 and Adapter HP16200. ∆L/L (initial) ≥ -30% ELECTRICAL CHARACTERISTICS CURVES ABRACON IS 9001:2008 ISOISO 9001 / QS 9000 CERTIFIED Revised: 01.10.14 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001| www.abracon.com MULTILAYER FERRITE CHIP INDUCTOR AIML-0603HC RoHS/RoHS II Compliant 1.6 x 0.8 x 0.8mm | | | | | | | | | | | | | | | OPTIONS AND PART IDENTIFICATION: AIML-0603HC- - Tolerance M: ±20% Inductance Code Please refer to the table above Packaging T: Tape and Reel (4kpcs / reel) OUTLINE DRAWING: Dimension: mm L W T a1,a2 1.60±0.15 0.80±0.15 0.80±0.15 0.30±0.20 MATERIAL: 1 2 3 4 Part Name Base Material Internal Conductor Terminal Electrode Terminal Electrode ABRACON IS 9001:2008 ISOISO 9001 / QS 9000 CERTIFIED REFLOW PROFILE: Material Ferrite (Ni-Cu-Zn series) Ag Ag Ni-Sn Revised: 01.10.14 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001| www.abracon.com MULTILAYER FERRITE CHIP INDUCTOR AIML-0603HC RoHS/RoHS II Compliant 1.6 x 0.8 x 0.8mm | | | | | | | | | | | | | | | TAPE & REEL: Packing T: 4,000pcs / reel A B C D E F G H ΦJ t(max) 1.05±0.15 1.9±0.15 8.0±0.3 3.5±0.05 1.75±0.1 4.0±0.1 2.0±0.05 4.0±0.1 1.5+0.1/-0 1.0±0.05 A B C D E W t R 178±2 60±2 13.0±0.5 21.0±0.8 2.0±0.5 10.0±1.15 1.2±0.2 1.0±0.25 Dimension: mm ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. ABRACON IS 9001:2008 ISOISO 9001 / QS 9000 CERTIFIED Revised: 01.10.14 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001| www.abracon.com
