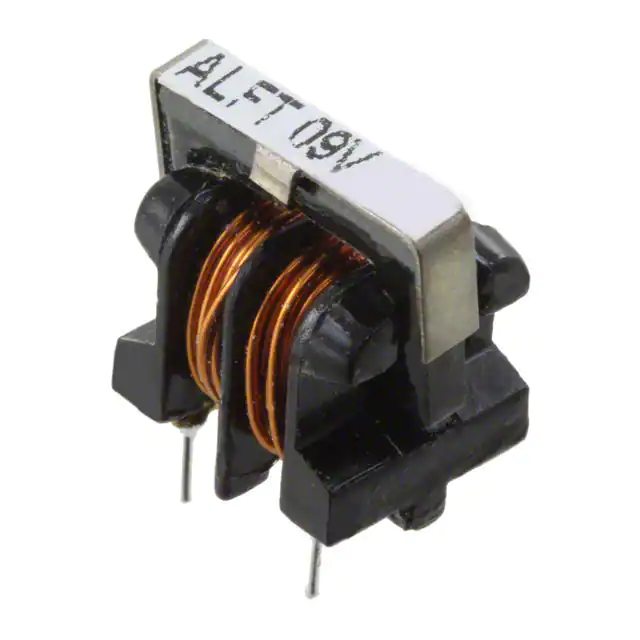

Common Mode Line Filter ALFT-09V Pb FEATURES: • Presents High Common Mode Impedance • Enables significant noise suppression at high frequency RoHS/RoHS II Compliant 16.5 x 11.5 x 17.0mm APPLICATIONS: • Filtering common mode noise in USB, IEEE1394, LVDS, Digital Camera, Scanner. • Digital audio and video equipments such as PDA, DSC, DVC, DVD Player. ELECTRICAL SPECIFICATIONS: Part Number ALFT-09V-Inductance Code L (mH) min. DCR Max (Ω) Ir (Arms) ALFT-09V-501 0.5 0.2 1.4 ALFT-09V-102 1.0 0.4 1.0 ALFT-09V-202 2.0 0.8 0.7 ALFT-09V-502 5.0 1.6 0.5 ALFT-09V-802 8.0 2.5 0.4 ALFT-09V-103 10.0 3.6 0.3 Test Conditions Hipot: 1500VRMS/60Hz/3mA/3sec Ir: Based on temperature rise at 40oC max Operating Temperature -40˚C to +125˚C Storage Temperature -40˚C to +125˚C ELECTRICAL CHARACTERISTICS: ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED ALFT-09V-501 ALFT-09V-202 ALFT-09V-102 ALFT-09V-103 Revised: 01.02.14 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com Common Mode Line Filter ALFT-09V Pb ALFT-09V-501 RoHS/RoHS II Compliant 16.5 x 11.5 x 17.0mm ALFT-09V-202 ALFT-09V-102 ALFT-09V-103 OUTLINE DRAWING: A B C D E F WΦ 11.5 max 16.5 max 17.0 max 5.0 ±1.0 7.0 ±0.5 8.0 ±0.5 0.6 ±0.05 ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED Dimensions: mm Revised: 01.02.14 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com Common Mode Line Filter ALFT-09V Pb RoHS/RoHS II Compliant 16.5 x 11.5 x 17.0mm SCHEMATICS Packing 288pcs/Box ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CERTIFIED Revised: 01.02.14 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
