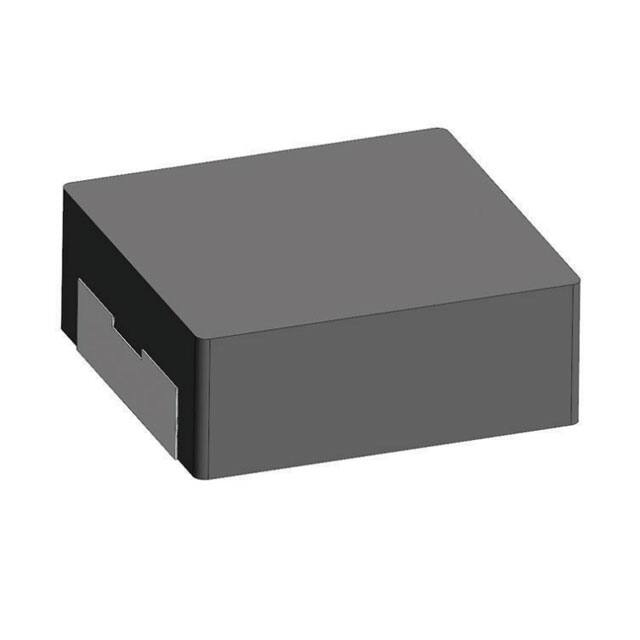

AMDLA1707Q-1R0MT

AMDLA1707Q MOLDED INDUCTOR FEATURES • • • • • AEC-Q200 Qualified Shielded construction Soft saturation Low DCR per cubic mm Designed for switching frequencies between 100KHz-2MHz ELECTRICAL SPECIFICATIONS @ 25°C Part Number* Inductance (uH) AMDLA1707Q-R47MT AMDLA1707Q-R56MT AMDLA1707Q-1R0MT AMDLA1707Q-1R5MT AMDLA1707Q-1R8MT AMDLA1707Q-2R2MT AMDLA1707Q-3R3MT AMDLA1707Q-4R7MT AMDLA1707Q-6R8MT AMDLA1707Q-100MT AMDLA1707Q-150MT AMDLA1707Q-220MT AMDLA1707Q-330MT AMDLA1707Q-470MT AMDLA1707Q-680MT AMDLA1707Q-820MT Tolerance (%) 0.47 0.56 1 1.5 1.8 2.2 3.3 4.7 6.8 10 15 22 33 47 68 82 Check Inventory Request Samples Irms (A) Typ. 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 60 56 46 39 35 32 30 28 24 21 16 13.5 12 9.5 8.0 6.5 Isat (A) Typ. DC Resistance (mΩ) Typ Max 110 80 50 46 40 35 32 29 25 22 16 13.5 12 9.5 0.70 0.81 1.06 1.50 1.70 1.80 2.70 3.70 6.00 9.20 12.8 20.5 32.0 40.0 66.0 69.0 8.5 8.0 0.9 0.97 1.3 1.8 2 2.2 3.3 4.5 7.2 10.6 15.5 24 37 47 76 83 AEC-Q200 QUALIFIED ISO 9001:2015 CERTIFIED Pb ROHS COMPLIANT GENERAL SPECIFICATIONS Type Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame * Please refer to Part Identification section Test Conditions Inductance: 100 kHz, 1 V, 0 Adc Humidity Range: 85 ± 2% RH Temperature Rise Current: Current measured at Δ T of 40°C Saturation Current: Current measured at Δ L of 30% Operating Temperature: -55°C to +155°C with (40°C rise) Irms current. Maximum Part Temperature: +155°C Components Storage Temperature: -55°C to +125°C Tape and Reel Packaging Temperature: –10°C to +40°C MSL: Level 1 MATERIALS Core: Wire: Terminal: Ink: Metal Alloy Copper Tin Plating Black PRODUCT DIMENSIONS 17.8 ± 0.5 M T Series Inductance* Tol. 1 Packaging 2 2. Packaging: B = Bulk T = Tape and Reel (200pcs/reel) *Refer to Electrical Specification table Top View Bottom View Front View Side View RECOMMENDED LANDING PATTERN 18.5 12.5 1R0 6.7 ± 0.3 AMDLA1707Q 11.9 ± 0.3 16.9 ± 0.3 PART BUILDER 1. Tolerance: M = 20% 2.3 ± 0.3 12.0 Dimensions: mm Revised 08/2/2021 AMDLA1707Q MOLDED INDUCTOR RECOMMENDED REFLOW PROFILE 3 Tp Tp Critical Zone TL to Tp Ramp Up Temperature TL TSMAX TL TSMIN Ramp Down Preheat 1 2 25 t 25˚C to Peak Time ZONE DESCRIPTION 1 Preheat 2 Reflow 3 Peak Heat TEMPERATURE Tsmin ~ Tsmax 150°C ~ 200°C TL 217°C TP 260°C TIMES 60 ~ 180 sec. 60 ~ 150 sec. 10 sec. MAX Revised 08/2/2021 AMDLA1707Q MOLDED INDUCTOR PACKAGING Tape and Reel: 200 TYPE A B C D 13” x 32 mm 32.4 +2/-0 100.0 ± 2.0 13.5 +0.5/-0.2 330.0 B0 18.5 ± 0.1 A0 17.5 ± 0.1 K0 7.5 ± 0.1 P W F T D 24.0 ± 0.1 32.0 ± 0.3 14.2 ± 0.1 0.5 ± 0.05 1.5 ± 0.1 Dimensions: mm This product is commercial off-the-shelf (COTS) and not specifically designed for automotive, military, aviation, aerospace, implantable, life-dependent medical or safety applications. This product is not recommended for use in any application requiring high reliability in which component failure could result in loss of life and/or property damage without prior written approval from Abracon. Specifications are subject to change without notice. Contact Abracon for more information. Headquarters: 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 Revised 08/2/2021
