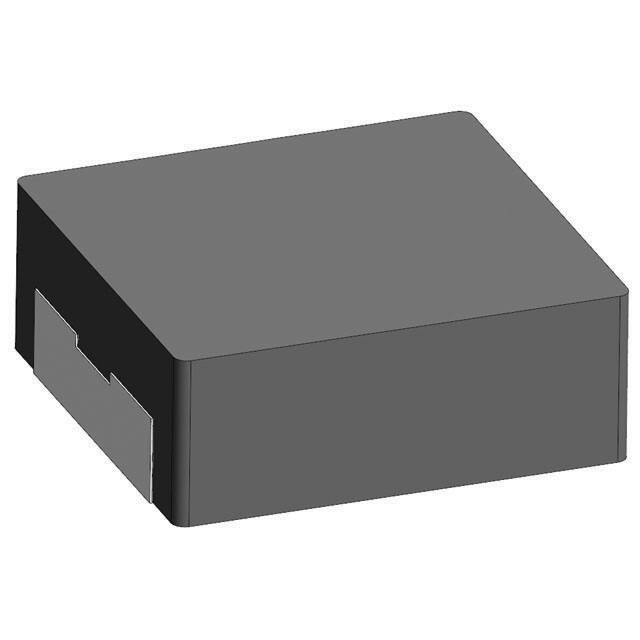

AMDLA1707S-470MT

AMDLA1707S MOLDED INDUCTOR ™ LLC FEATURES • • • • ELECTRICAL SPECIFICATIONS @ 25°C INDUCTANCE (uH) TOLERANCE (%) IRMS (A) ISAT (A) 0.47 0.56 1.0 1.5 1.8 2.2 3.3 4.7 6.8 10 15 22 33 47 82 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 60 56 46 39 35 32 30 28 24 21 16 13.5 12 9.5 6.5 110 80 50 46 40 35 32 29 25 22 16 13.5 12 9.8 8.0 AMDLA1707S-R47MT AMDLA1707S-R56MT AMDLA1707S-1R0MT AMDLA1707S-1R5MT AMDLA1707S-1R8MT AMDLA1707S-2R2MT AMDLA1707S-3R3MT AMDLA1707S-4R7MT AMDLA1707S-6R8MT AMDLA1707S-100MT AMDLA1707S-150MT AMDLA1707S-220MT AMDLA1707S-330MT AMDLA1707S-470MT AMDLA1707S-820MT Pb Shielded construction Soft saturation Low DCR per cubic mm Designed for switching frequencies between 100KHz-2MHz Automotive option available upon request • PART NUMBER* Check Inventory Request Samples DC RESISTANCE (mΩ) TYP MAX 0.7 0.81 1.6 1.5 1.7 1.8 2.7 3.7 6.0 9.2 12.8 20.5 32.0 40.0 69.0 0.9 0.97 1.3 1.8 2.0 2.2 3.3 4.5 7.2 10.6 15.5 24 37 47 83 ROHS COMPLIANT ISO 9001:2015 CERTIFIED GENERAL SPECIFICATIONS TYPE Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame * Please refer to Part Identification section Test Conditions Inductance: 100 kHz, 1 V, 0 Adc Humidity Range: 85 ± 2% RH Temperature Rise Current: Current measured at Δ T of 40°C Saturation Current: Current measured at Δ L of 30% Operating Temperature: -55°C to +155°C with (40°C rise) Irms current. Maximum Part Temperature: +155°C Components Storage Temperature: -55°C to +125°C Tape and Reel Packaging Temperature: -55°C to +80°C MSL: Level 1 MATERIALS Core: Wire: Terminal: Ink: Metal Alloy Copper Tin Plating Black PRODUCT DIMENSIONS 17.8 ± 0.5 AMDLA1707S 1R0 M T Series Inductance* Tol. 1 Packaging 2 1. Tolerance: M = 20% 2. Packaging: B = Bulk T = Tape and Reel (200pcs/reel) *Refer to Electrical Specification table Top View Bottom View 6.7 ± 0.3 PART BUILDER 11.9 ± 0.3 16.9 ± 0.3 2.3 ± 0.3 Front View Side View RECOMMENDED LANDING PATTERN 12.5 18.5 12.0 Dimensions: mm ™ LLC Revised 05/01/20 AMDLA1707S MOLDED INDUCTOR ™ LLC RECOMMENDED REFLOW PROFILE 3 Tp Tp Critical Zone TL to Tp Ramp Up Temperature TL TSMAX TL TSMIN Ramp Down Preheat 1 2 25 t 25˚C to Peak Time ZONE DESCRIPTION 1 Preheat 2 Reflow 3 Peak Heat TEMPERATURE Tsmin ~ Tsmax 150°C ~ 200°C TL 217°C TP 260°C TIMES 60 ~ 180 sec. 60 ~ 150 sec. 10 sec. MAX ™ LLC Revised 05/01/20 AMDLA1707S MOLDED INDUCTOR ™ LLC PACKAGING Tape and Reel: 200 Units per Carton: 800 T&R per Carton: 4 Weight per Carton: 12.1 kg Weight per Unit: 10.6 g Carton Dimensions: 410 x 325 x 415 mm TYPE A B C D 13” x 32 mm 32.4 +2/-0 100.0 ± 2.0 13.5 +0.5/-0.2 330.0 B0 18.5 ± 0.1 A0 17.5 ± 0.1 K0 7.5 ± 0.1 P W F T D 24.0 ± 0.1 32.0 ± 0.3 14.2 ± 0.1 0.5 ± 0.05 1.5 ± 0.1 Dimensions: mm This product is commercial off-the-shelf (COTS) and not specifically designed for automotive, military, aviation, aerospace, implantable, life-dependent medical or safety applications. This product is not recommended for use in any application requiring high reliability in which component failure could result in loss of life and/or property damage without prior written approval from Abracon. Specifications are subject to change without notice. Contact Abracon for more information. ™ LLC Headquarters: 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 Revised 05/01/20
