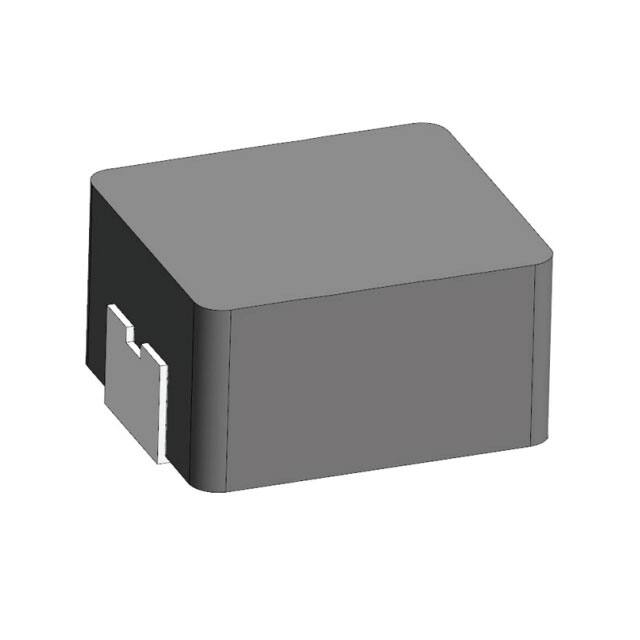

AMDLA3020Q-1R5MT

AMDLA3020Q MOLDED INDUCTOR FEATURES • • • • • Check Inventory Request Samples AEC-Q200 Qualified Shielded construction Soft saturation Low DCR per cubic mm Designed for switching frequencies between 100KHz-5MHz ELECTRICAL SPECIFICATIONS @ 25°C AEC-Q200 QUALIFIED ISO 9001:2015 CERTIFIED Pb ROHS COMPLIANT GENERAL SPECIFICATIONS Operating Temperature: -55°C to +125°C with (40°C rise) Irms current. Maximum Part Temperature: +125°C Components Storage Temperature: -55°C to +125°C Tape and Reel Packaging Temperature: -20°C to +65°C MSL: Level 1 MATERIALS Test Conditions Inductance: 1 MHz, 1 V, 0 Adc Humidity Range: 65% RH Temperature Rise Current: Current measured at Δ T of 40°C Saturation Current: Current measured at Δ L of 30% Core: Wire: Terminal: Ink: PART BUILDER PRODUCT DIMENSIONS T Series Inductance* Tol. 1 Packaging 2 1. Tolerance: M = 20% 2. Packaging: B = Bulk T = Tape and Reel (3,000pcs/reel) *Refer to Electrical Specification table 3.4 ± 0.2 0.70 ± 0.3 Top View Bottom View Front View Side View RECOMMENDED LANDING PATTERN 4.2 2.0 M 1.8 ± 0.2 1R0 3.0 ± 0.2 AMDLA3020Q Metal Alloy Copper Tin Plating Black 1.3 ± 0.2 * Please refer to Part Identification section 1.2 Dimensions: mm Revised 07/07/2021 AMDLA3020Q MOLDED INDUCTOR RECOMMENDED REFLOW PROFILE 3 Tp Tp Critical Zone TL to Tp Ramp Up Temperature TL TSMAX TL TSMIN Ramp Down Preheat 1 2 25 t 25˚C to Peak Time ZONE DESCRIPTION 1 Preheat 2 Reflow 3 Peak Heat TEMPERATURE Tsmin ~ Tsmax 150°C ~ 180°C TL 230°C TP 250°C+0/-5°C TIMES 60 ~ 120 sec. 30 ~ 40 sec. 10 sec. MAX Revised 07/07/2021 AMDLA3020Q MOLDED INDUCTOR PACKAGING Tape and Reel: 3,000 TYPE A B C D 13” x 12 mm 12.4 +2/-0 100.0 ± 0.5 13.0 +0.5/-0.2 330.0 B0 3.8 ± 0.1 A0 3.4 ± 0.1 K0 2.3 ± 0.1 P W F T D 8.0 ± 0.1 12.0 ± 0.3 5.5 ± 0.1 0.3 ± 0.05 1.5 Dimensions: mm Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. Revised 07/07/2021
