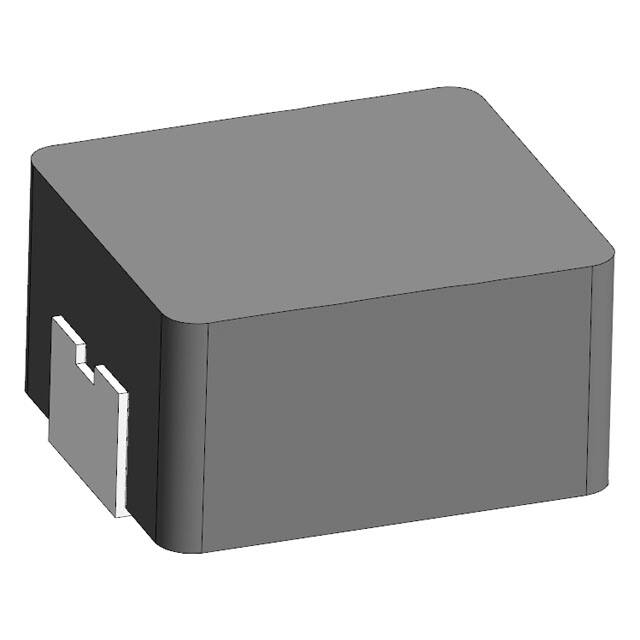

AMDLA3020S-4R7MT

AMDLA3020S MOLDED INDUCTOR LLC FEATURES • • • • ELECTRICAL SPECIFICATIONS @ 25°C INDUCTANCE (uH) TOLERANCE (%) IRMS (A) ISAT (A) 0.22 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10.0 20 20 20 20 20 20 20 20 20 20 20 10.0 9.0 8.0 7.0 5.0 4.2 3.3 2.8 2.4 1.6 1.3 16 14 12 10 8.0 6.0 4.8 4.0 3.5 3.0 1.8 DC RESISTANCE (mΩ) TYP MAX 8 12 15 22 25 34 60 70 120 153 224 10 15 18 26 30 39 69 83 144 184 260 ROHS COMPLIANT ISO 9001:2015 CERTIFIED GENERAL SPECIFICATIONS TYPE Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame * Please refer to Part Identification section Operating Temperature: -55°C to +125°C with (40°C rise) Irms current. Maximum Part Temperature: +125°C Components Storage Temperature: -55°C to +125°C Tape and Reel Packaging Temperature: -20°C to +65°C MSL: Level 1 MATERIALS Core: Wire: Terminal: Ink: Test Conditions Inductance: 1 MHz, 1 V, 0 Adc Humidity Range: 65% RH Temperature Rise Current: Current measured at Δ T of 40°C Saturation Current: Current measured at Δ L of 30% Metal Alloy Copper Tin Plating Black AMDLA3020S 1R0 M T Series Inductance* Tol. 1 Packaging 2 1. Tolerance: M = 20% 2. Packaging: B = Bulk T = Tape and Reel (3,000pcs/reel) 3.4 ± 0.2 0.70 ± 0.3 Top View Bottom View 1.3 ± 0.2 PRODUCT DIMENSIONS PART BUILDER 3.0 ± 0.2 AMDLA3020S-R22MT AMDLA3020S-R33MT AMDLA3020S-R47MT AMDLA3020S-R68MT AMDLA3020S-1R0MT AMDLA3020S-1R5MT AMDLA3020S-2R2MT AMDLA3020S-3R3MT AMDLA3020S-4R7MT AMDLA3020S-6R8MT AMDLA3020S-100MT Pb Shielded construction Soft saturation Low DCR per cubic mm Designed for switching frequencies between 100KHz-5MHz Automotive option available upon request • PART NUMBER* Check Inventory Request Samples 1.8 ± 0.2 *Refer to Electrical Specification table Front View Side View RECOMMENDED LANDING PATTERN 2.0 4.2 1.2 LLC Dimensions: mm Revised 09/16/19 AMDLA3020S MOLDED INDUCTOR LLC RECOMMENDED REFLOW PROFILE 3 Tp Tp Critical Zone TL to Tp Ramp Up Temperature TL TSMAX TL TSMIN Ramp Down Preheat 1 2 25 t 25˚C to Peak Time ZONE DESCRIPTION 1 Preheat 2 Reflow 3 Peak Heat LLC TEMPERATURE Tsmin ~ Tsmax 150°C ~ 180°C TL 230°C TP 250°C+0/-5°C TIMES 60 ~ 120 sec. 30 ~ 40 sec. 10 sec. MAX Revised 09/16/19 AMDLA3020S MOLDED INDUCTOR LLC PACKAGING Tape and Reel: 3,000 Units per Carton: 24,000 T&R per Carton: 8 Weight per Carton: 13.5 kg Weight per Unit: 0.45 g Carton Dimensions: 360 x 360 x 400 mm TYPE A B C D 13” x 12 mm 12.4 +2/-0 100.0 ± 0.5 13.0 +0.5/-0.2 330.0 B0 3.8 ± 0.1 A0 3.4 ± 0.1 K0 2.3 ± 0.1 P W F T D 8.0 ± 0.1 12.0 ± 0.3 5.5 ± 0.1 0.3 ± 0.05 1.5 Dimensions: mm This product is commercial off-the-shelf (COTS) and not specifically designed for automotive, military, aviation, aerospace, implantable, life-dependent medical or safety applications. This product is not recommended for use in any application requiring high reliability in which component failure could result in loss of life and/or property damage without prior written approval from Abracon. Specifications are subject to change without notice. Contact Abracon for more information. LLC Headquarters: 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 Revised 09/16/19
