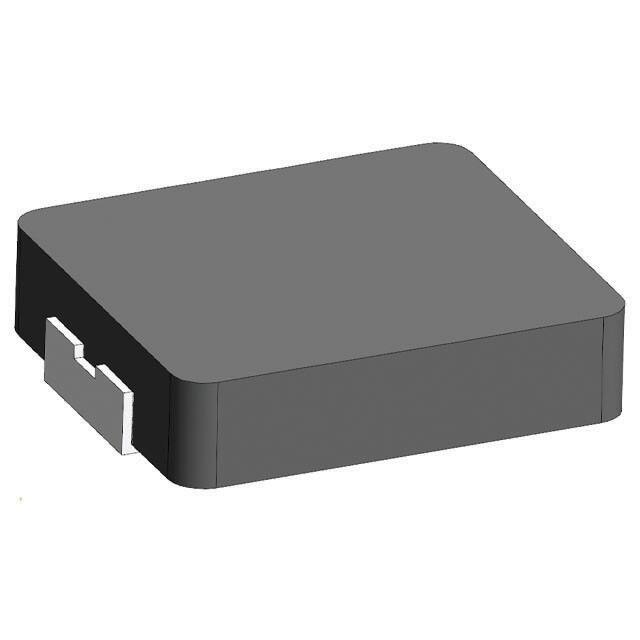

AMDLA4012S MOLDED INDUCTOR
LLC
FEATURES
•
ELECTRICAL SPECIFICATIONS @ 25°C
PART NUMBER*
INDUCTANCE
(uH)
TOLERANCE
(%)
IRMS
(A)
ISAT
(A)
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
20
20
20
20
20
20
20
20
10
8.8
6.0
5.2
4.2
3.5
2.8
2.2
14
13
9.0
7.8
6.2
5.5
4.5
3.2
AMDLA4012S-R33MT
AMDLA4012S-R47MT
AMDLA4012S-R68MT
AMDLA4012S-1R0MT
AMDLA4012S-1R5MT
AMDLA4012S-2R2MT
AMDLA4012S-3R3MT
AMDLA4012S-4R7MT
Pb
Shielded construction
Soft saturation
Low DCR per cubic mm
Designed for switching frequencies between
100KHz-5MHz
Automotive option available upon request
DC RESISTANCE
(mΩ)
TYP
MAX
12
16.8
19
36.5
54.5
72
97
119
14.5
20
23
43
62
80
111
143
ROHS
COMPLIANT
ISO
9001:2015
CERTIFIED
GENERAL
SPECIFICATIONS
TYPE
Lead Frame
Lead Frame
Lead Frame
Lead Frame
Lead Frame
Lead Frame
Lead Frame
Lead Frame
* Please refer to Part Identification section
Operating Temperature:
-55°C to +125°C with (40°C rise) Irms
current.
Maximum Part Temperature: +125°C
Components Storage Temperature:
-55°C to +125°C
Tape and Reel Packaging
Temperature: -20°C to +65°C
MSL: Level 1
Test Conditions
Inductance: 1 MHz, 1 V, 0 Adc
Humidity Range: 85 ± 2% RH
Temperature Rise Current: Current measured at Δ T of 40°C
Saturation Current: Current measured at Δ L of 30%
MATERIALS
PART BUILDER
PRODUCT DIMENSIONS
Core:
Wire:
Terminal:
Ink:
1R0
M
T
Series
Inductance*
Tol. 1
Packaging 2
1. Tolerance: M = 20%
2. Packaging: B = Bulk
T = Tape and Reel (4,000pcs/reel)
Top View
Bottom View
1.0 ± 0.2
*Refer to Electrical Specification table
0.76 ± 0.30
4.4 ± 0.2
4.0 ± 0.2
AMDLA4012S
Metal Alloy
Copper
Tin Plating
Black
Front View
Side View
RECOMMENDED LANDING PATTERN
2.3
4.95
2.16
LLC
Dimensions: mm
Revised 09/16/19
2.0 ± 0.2
•
•
•
•
Check Inventory
Request Samples
AMDLA4012S MOLDED INDUCTOR
LLC
RECOMMENDED REFLOW PROFILE
3
Tp
Tp
Critical Zone
TL to Tp
Ramp Up
Temperature
TL
TSMAX
TL
TSMIN
Ramp Down
Preheat
1
2
25
t 25˚C to Peak
Time
ZONE
DESCRIPTION
1
Preheat
2
Reflow
3
Peak Heat
LLC
TEMPERATURE
Tsmin ~ Tsmax
150°C ~ 180°C
TL
230°C
TP
250°C+0/-5°C
TIMES
60 ~ 120 sec.
30 ~ 40 sec.
10 sec. MAX
Revised 09/16/19
AMDLA4012S MOLDED INDUCTOR
LLC
PACKAGING
Tape and Reel:
4,000
Units per Carton: 32,000
T&R per Carton:
8
Weight per Carton: 13.5 kg
Weight per Unit:
0.34 g
Carton Dimensions: 360 x 360 x 400 mm
TYPE
A
B
C
D
13” x 12 mm
12.4 +2/-0
100.0 ± 0.5
13.0 +0.5/-0.2
330.0
B0
4.85 ± 0.10
A0
4.45 ± 0.10
K0
1.40 ± 0.10
P
W
F
T
D
8.00 ± 0.10
12.00 ± 0.30
5.50 ± 0.10
0.30 ± 0.05
1.50
Dimensions: mm
This product is commercial off-the-shelf (COTS) and not specifically designed for automotive, military, aviation, aerospace, implantable, life-dependent
medical or safety applications. This product is not recommended for use in any application requiring high reliability in which component failure could result
in loss of life and/or property damage without prior written approval from Abracon. Specifications are subject to change without notice. Contact Abracon for
more information.
