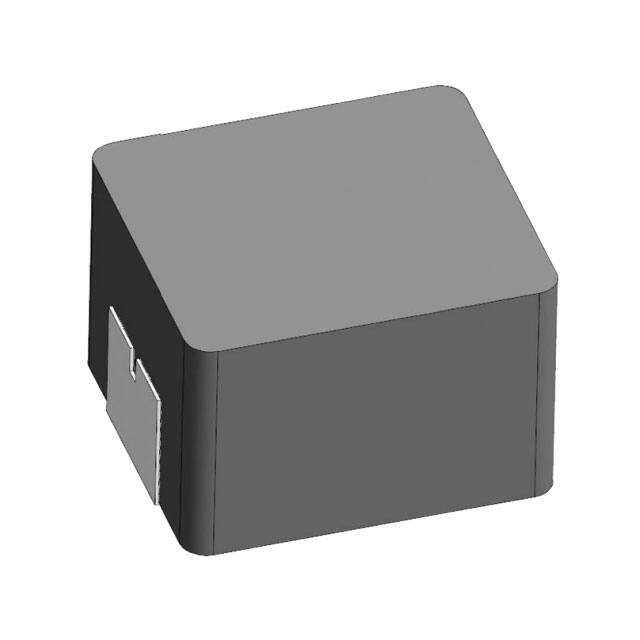

AMPLA7050S-220MT

AMPLA7050S MOLDED INDUCTOR LLC FEATURES • ELECTRICAL SPECIFICATIONS @ 25°C PART NUMBER* INDUCTANCE (uH) TOLERANCE (%) IRMS (A) ISAT (A) 0.40 0.47 0.56 0.60 0.68 0.82 1.0 1.2 1.5 2.2 3.3 4.7 5.6 6.8 8.2 10.0 22.0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 23 22 20 19 18 16.5 15 14 12 10 8 6.5 6 5.5 5 4 2.5 31 30 27 25 24 22 20 18 16.5 14 12 10 9.0 8.5 8.5 7.5 5.5 AMPLA7050S-R40MT AMPLA7050S-R47MT AMPLA7050S-R56MT AMPLA7050S-R60MT AMPLA7050S-R68MT AMPLA7050S-R82MT AMPLA7050S-1R0MT AMPLA7050S-1R2MT AMPLA7050S-1R5MT AMPLA7050S-2R2MT AMPLA7050S-3R3MT AMPLA7050S-4R7MT AMPLA7050S-5R6MT AMPLA7050S-6R8MT AMPLA7050S-8R2MT AMPLA7050S-100MT AMPLA7050S-220MT Pb Shielded construction Soft saturation High current density Designed for switching frequencies between 100KHz-2MHz Automotive option available upon request DC RESISTANCE (mΩ) TYP MAX 3.1 3.5 3.6 3.8 4.0 4.6 6.1 6.7 8.6 11.2 19.0 28.0 43.5 46.0 56.0 60.0 140 3.7 3.9 4.2 4.3 4.5 4.9 6.5 7.5 9.0 12.0 20.9 30.8 49.0 51.5 63.0 69.0 170.0 ROHS COMPLIANT ISO 9001:2015 CERTIFIED GENERAL SPECIFICATIONS TYPE Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame Lead Frame * Please refer to Part Identification section Test Conditions Inductance: 100 kHz, 1 V, 0 Adc Humidity Range: 85 ± 2% RH Temperature Rise Current: Current measured at ∆ T of 40°C Saturation Current: Current measured at ∆ L of 30% Operating Temperature: -55°C to +125°C with (40°C rise) Irms current. Maximum Part Temperature: +125°C Components Storage Temperature: -55°C to +125°C Tape and Reel Packaging Temperature: -55°C to +80°C MSL: Level 1 MATERIALS Core: Wire: Terminal: Ink: Paint: Carbonyl Powder Copper Tin Plating Black Gray PRODUCT DIMENSIONS 1.8 ± 0.3 Top View Bottom View PART BUILDER AMPLA7050S 1R0 M T Series Inductance* Tol. 1 Packaging 2 1. Tolerance: M = 20% 2. Packaging: B = Bulk T = Tape and Reel (800pcs/reel) 4.8 ± 0.2 6.6 ± 0.3 7.3 ± 0.3 Front View Side View RECOMMENDED LANDING PATTERN 8.4 3.5 *Refer to Electrical Specification table 2.5 Dimensions: mm LLC Revised 09/23/19 3.0 ± 0.3 • • • • Check Inventory Request Samples AMPLA7050S MOLDED INDUCTOR LLC RECOMMENDED REFLOW PROFILE 3 Tp Tp Critical Zone TL to Tp Ramp Up Temperature TL TSMAX TL TSMIN Ramp Down Preheat 1 2 25 t 25˚C to Peak Time ZONE DESCRIPTION 1 Preheat 2 Reflow 3 Peak Heat LLC TEMPERATURE Tsmin ~ Tsmax 150°C ~ 200°C TL 217°C TP 260°C TIMES 60 ~ 180 sec. 60 ~ 150 sec. 10 sec. MAX Revised 09/23/19 AMPLA7050S MOLDED INDUCTOR LLC PACKAGING Tape and Reel: 800 Units per Carton: 6,400 T&R per Carton: 8 Weight per Carton: 13.0 kg Weight per Unit: 1.25 g Carton Dimensions: 410 x 325 x 415 mm TYPE A B C D 13” x 16 mm 16.4 +2/-0 100.0 ± 2.0 13.0 +0.5/-0.2 330.0 B0 7.7 ± 0.1 A0 7.0 ± 0.1 K0 5.3 ± 0.1 P W F T D 12.0 ± 0.1 16.0 ± 0.3 7.5 ± 0.1 0.35 ± 0.05 1.5 ± 0.1 Dimensions: mm This product is commercial off-the-shelf (COTS) and not specifically designed for automotive, military, aviation, aerospace, implantable, life-dependent medical or safety applications. This product is not recommended for use in any application requiring high reliability in which component failure could result in loss of life and/or property damage without prior written approval from Abracon. Specifications are subject to change without notice. Contact Abracon for more information. LLC Headquarters: 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 Revised 09/23/19
