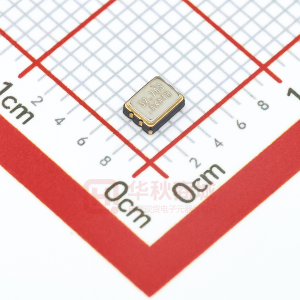

3.3Vdc CMOS COMPATIBLE SMD CRYSTAL CLOCK OSCILLATOR
ASE SERIES
Pb RoHS Compliant
APPLICATIONS: • Suitable for high density SMT • IR reflow capable • Tight stability option • CCD clock for VTR camera • Equipment connected to PC or PC cards • Thin equipment
3.2 X 2.5 X 1.1mm
|||||||||||||||
FEATURES: • Compact and low in height • Low current consumption • Tri state function
STANDARD SPECIFICATIONS:
PARAMETERS ABRACON P/N Frequency Range Operating Temperature Storage Temperature Overall Frequency Stability Supply Voltage (Vdd) Input Current Symmetry Rise and Fall Time (Tr/Tf) Output Load Output Voltage Tristate Function Peak to Peak Jitter RMS Jitter Stand-By Current
TABLE 1 - Input Current Idd max. Freq. Tr/Tf max (max. mA) (MHz) (nSec) ~ 30 MHz 10 10 max. ~ 75 MHz 15 10 max. ~ 133 MHz 20 10 max. ~ 200 MHz 10 max. 25
ASE Series 0.625 ~ 200 MHz -10°C to + 70°C (See Options) -55°C to + 100°C ± 100 ppm max. (See Options) 3.3 V ± 5% See Table 1 45/55% @ 50%Vdd See Table 1 15 pF max VOH = 0.9* Vdd min. VOL = 0.1* Vdd max. "1" (VIH >= 2.2 Vdc) or open: Oscillation "0" (VIL < 0.8 Vdc) : Hi Z 28ps (Typical) * 3.6ps (Typical) * 10 µA max.
* = Reference only; Contact Abracon for Jitter values
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ASE - Frequency Overall Frequency Stability ±20ppm J(*) ±25ppm R ±30ppm K ±35ppm H C
B ±40ppm ±50ppm
Temp options I, D, and E only
-
Packaging Blank T Bulk Tape and Reel
Operating Temp. Range 0°C to +50°C I -10°C to +60°C D -20°C to +70°C E -30°C to +70°C F -30°C to +85°C N -40°C to +85°C L
Contact ABRACON for wider temperature range.
ABRACON IS ISO 9001 / QS 9000 CERTIFIED
Visit www.abracon.com for Terms & Conditions of Sale Revised: 12.28.07 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
3.3Vdc CMOS COMPATIBLE SMD CRYSTAL CLOCK OSCILLATOR
ASE SERIES
Pb RoHS Compliant
3.2 X 2.5 X 1.1mm
|||||||||||||||
OUTLINE DRAWING:
Dimensions: Inches (mm)
It is recommended to use an approximately 0.01uF bypass capacitor between PIN 2 and PIN 4.
PI N 1 2 3 4
FUNCTION Tri-state GND/Case Output Vdd
Note: The outline package configuration varies with frequency range. Electrical properties, pin configuration, and land pattern are the same.
TAPE & REEL
Dimensions: mm
ABRACON IS ISO 9001 / QS 9000 CERTIFIED
Visit www.abracon.com for Terms & Conditions of Sale Revised: 12.28.07 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
