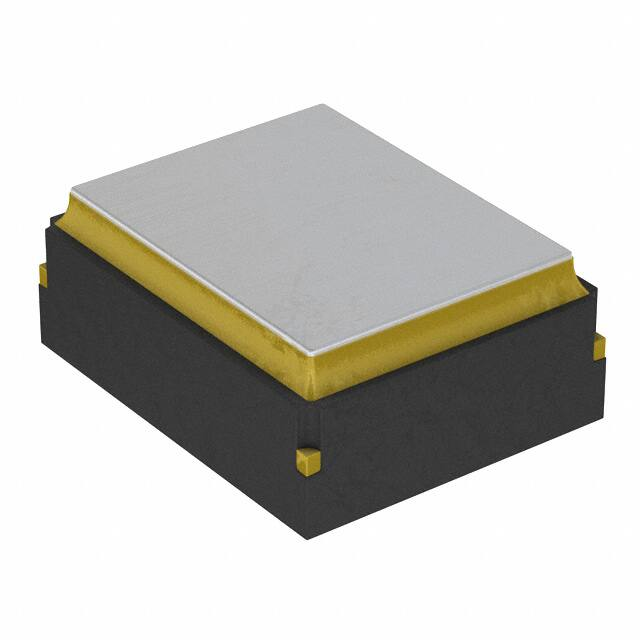

High Performance Low Jitter SMD XO ASG2-LJ ESD Sensitive Moisture Sensitivity Level (MSL) – 1 FEATURES: • LVCMOS, LVDS or LVPECL output option • +2.5V or +3.3V operation • -40°C to +85°C standard operating temperature range • Ultra low RMS Jitter: 0.5ps typical, 1.0ps max (12kHz to 20MHz BW) • Miniature size 2.5 x 2.0 x 1.0 mm Ceramic SMT Package • Short lead time STANDARD SPECIFICATIONS: Parameters Minimum Operating Temperature Storage Temperature Overall Frequency Stability Initial Tolerance + Stability over operating temperature Vdd = 3.3V Supply Voltage (Vdd) Vdd = 2.5V Enable/Disable Function : Phase jitter RMS (12kHz to 20MHz BW) Typical Pb RoHS / RoHS II Compliant 2.5 x 2.0 x 1.0 mm APPLICATIONS: • Networking • SONET/SDH • WiMax / WLAN • Computing • Phase Locked Loops • Direct Digital Synthesis (DDS) • DSL/ADSL • Base Terminal Stations Maximum Units Notes -40 -55 -50 +85 +125 +50 °C °C ppm See Note # 1 -35.00 +35.00 ppm 3.135 3.300 3.465 2.375 2.500 2.625 "1" (VIH ≥ 0.7*Vdd) or Open: Oscillation "0" (VIL < 0.3*Vdd) : High Z 0.5 1 V V ps Note #1: Inclusive of initial tolerance at 25ºC±3ºC, operating temperature range, input voltage variation, load variation & 15 years aging at 25ºC. Key Electrical Specifications – LVCMOS Parameters Frequency Range Supply Current (Idd) Output Logic Level Rise Time Fall Time Duty Cycle O ut p u t Lo ad Minimum 8 VOH VOL Tr Tf Typical 0.9*Vdd 48 50 Minimum 8 Typical Maximum 200 40 0.1*Vdd 3 3 52 15 Units Notes MHz mA V I=±6mA V ns 10% to 90% ns % pF Key Electrical Specifications – LVDS Parameters Frequency Range Supply Current (Idd) Differential Output Voltage Swing Duty Cycle Rise Time Tr Fall Time Tf 350 45 Key Electrical Specifications – LVPECL Parameters Frequency Range Supply Current (Idd) Output Logic Level Duty Cycle Rise Time Fall Time Minimum 8 VOH VOL Vdd - 1.025 45 Tr Tf LLC Typical Maximum 1500 40 55 600 600 Maximum 1500 65 Vdd – 1.62 55 600 600 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com Units MHz mA mV % ps Notes Freq. dependent @1.25V RL=100Ω/CL=10pF Units MHz mA V V % ps Notes Freq. dependent 50Ω nominal load @Vdd-1.3V 20% to 80% ABRACON IS REVISED: 08-31-20 ISO9001-2015 CERTIFIED High Performance Low Jitter SMD XO ASG2-LJ ESD Sensitive Pb RoHS / RoHS II Compliant 2.5 x 2.0 x 1.0 mm TEST CIRCUIT LVCMOS Output: LVDS Output: LVPECL Output: LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 08-31-20 ISO9001-2015 CERTIFIED High Performance Low Jitter SMD XO ASG2-LJ ESD Sensitive Pb RoHS / RoHS II Compliant 2.5 x 2.0 x 1.0 mm OPTIONS & PART IDENTIFICATION: ASG2 - LJ - MHz - Frequency See Table below for available frequencies - Configuration Code See Table below for available configurations Packaging Blank = Bulk Cut/Tape T = Tape & Reel Table of Available Configurations Frequency (MHz) Freq. Stability Over Temperature (ppm) Operating Temperature (°C) Supply Voltage (V) Output Type 100 ±35 -40 to +85 3.3 LVPECL 125 ±35 -40 to +85 3.3 LVPECL 125 ±35 -40 to +85 2.5 LVPECL 156.25 ±35 -40 to +85 3.3 LVPECL 156.25 ±35 -40 to +85 2.5 LVPECL 200 ±35 -40 to +85 3.3 LVPECL 212.5 ±35 -40 to +85 3.3 LVPECL 250 ±35 -40 to +85 3.3 LVPECL 312.5 ±35 -40 to +85 3.3 LVPECL ASG2-LJ285.000MHz516733 285 ±35 -40 to +85 3.3 LVPECL ASG2-LJ400.000MHz513288 400 ±35 -40 to +85 3.3 LVPECL Abracon P/N ASG2-LJ100.000MHz513259 ASG2-LJ125.000MHz513280 ASG2-LJ125.000MHz513281 ASG2-LJ156.250MHz513282 ASG2-LJ156.250MHz513283 ASG2-LJ200.000MHz513284 ASG2-LJ212.500MHz513285 ASG2-LJ250.000MHz513286 ASG2-LJ312.500MHz513287 LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 08-31-20 ISO9001-2015 CERTIFIED High Performance Low Jitter SMD XO ASG2-LJ ESD Sensitive Pb RoHS / RoHS II Compliant 2.5 x 2.0 x 1.0 mm OPTIONS & PART IDENTIFICATION: Table of Available Configurations (continued) Abracon P/N ASG2-LJ1000.000MHz513289 ASG2-LJ100.000MHz513290 ASG2-LJ125.000MHz513291 ASG2-LJ156.250MHz513292 ASG2-LJ200.000MHz513293 ASG2-LJ212.500MHz513294 ASG2-LJ250.000MHz513295 ASG2-LJ312.500MHz513296 ASG2-LJ400.000MHz513297 ASG2-LJ100.000MHz513298 ASG2-LJ125.000MHz513299 ASG2-LJ156.250MHz513300 ASG2-LJ200.000MHz513301 ASG2-LJ1500.000MHz515410 Frequency (MHz) Freq. Stability Over Temperature (ppm) Operating Temperature (°C) Supply Voltage (V) Output Type 1000 ±35 -40 to +85 3.3 LVPECL 100 ±35 -40 to +85 2.5 LVDS 125 ±35 -40 to +85 2.5 LVDS 156.25 ±35 -40 to +85 2.5 LVDS 200 ±35 -40 to +85 2.5 LVDS 212.5 ±35 -40 to +85 2.5 LVDS 250 ±35 -40 to +85 2.5 LVDS 312.5 ±35 -40 to +85 2.5 LVDS 400 ±35 -40 to +85 2.5 LVDS 100 ±35 -40 to +85 2.5 LVCMOS 125 ±35 -40 to +85 2.5 LVCMOS 156.25 ±35 -40 to +85 2.5 LVCMOS 200 ±35 -40 to +85 2.5 LVCMOS ±50 -40 to +85 3.3 LVPECL 1500 LLC (Including 10-year aging) 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 08-31-20 ISO9001-2015 CERTIFIED High Performance Low Jitter SMD XO ASG2-LJ Pb ESD Sensitive RoHS / RoHS II Compliant 2.5 x 2.0 x 1.0 mm OUTLINE DIMENSION: Top View Recommended Land Pattern Bottom View Pin # LVCMOS LVDS/LVPECL 1 Output Enable (OE) 2 No Connect (N/C) 3 GND 4 RF Output 5 Side View Pin Description No Connect (N/C) 6 Complimentary Output Vdd Dimensions: mm RECOMMENDED REFLOW PROFILE LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 08-31-20 ISO9001-2015 CERTIFIED High Performance Low Jitter SMD XO ASG2-LJ ESD Sensitive Pb RoHS / RoHS II Compliant 2.5 x 2.0 x 1.0 mm TAPE & REEL: T= Tape and reel (3,000pcs/reel) Dimensions: mm Dimensions: mm ATTENTION: Abracon LLC products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 08-31-20 ISO9001-2015 CERTIFIED
